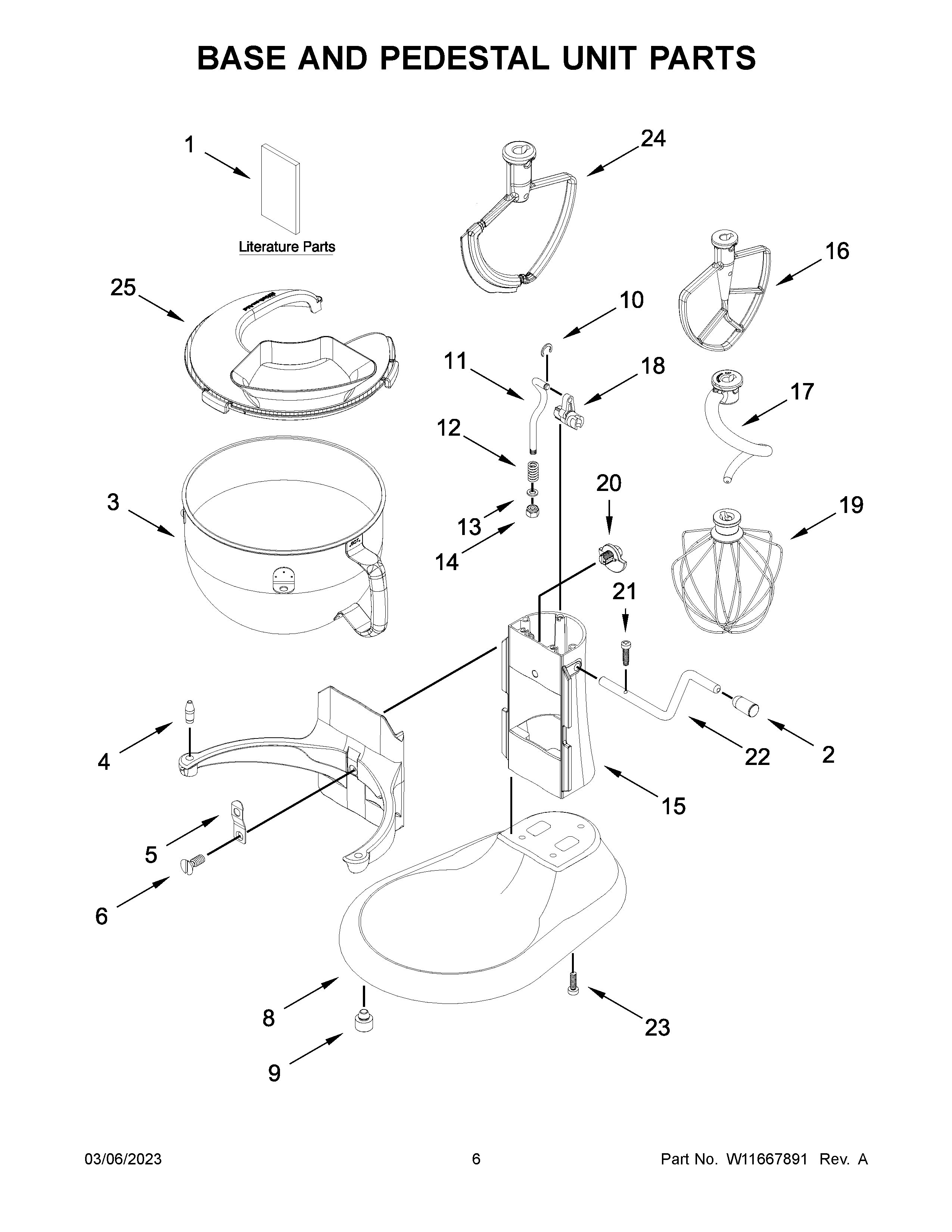

KSM60SECXER0 04 – BASE AND PEDESTAL UNIT PARTS

KSM60SECXER0 04 – BASE AND PEDESTAL UNIT PARTS

Written by

in

KSM60SECXER0 04 – BASE AND PEDESTAL UNIT PARTS

Products

PositionProduct
1USE AND CARE GUIDE
2CAP, HANDLE
3BOWL, 6 QUART (BRUSHED)
4WP240185 Whirlpool Bowl Retaining Pin
5WPW10504114 Whirlpool Clip
6W10861883 Whirlpool Screw
9WP9708649 Whirlpool Foot
10WP9703307 Whirlpool Ring-C Assembly
11W11376364 Whirlpool Lift Rod
124159622 Whirlpool PP Spring
13Washer
148533907 Whirlpool Dishwasher Nut
15CABINET (NOT A SERVICEABLE PART)
16W11646967 Whirlpool Mixer Beater
17W11646968 Whirlpool Dough Hook
18WP9706885 Whirlpool Lift Arm Assembly
19WP9703491 Whirlpool Wire Whip
20Cam, Adjusting
21WP3400814 Whirlpool Screw
22W11376371 Whirlpool Handle Assembly
23W10913677 Whirlpool Screw
24W10778038 Whirlpool Mixer Beater
25SHIELD, POURING (WIDE)
