KSM6521XOB0 02 – COLOR VARIATION PARTS

KSM6521XOB0 02 – COLOR VARIATION PARTS

Written by

in

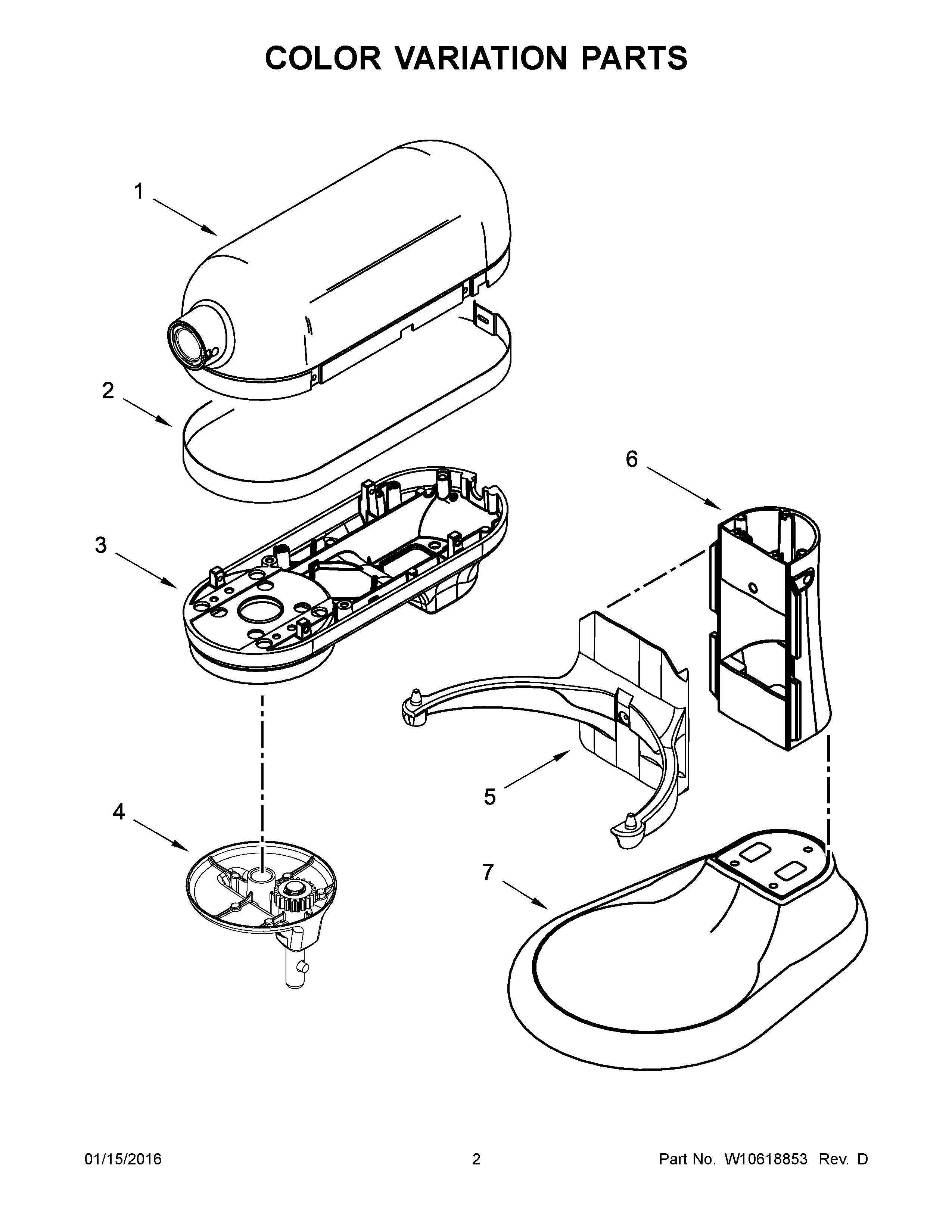

KSM6521XOB0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1BMOTOR HOUSING (FROSTED PEARL)
1DMOTOR HOUSING (IMPERIAL WHITE)
1F9708711 Whirlpool Housing
1CWPW10354887 Whirlpool Housing
1EW10520271 Whirlpool Housing
19705296 Whirlpool Housing
1AWPW10403016 Whirlpool Housing
2TRIM BAND (DARK PLATINUM)
3ELOWER GEARCASE (SUGAR PEARL)
3DLOWER GEARCASE (IMPERIAL WHITE)
3CW10354882 Whirlpool Gearcase
3W10410015 Whirlpool Gearcase
3BW10454060 Whirlpool Gearcase
3AW10403006 Whirlpool Gearcase Assembly
3FLOWER GEARCASE (DARK PEWTER/SLATE)
4WPW10410018 Whirlpool Planetary Assembly
4CWPW10354883 Whirlpool Planetary Gear
4DPLANETARY (IMPERIAL WHITE)
4FPLANETARY (DARK PEWTER/SLATE)
4AWPW10403008 Whirlpool Planetary Assembly
4BW10520287 Whirlpool Planetary Mixer
4EW10520266 Whirlpool Planetary Mixer
5EW10520248 Whirlpool Support Assembly
5DBOWL SUPPORT AND PINS (IMPERIAL WHITE)
5F9708722 Whirlpool Support Assembly
5AWPW10402998 Whirlpool Support
5CWPW10354878 Whirlpool Support
59705356 Whirlpool Support
5BBOWL SUPPORT AND PINS (FROSTED PEARL)
6FWPL 9708725
6EWPL W10520205
6DWPL W10736993
6BCOLUMN AND PINS (FROSTED PEARL)
69705320 Whirlpool Column
6CWPW10354872 Whirlpool Column Assembly
6AWPW10402992 Whirlpool Column Assembly
79705344 Whirlpool Base
7AWPW10402986 Whirlpool Base Assembly
7BBASE AND FOOT ASSEMBLY (FROSTED PEARL)
7CWPW10354860 Whirlpool Base Assembly
7DWPL W10736995
7EWPL W10520258
7F9708728 Whirlpool Base Assembly
