KSM6573CCU0 03 – BASE AND PEDESTAL UNIT
Written by
in

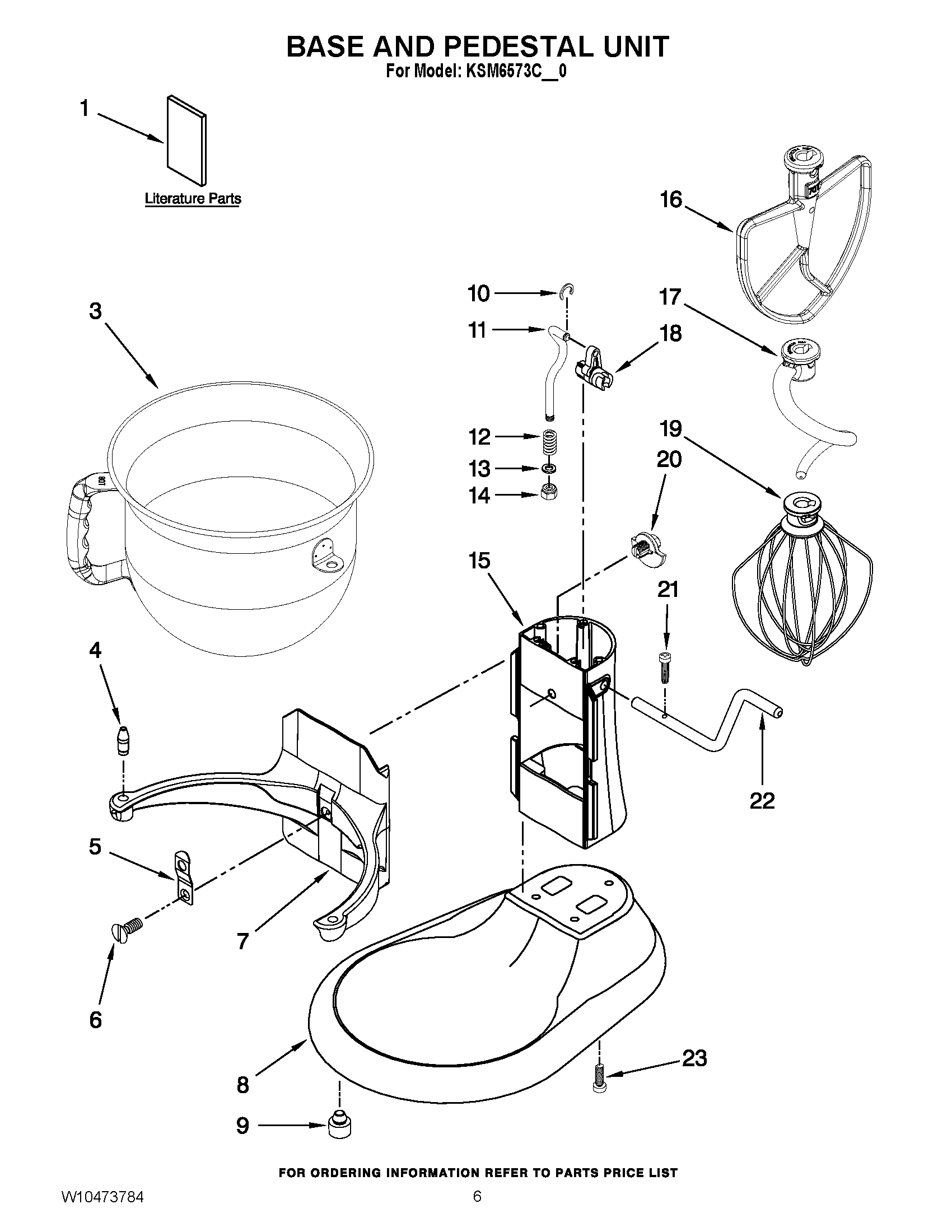

KSM6573CCU0 03 – BASE AND PEDESTAL UNIT
Products
Position
Product
1
USE & CARE GUIDE
1
REPAIR PARTS LIST
3
W11350316 Whirlpool Mixer Bowl
4
WP240185 Whirlpool Bowl Retaining Pin
5
WPW10504114 Whirlpool Clip
6
W10861883 Whirlpool Screw
9
WP9708649 Whirlpool Foot
10
WP9703307 Whirlpool Ring-C Assembly
11
W11376364 Whirlpool Lift Rod
12
4159622 Whirlpool PP Spring
13
Washer
14
8533907 Whirlpool Dishwasher Nut
15
CABINET (NOT A SERVICEABLE PART)
16
BEATER, FLAT
17
W10846380 Whirlpool Beater
18
WP9706885 Whirlpool Lift Arm Assembly
19
WPW10731415 Whirlpool Stand Mixer Wire Whip
20
Cam, Adjusting
21
WP3400814 Whirlpool Screw
22
W11376371 Whirlpool Handle Assembly
23
W10913677 Whirlpool Screw
←
