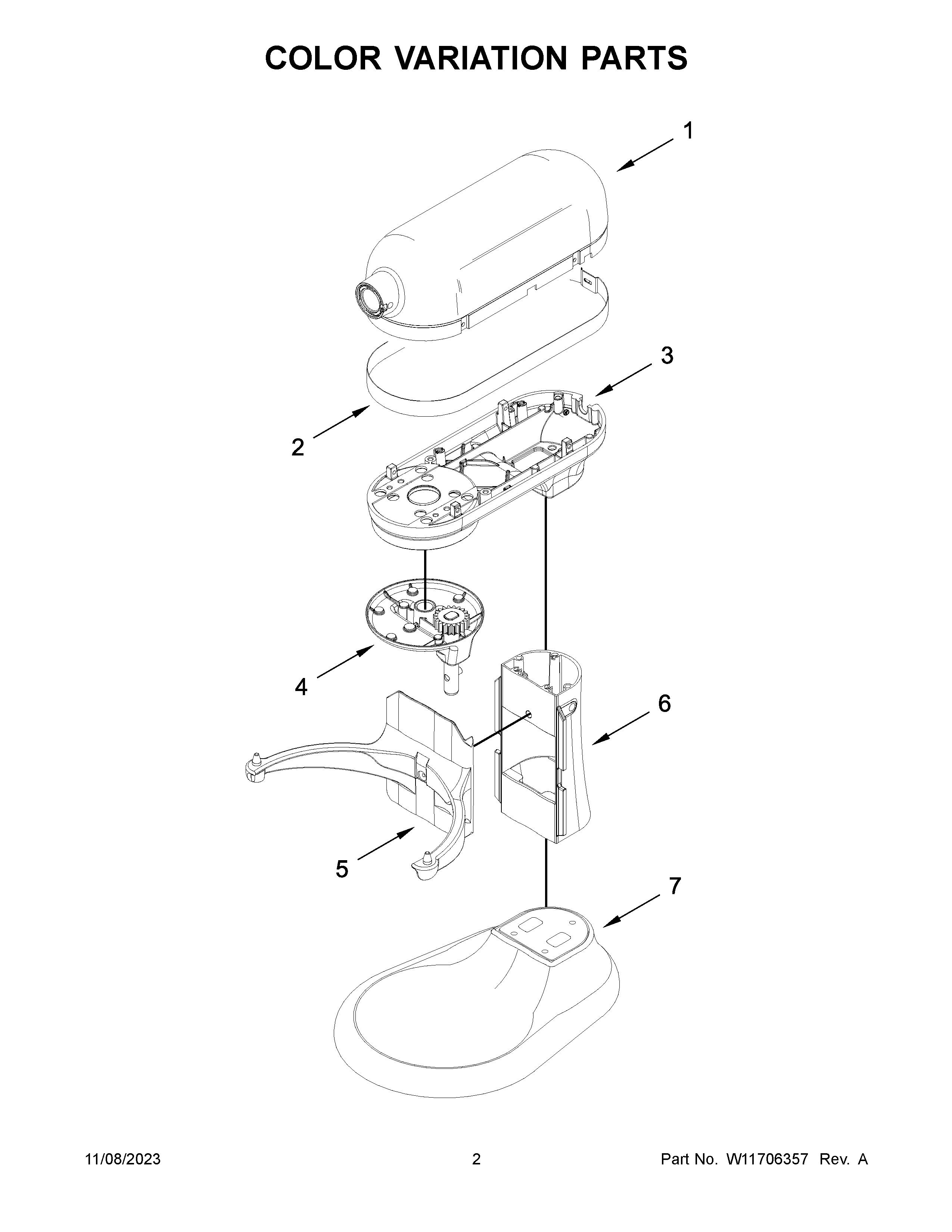

KSM70SKQXBK0 02 – COLOR VARIATION PARTS

Products

Position	Product
1B	W10327951 Whirlpool Housing
1D	MOTOR HOUSING (FEATHER PINK)
1E	MOTOR HOUSING (MINERAL WATER BLUE)
1F	MOTOR HOUSING (PORCELAIN WHITE)
1H	MOTOR HOUSING (BLUE VELVET)
1	MOTOR HOUSING (BEETROOT)
1G	MOTOR HOUSING (PISTACHIO)
1A	9703532 Whirlpool Housing Assembly
1C	9705300 Whirlpool Housing Assembly
2	TRIM BAND (BRIGHT ALUMINUM)
3F	LOWER GEARCASE (PORCELAIN WHITE)
3H	LOWER GEARCASE (BLUE VELVET)
3A	LOWER GEARCASE (CAST IRON BLACK/IMPERIAL BLACK)
3G	LOWER GEARCASE (PISTACHIO)
3	LOWER GEARCASE (BEETROOT)
3C	LOWER GEARCASE (EMPIRE RED)
3B	W11520143 Whirlpool Gearcase
3D	LOWER GEARCASE (FEATHER PINK)
3E	LOWER GEARCASE (MINERAL WATER BLUE)
4	PLANETARY (SILENT SILVER)
5A	BOWL SUPPORT-Imperial Black
5C	9705360 Whirlpool Support Assembly
5	BOWL SUPPORT AND PINS (BEETROOT)
5H	BOWL SUPPORT AND PINS (BLUE VELVET)
5F	BOWL SUPPORT AND PINS (PORCELAIN WHITE)
5D	BOWL SUPPORT AND PINS (FEATHER PINK)
5E	BOWL SUPPORT AND PINS (MINERAL WATER BLUE)
5G	BOWL SUPPORT AND PINS (PISTACHIO)
5B	WPL W10327966
6A	COLUMN-Imperial Black
6H	WPL W11255413
6C	9705324 Whirlpool Column Assembly
6B	W10328003 Whirlpool Column Assembly
6G	COLUMN AND PINS (PISTACHIO)
6E	WPL W11520107
6	COLUMN AND PINS (BEETROOT)
6D	WPL W11520109
6F	WPL W11691229
7G	BASE AND FOOT ASSEMBLY (PISTACHIO)
7D	WPL W11520054
7B	WPL W10328017
7C	9705348 Whirlpool Base
7A	Base And Foot Assembly (Imperial Black)
7E	WPL W11520052
7F	WPL W11691226
7H	WPL W11255409
7	WPL W11691198
