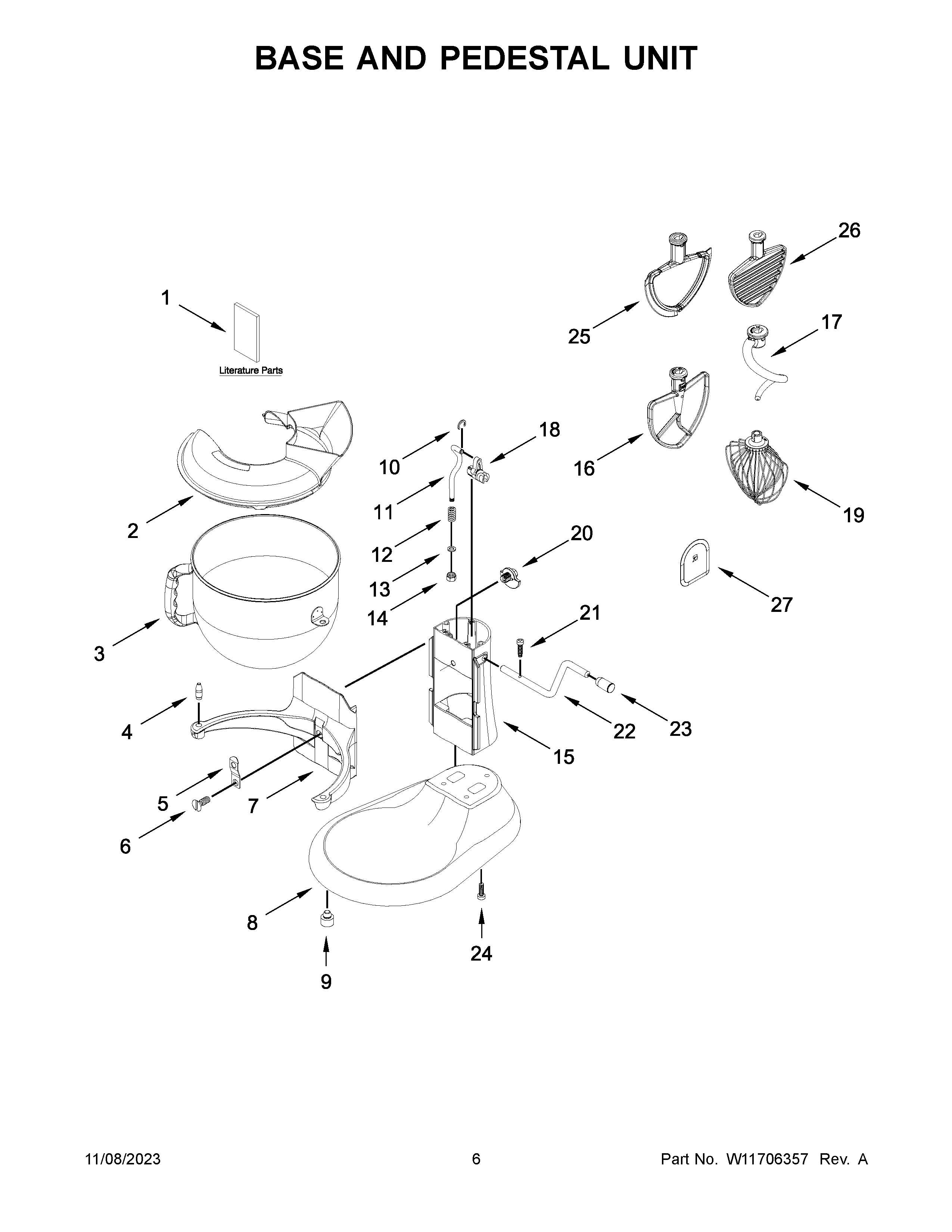

KSM70SKQXBK0 04 – BASE AND PEDESTAL UNIT

Products

Position	Product
1	USE AND CARE GUIDE
2	SHIELD, POURING (WIDE)
3	BOWL, 7 QT. (BRUSHED)
4	WP240185 Whirlpool Bowl Retaining Pin
5	WPW10504114 Whirlpool Clip
6	W10861883 Whirlpool Screw
7	BOWL SUPPORT (REFER TO COLOR VARIATION PARTS PAGE)
8	BASE AND FOOT ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE)
9	WP9708649 Whirlpool Foot
10	WP9703307 Whirlpool Ring-C Assembly
11	W11376364 Whirlpool Lift Rod
12	4159622 Whirlpool PP Spring
13	Washer
14	8533907 Whirlpool Dishwasher Nut
15	COLUMN ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE)
16	W11646967 Whirlpool Mixer Beater
17	W11646968 Whirlpool Dough Hook
18	WP9706885 Whirlpool Lift Arm Assembly
19	WPW10600940 Whirlpool Wire Whip
20	Cam, Adjusting
21	WP3400814 Whirlpool Screw
22	W11376371 Whirlpool Handle Assembly
23	CAP, HANDLE
24	W10913677 Whirlpool Screw
25	BEATER, DOUBLE FLEX EDGE (SILENT SILVER)
26	BEATER, PASTRY (SILENT SILVER)
27	SCRAPER, POT (NYLON)
