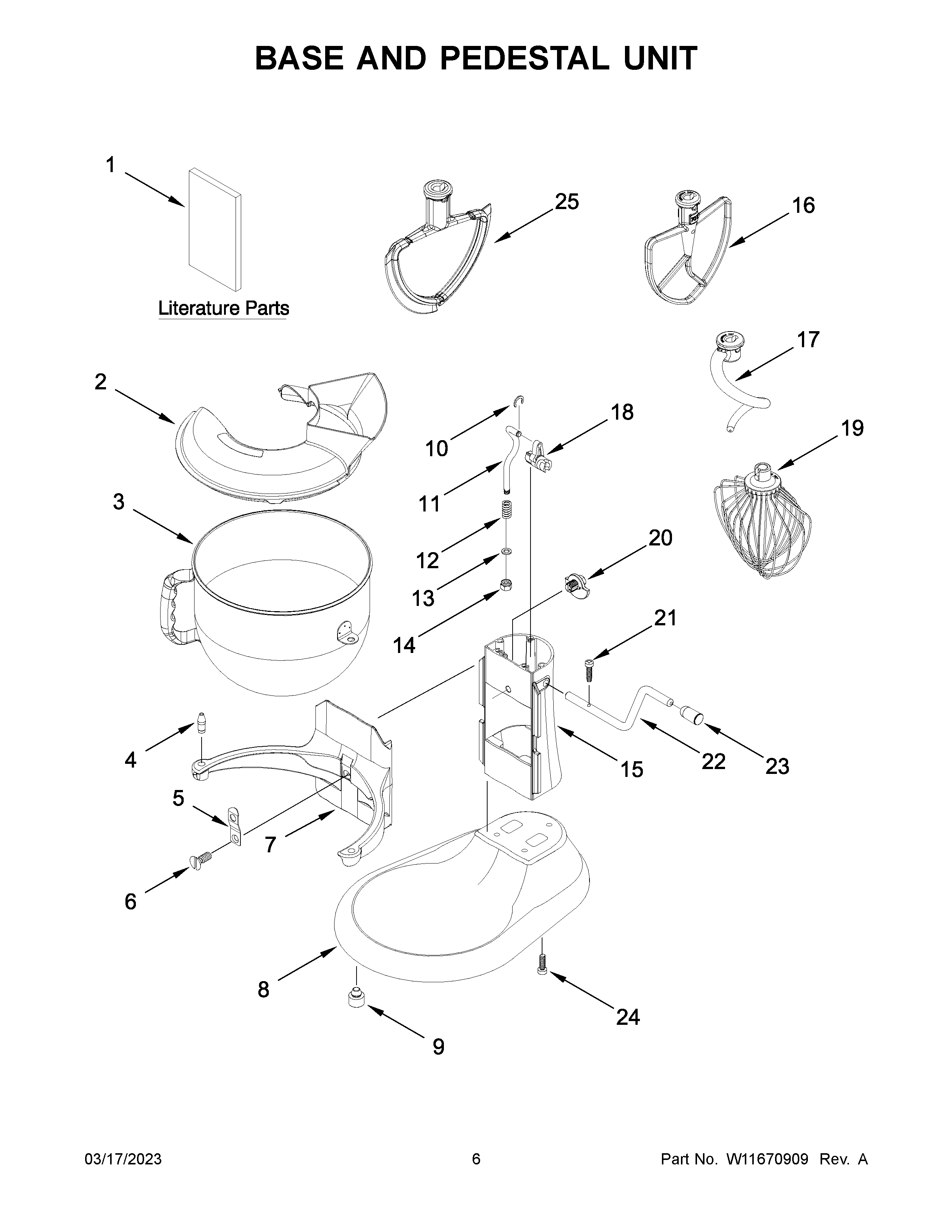

KSM70SKXXBS0 04 – BASE AND PEDESTAL UNITadmin2025-04-26T11:01:24+00:00KSM70SKXXBS0 04 – BASE AND PEDESTAL UNIT ProductsPositionProduct1USE AND CARE GUIDE2SHIELD, POURING (WIDE)3BOWL, 7 QT. (BRUSHED)4WP240185 Whirlpool Bowl Retaining Pin5WPW10504114 Whirlpool Clip6W10861883 Whirlpool Screw9WP9708649 Whirlpool Foot10WP9703307 Whirlpool Ring-C Assembly11W11376364 Whirlpool Lift Rod124159622 Whirlpool PP Spring13Washer148533907 Whirlpool Dishwasher Nut15CABINET (NOT A SERVICEABLE PART)16W11646967 Whirlpool Mixer Beater17W11646968 Whirlpool Dough Hook18WP9706885 Whirlpool Lift Arm Assembly19WPW10600940 Whirlpool Wire Whip20Cam, Adjusting21WP3400814 Whirlpool Screw22W11376371 Whirlpool Handle Assembly23CAP, HANDLE24W10913677 Whirlpool Screw25BEATER, DOUBLE FLEX EDGE (SILENT SILVER)
