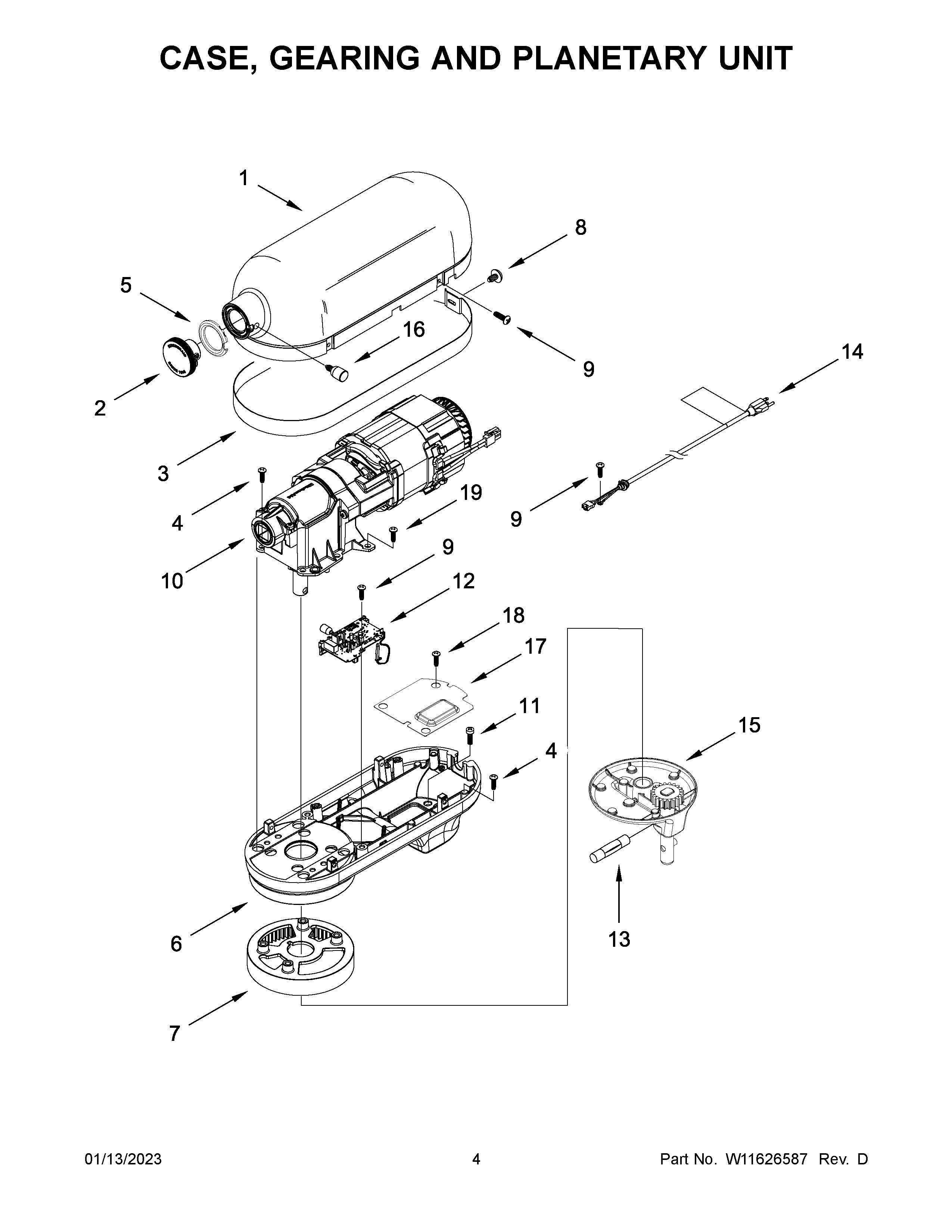

KSM70SNDXCU0 03 – CASE, GEARING AND PLANETARY UNIT

Products

PositionProduct
2COVER, ATTACHMENT HUB – DUAL FINISH
4W10914506 Whirlpool Screw
5WP9703315 Whirlpool Hub Cap
7GEAR, RING AND PLATE ASSEMBLY
8W10853069 Whirlpool Screw
9WP3400814 Whirlpool Screw
10W11647949 Whirlpool Motor
11W10913677 Whirlpool Screw
12W11677161 Whirlpool Speed Control
13WPW10234531 Whirlpool Dishwasher Groove Pin
14CORD, POWER (BLACK)
15CABINET (NOT A SERVICEABLE PART)
16THUMB SCREW (CHROME)
17PLATE, LOWER HOUSING
18SCREW
19SCREW
