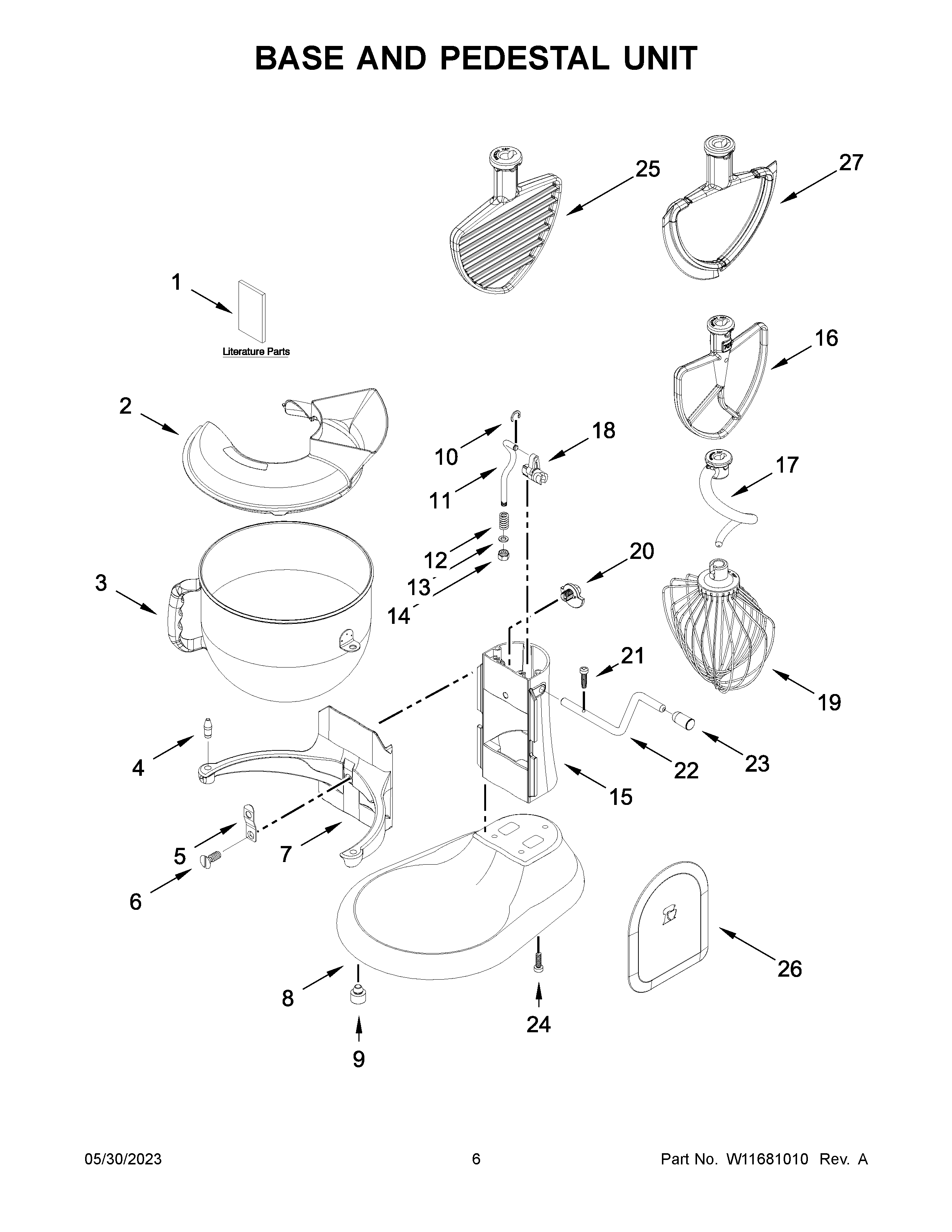

KSM70SNDXVB0 04 – BASE AND PEDESTAL UNIT

KSM70SNDXVB0 04 – BASE AND PEDESTAL UNIT

Products

PositionProduct
1USE AND CARE GUIDE
2SHIELD, POURING (WIDE)
3BOWL, 7 QT. (BRUSHED)
4WP240185 Whirlpool Bowl Retaining Pin
5WPW10504114 Whirlpool Clip
6W10861883 Whirlpool Screw
9WP9708649 Whirlpool Foot
10WP9703307 Whirlpool Ring-C Assembly
11W11376364 Whirlpool Lift Rod
124159622 Whirlpool PP Spring
13Washer
148533907 Whirlpool Dishwasher Nut
15CABINET (NOT A SERVICEABLE PART)
16W11458649 Whirlpool Mixer Beater
17W11397072 Whirlpool Mixer Dough Hook
18WP9706885 Whirlpool Lift Arm Assembly
19WPW10600940 Whirlpool Wire Whip
20Cam, Adjusting
21WP3400814 Whirlpool Screw
22W11376371 Whirlpool Handle Assembly
23CAP, HANDLE
24W10913677 Whirlpool Screw
25BEATER, PASTRY (STAINLESS)
26SCRAPER, POT (NYLON)
27BEATER, DOUBLE FLEX EDGE (SILENT SILVER)
