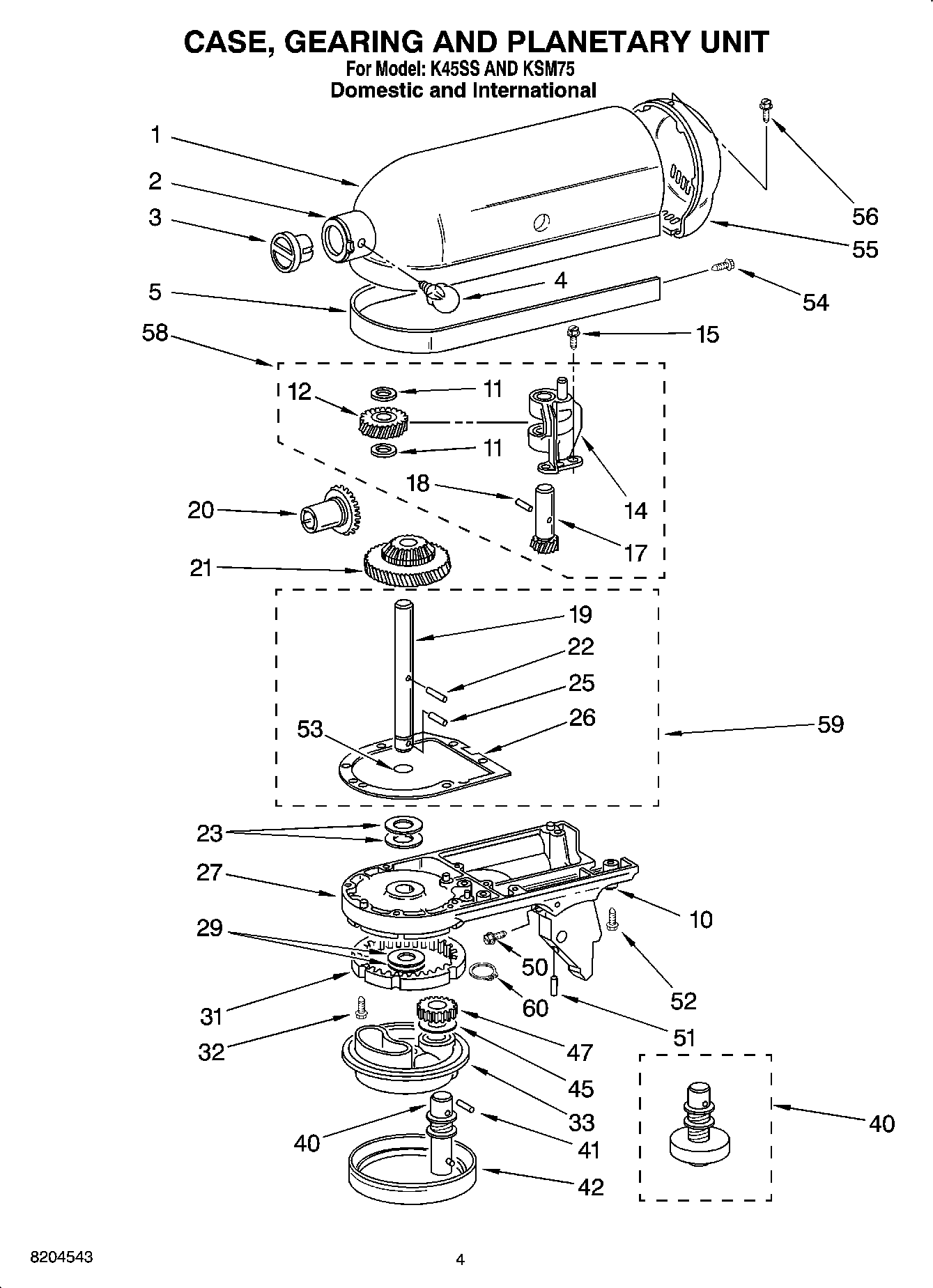

KSM75 04 – CASE, GEARING AND PLANETARY

Products

Position	Product
1	Motor Housing (White)
1	Motor Housing (Almond Creme)
2	WP16897 Whirlpool Bearing
3	Cap, Attachment Hub
4	WP9709194 Whirlpool Black Thumb Screw
5	W11092112 Whirlpool Trim Band
5	9706916 Whirlpool Trim Band
5	TRIM BAND-K45SS-3
5	W10859323 Whirlpool Band Trim
10	WP8533914 Whirlpool Lock
11	WPW10323373 Whirlpool Washer
12	WPW10112253 Whirlpool Gear Assembly
14	W11082541 Whirlpool Bearing
15	W11097298 Whirlpool Dishwasher Screw
17	WP240210-2 Whirlpool Worm Gear
18	WP9705444 Whirlpool Pin Groove
19	WP240026 Whirlpool Control Shaft
20	Gear, Attachment Hub Bevel (23T)
21	W11192794 Whirlpool HUB Gear
25	WP9705443 Whirlpool Pin Groove
26	WP4162324 Whirlpool Case Gasket
27	LOWER GEARCASE-White
27	LOWER GEARCASE (ALMOND CREME)
29	WPW10323378 Whirlpool Washer
31	W11340106 Whirlpool Gear Assembly
32	Screw, Special (5)
33	PLANETARY-White
33	Planetary (Almond Creme)
40	WP243368 Whirlpool Agitator Shaft
41	Pin (Vertical Center Shaft)
42	WP240285 Whirlpool Drip Ring
45	Washer, Shim (.015`` Thk.) (.031`` Thk.)
47	W11133645 Whirlpool Pinion Gear
50	W11028216 Whirlpool Screw
51	WP3400203 Whirlpool Screw
52	WP3400025 Whirlpool Screw
53	O RING
54	WP313808 Whirlpool Screw
55	END COVER-White
55	End Cover (Almond Creme)
56	WP241877 Whirlpool Screw
58	GEAR-WORM
59	4160474 Whirlpool Control Shaft
60	WP9703438 Whirlpool Snap Retaining Ring
