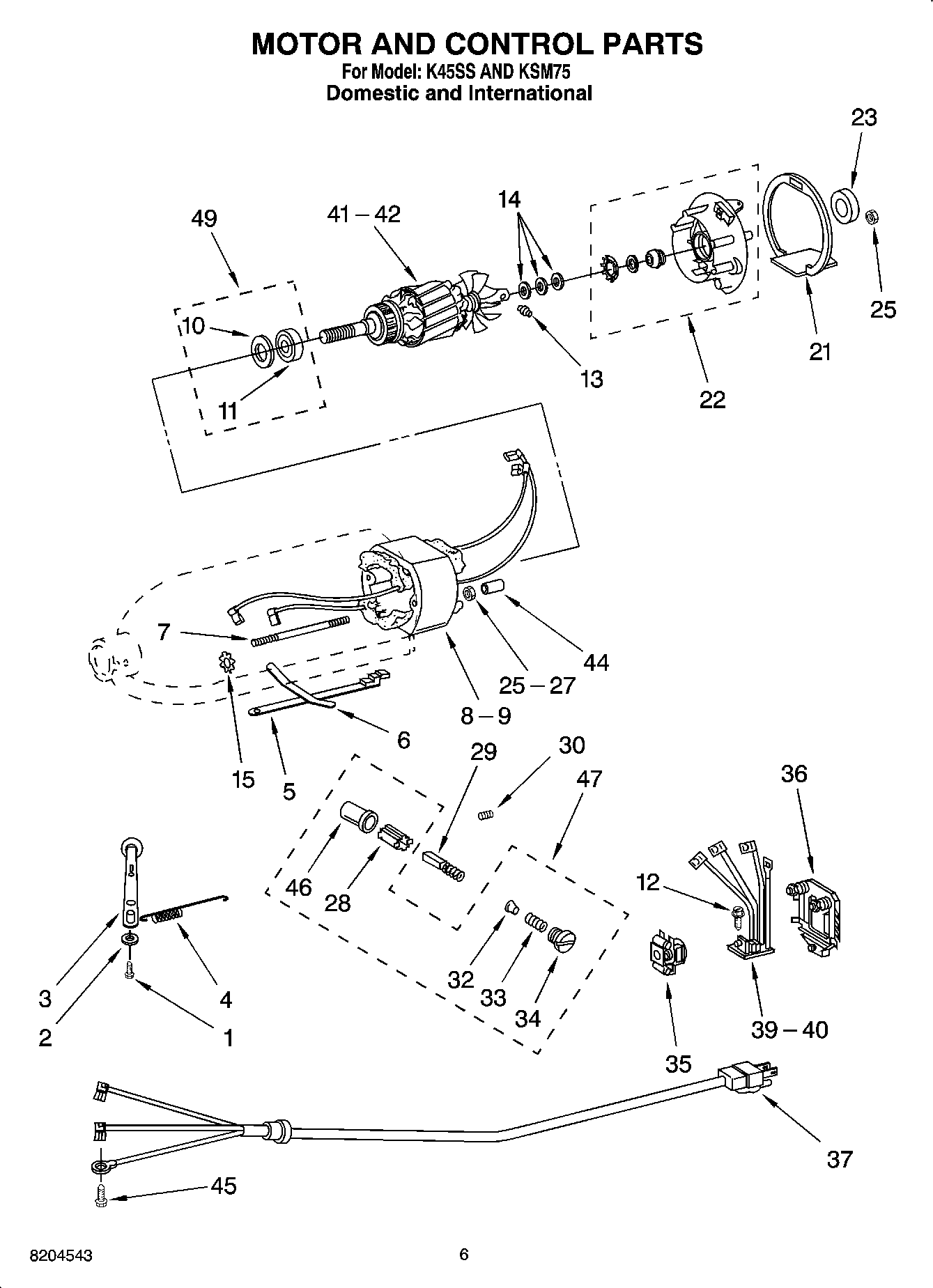

KSM75 05 – MOTOR AND CONTROL

Products

Position	Product
1	WP110679 Whirlpool Screw
2	WP116241 Whirlpool Washer
3	WP9709276 Whirlpool Speed Control Lever
4	WP3183680 Whirlpool Spring
5	Speed Link & Cam
6	WP240205 Whirlpool Spring
7	W10851015 Whirlpool Stat Screw
8	W10870869 Whirlpool Field Assembly
9	WPW10417246 Whirlpool Field Assembly
10	WP9704324 Whirlpool Washer
11	W11133634 Whirlpool Armature
12	W11084238 Whirlpool Screw Assembly
13	WP16998 Whirlpool Drive Stud
14	W11233557 Whirlpool Washer
15	W11170663 Whirlpool Washer
21	SEAL, END
22	WP3180526 Whirlpool Bearing Bracket
23	WASHER
25	8533905 Whirlpool Nut
27	Lock Washer No.10 Ext. Shake- proof
28	W11656718 Whirlpool Insert
29	WPW10380496 Whirlpool Stand Mixer Motor Brush
30	W11176201 Whirlpool Screw
32	WP116286 Whirlpool Spring Cap
33	WP116287 Whirlpool Spring Cap
34	WP3184211 Whirlpool Brush Cap
34	WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
34	3184213 Whirlpool Brush Cap
35	WPW10330804 Whirlpool Speed Governor
36	Control Plate Assembly
37	W10706734 Whirlpool Power Cord
37	Cord & Plug 110 Volt (Cord & Plug (220 Volts))
37	W11545825 Whirlpool Power Cord
37	W11396625 Whirlpool Power Cord
39	WPW10325124 Whirlpool Phase Board
40	W11174552 Whirlpool Stand Mixer Phase Board
41	Armature & Bearing Incls. Illus 11) (Must use with Illus. 8)
42	ARMATURE/BEARING
44	W11210996 Whirlpool Sleeve
45	Screw
46	WP3179908 Whirlpool Brush Holder
47	4162546 Whirlpool Brush Holder
49	Bowl Cover, Plastic Non-Sealing
49	Bowl,
49	WPL 3180617
49	SAUSAGE STUFFER KIT (SSA)
49	67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
49	ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
49	Grain Mill (GM-A)
49	PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
49	W11312468 Whirlpool Pour Shelf
49	W10802058 Whirlpool Mixer Bowl
49	FOOD GRINDER (FG-A)
49	JUICER (JE)
49	CAN OPENER (CO)
49	Food Tray (FT)
49	PASTA MAKER PLATES (SNPA)
49	FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
49	FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
49	WPL 4176025
