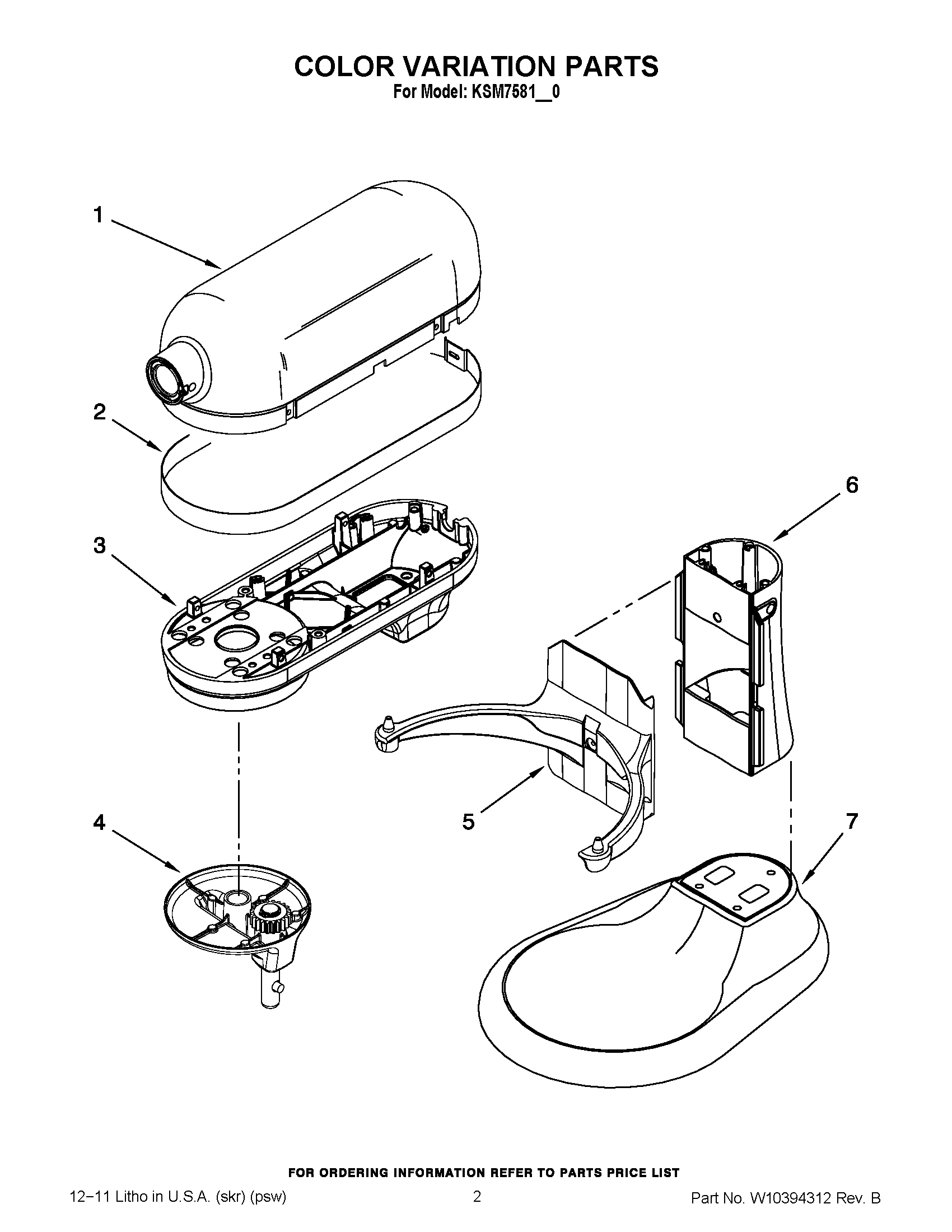

KSM7581WH0 01 – COLOR VARIATION PARTS

KSM7581WH0 01 – COLOR VARIATION PARTS

Written by

in

KSM7581WH0 01 – COLOR VARIATION PARTS

Products

PositionProduct
19703311 Whirlpool Housing Assembly
1WPW10403017 Whirlpool Housing
1WPW10403016 Whirlpool Housing
1WPW10354887 Whirlpool Housing
2W10234515 Whirlpool Trim Band
3LOWER GEARCASE (WHITE)
3W10354882 Whirlpool Gearcase
3WPW10403005 Whirlpool Gearcase
3W10403006 Whirlpool Gearcase Assembly
4WPW10354883 Whirlpool Planetary Gear
4WPW10403009 Whirlpool Planetary Assembly
4WPW10403008 Whirlpool Planetary Assembly
4WPW10420628 Whirlpool Planetary Mixer
5WPW10354878 Whirlpool Support
5WPW10402998 Whirlpool Support
5WPW10402999 Whirlpool Support
59703674 Whirlpool Support
69703673 Whirlpool Column
6WPW10402993 Whirlpool Column
6WPW10402992 Whirlpool Column Assembly
6WPW10354872 Whirlpool Column Assembly
79703690 Whirlpool Base
7WPW10402987 Whirlpool Base
7WPW10354860 Whirlpool Base Assembly
7WPW10402986 Whirlpool Base Assembly
