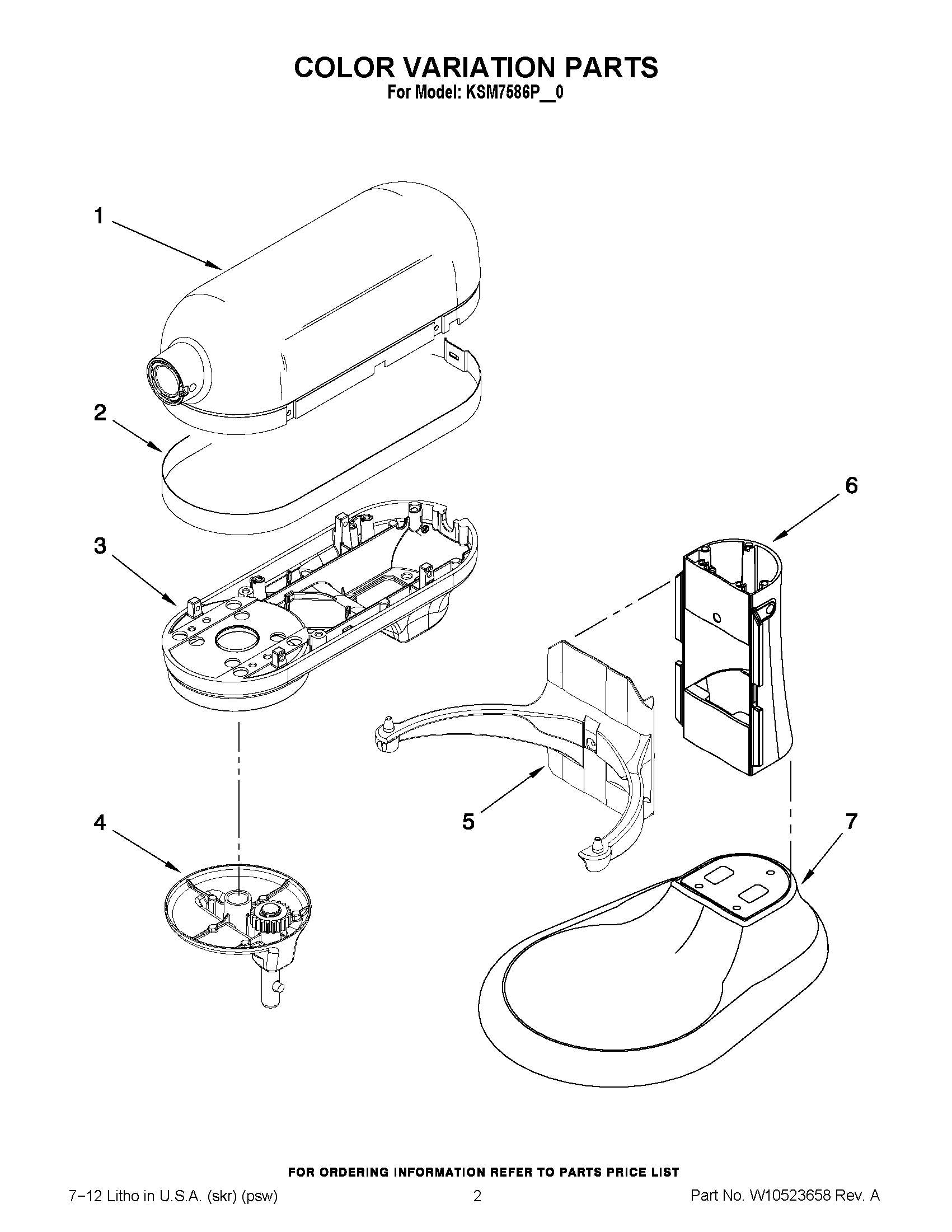

KSM7586PCA0 01 – COLOR VARIATION PARTS

KSM7586PCA0 01 – COLOR VARIATION PARTS

Written by

in

KSM7586PCA0 01 – COLOR VARIATION PARTS

Products

PositionProduct
1MOTOR HOUSING (FROSTED PEARL)
19705296 Whirlpool Housing
1WPW10354887 Whirlpool Housing
1W10520271 Whirlpool Housing
1WPW10403016 Whirlpool Housing
2W10234515 Whirlpool Trim Band
3W10403006 Whirlpool Gearcase Assembly
3W10454060 Whirlpool Gearcase
3LOWER GEARCASE (SUGAR PEARL)
3W10354882 Whirlpool Gearcase
3W10410015 Whirlpool Gearcase
4WPW10354883 Whirlpool Planetary Gear
4WPW10410018 Whirlpool Planetary Assembly
4WPW10403008 Whirlpool Planetary Assembly
4W10520287 Whirlpool Planetary Mixer
4W10520266 Whirlpool Planetary Mixer
5BOWL SUPPORT AND PINS (FROSTED PEARL)
59705356 Whirlpool Support
5W10520248 Whirlpool Support Assembly
5WPW10354878 Whirlpool Support
5WPW10402998 Whirlpool Support
69705320 Whirlpool Column
6WPW10402992 Whirlpool Column Assembly
6WPL W10520205
6WPW10354872 Whirlpool Column Assembly
6COLUMN AND PINS (FROSTED PEARL)
7WPW10354860 Whirlpool Base Assembly
79705344 Whirlpool Base
7BASE AND FOOT ASSEMBLY (FROSTED PEARL)
7WPW10402986 Whirlpool Base Assembly
7WPL W10520258
