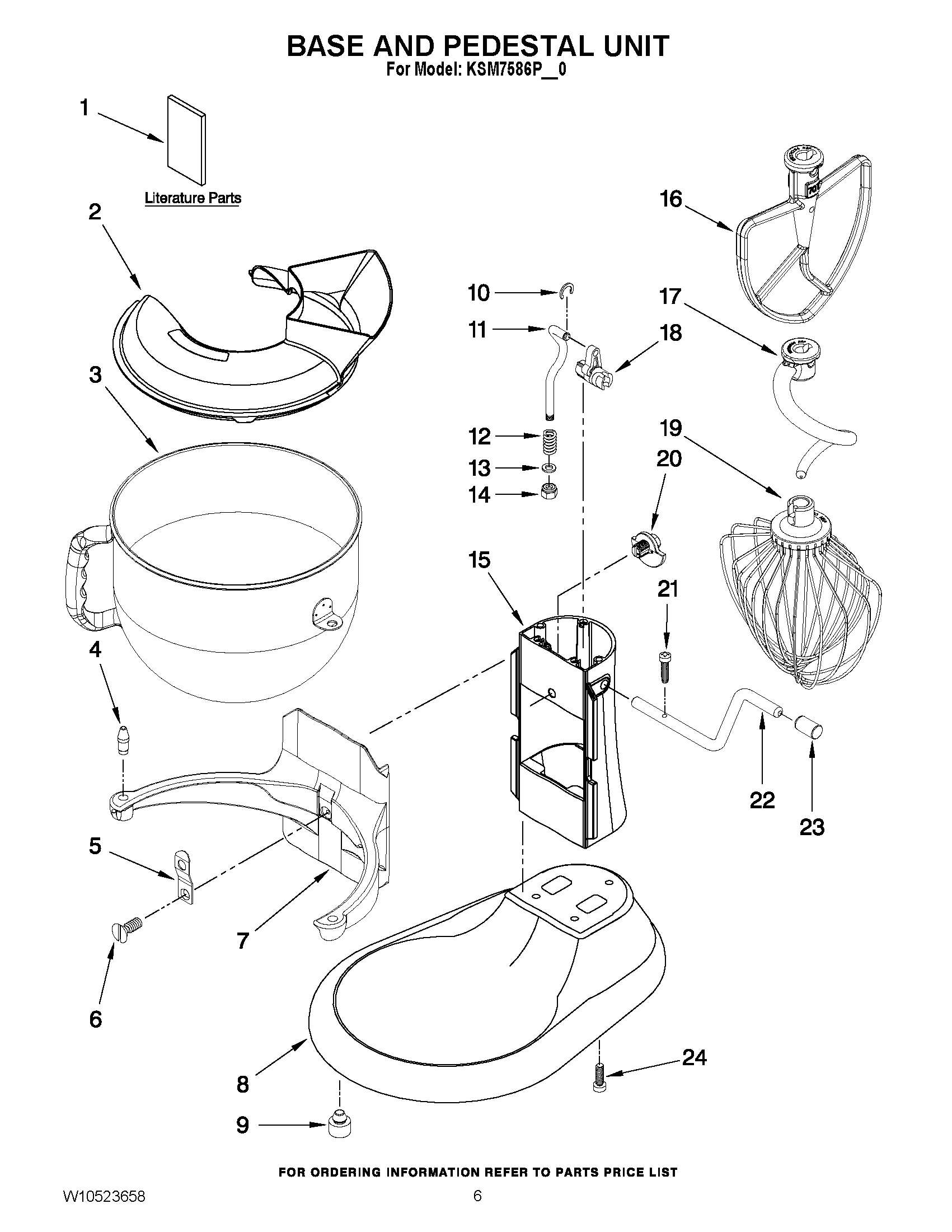

KSM7586PMS0 03 – BASE AND PEDESTAL UNITadmin2025-04-26T11:03:45+00:00KSM7586PMS0 03 – BASE AND PEDESTAL UNIT ProductsPositionProduct1REPAIR PARTS LIST1USE & CARE GUIDE2WPW10617049 Whirlpool Pour Shelf3WPW10354778 Whirlpool Mixer Bowl4WP240185 Whirlpool Bowl Retaining Pin5WPW10504114 Whirlpool Clip6W10861883 Whirlpool Screw9WP9708649 Whirlpool Foot10WP9703307 Whirlpool Ring-C Assembly11W11376364 Whirlpool Lift Rod124159622 Whirlpool PP Spring13Washer148533907 Whirlpool Dishwasher Nut15CABINET (NOT A SERVICEABLE PART)16W11050806 Whirlpool Mixer Beater17W10674615 Whirlpool Dough Hook18WP9706885 Whirlpool Lift Arm Assembly19WPW10600940 Whirlpool Wire Whip20Cam, Adjusting21WP3400814 Whirlpool Screw22W11376371 Whirlpool Handle Assembly23W11501449 Whirlpool Handle Assembly24W10913677 Whirlpool Screw
