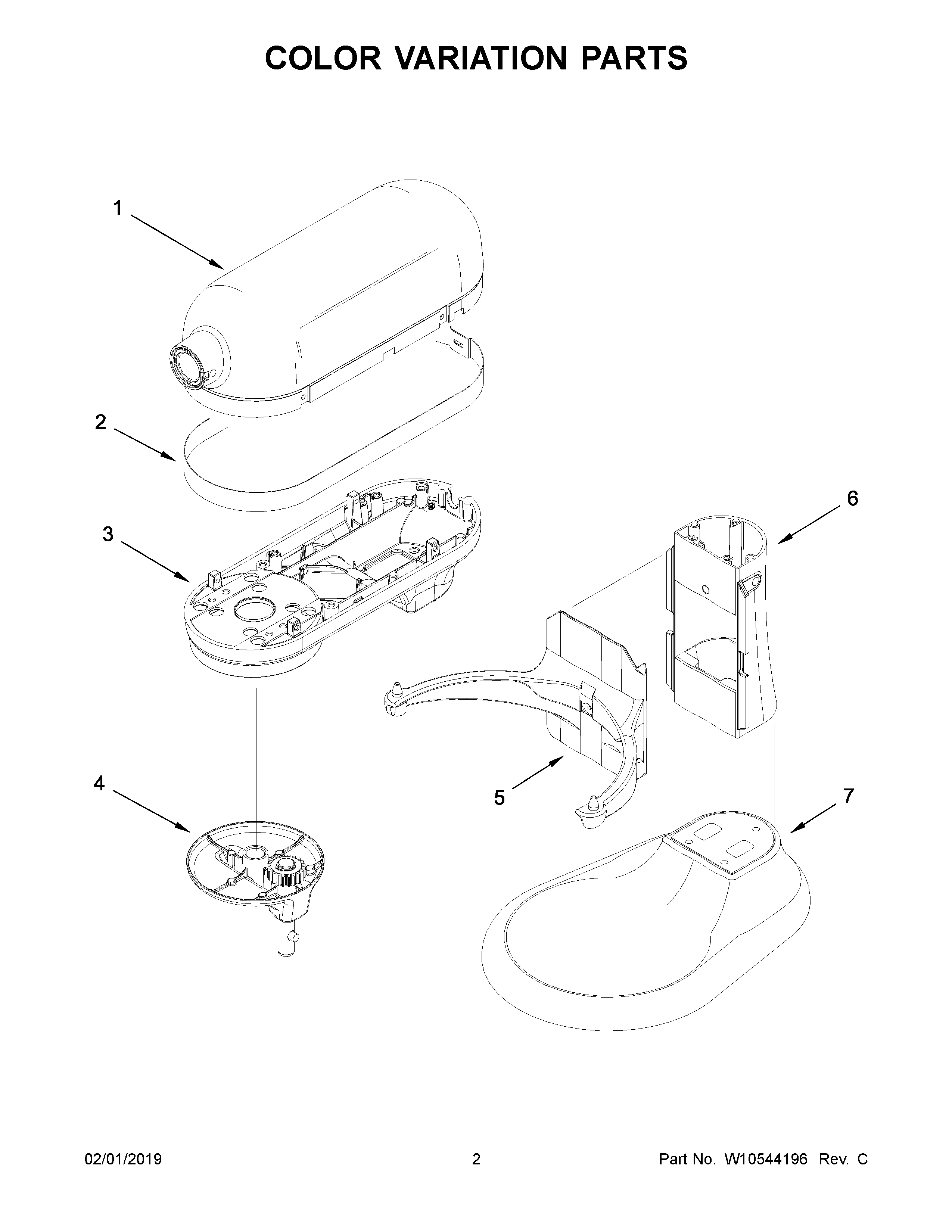

KSM7586PSR1 02 – COLOR VARIATION PARTS

KSM7586PSR1 02 – COLOR VARIATION PARTS

Written by

in

KSM7586PSR1 02 – COLOR VARIATION PARTS

Products

PositionProduct
1BWPW10354887 Whirlpool Housing
1D9705296 Whirlpool Housing
1CMOTOR HOUSING (MERLOT)
1WPW10403016 Whirlpool Housing
1AMOTOR HOUSING (FROSTED PEARL)
1EW10520271 Whirlpool Housing
2W10234515 Whirlpool Trim Band
3EW10520261 Whirlpool Gearcase
3DW10410015 Whirlpool Gearcase
3BW10354882 Whirlpool Gearcase
3AW10454060 Whirlpool Gearcase
3W10403006 Whirlpool Gearcase Assembly
3CLOWER GEARCASE (MERLOT)
4BWPW10354883 Whirlpool Planetary Gear
4DWPW10410018 Whirlpool Planetary Assembly
4EW10520266 Whirlpool Planetary Mixer
4WPW10403008 Whirlpool Planetary Assembly
4AW10520287 Whirlpool Planetary Mixer
4CPLANETARY (MERLOT)
5BWPW10354878 Whirlpool Support
5CBOWL SUPPORT AND PINS (MERLOT)
5ABOWL SUPPORT AND PINS (FROSTED PEARL)
5WPW10402998 Whirlpool Support
5D9705356 Whirlpool Support
5EW10520248 Whirlpool Support Assembly
6ACOLUMN AND PINS (FROSTED PEARL)
6EWPL W10520205
6BWPW10354872 Whirlpool Column Assembly
6WPW10402992 Whirlpool Column Assembly
6CCOLUMN AND PINS (MERLOT)
6D9705320 Whirlpool Column
7D9705344 Whirlpool Base
7EWPL W10520258
7BWPW10354860 Whirlpool Base Assembly
7ABASE AND FOOT ASSEMBLY (FROSTED PEARL)
7WPW10402986 Whirlpool Base Assembly
7CWPL W10602446
