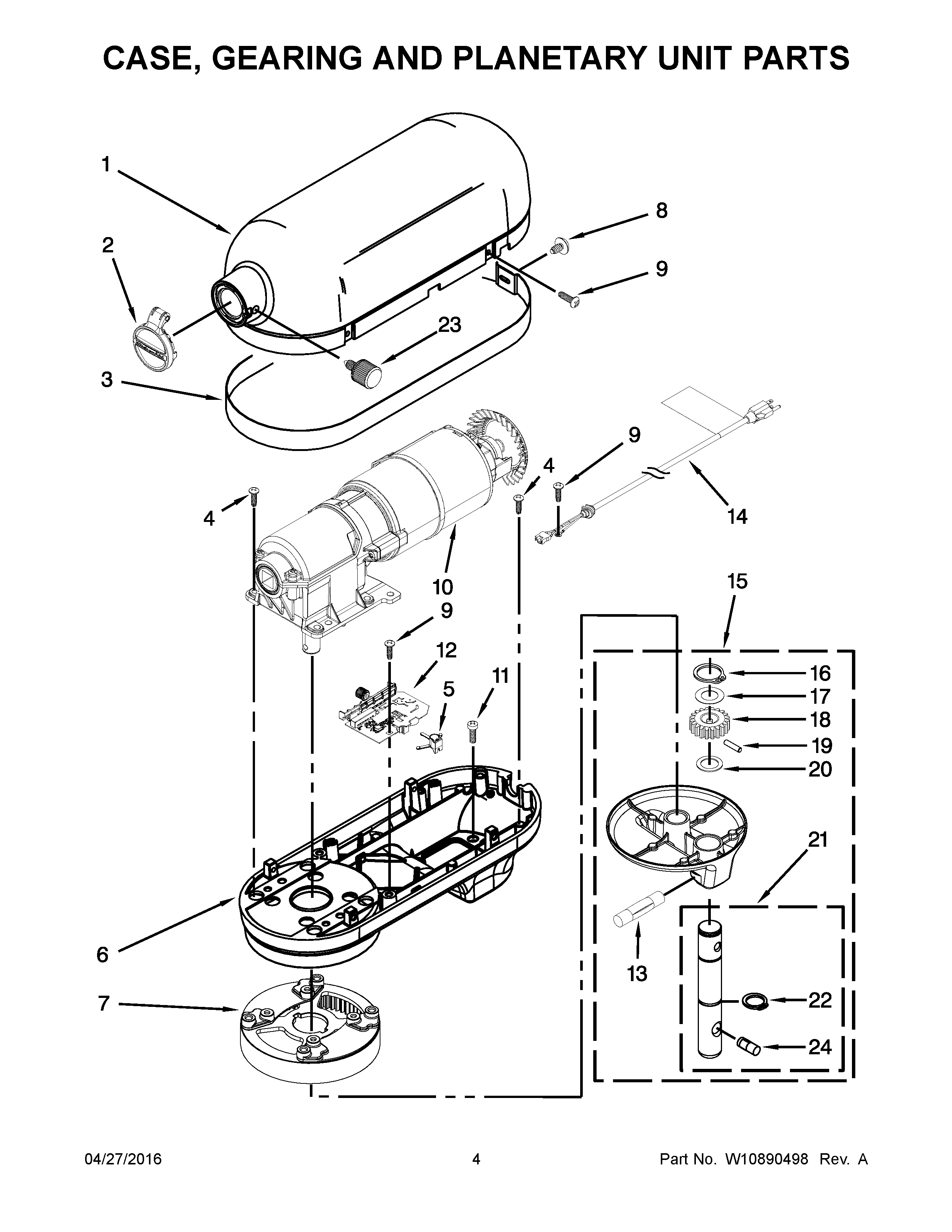

KSM7589PBK0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

Position	Product
2	W10715478 Whirlpool Hub Cap
4	W10914506 Whirlpool Screw
5	WPW10305968 Whirlpool Holder
7	GEAR, RING AND PLATE ASSEMBLY
8	W10853069 Whirlpool Screw
9	WP3400814 Whirlpool Screw
10	WPW10517938 Whirlpool Motor Assembly
11	W10913677 Whirlpool Screw
12	CONTROL ASSEMBLY, 120 VOLT
13	WPW10234531 Whirlpool Dishwasher Groove Pin
14	W11197466 Whirlpool Power Cord
15	CABINET (NOT A SERVICEABLE PART)
16	WP9703438 Whirlpool Snap Retaining Ring
17	WP9706090 Whirlpool Washer
18	WPW10234643 Whirlpool Gear Assembly
19	WP9707223 Whirlpool Dowel Pin
20	W10854966 Whirlpool Washer
21	WP9708191 Whirlpool Agitator Shaft
22	WP9703680 Whirlpool Retainer Ring
23	THUMB SCREW (PEARL NICKEL)
24	W11664709 Whirlpool Groove Pin
