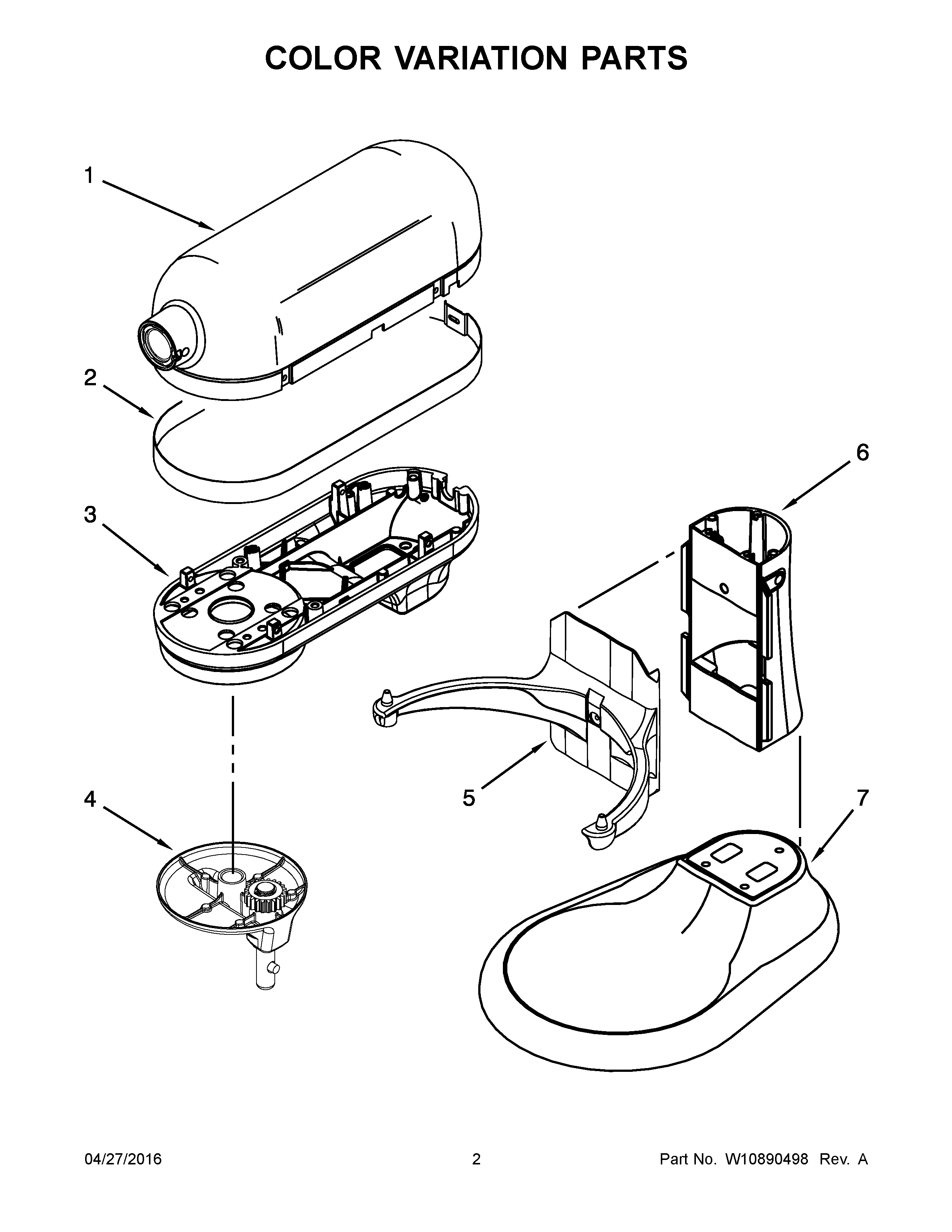

KSM7589PNK0 02 – COLOR VARIATION PARTS

Products

PositionProduct
19703532 Whirlpool Housing Assembly
1CMOTOR HOUSING (BRUSHED NICKEL)
1AMOTOR HOUSING (IMPERIAL TRUFFLE)
1BMOTOR HOUSING (IMPERIAL WHITE)
2TRIM BAND (BLACK)
3LOWER GEARCASE (IMPERIAL BLACK)
3BLOWER GEARCASE (IMPERIAL WHITE)
3ALOWER GEARCASE (IMPERIAL TRUFFLE)
3CLOWER GEARCASE (BRUSHED NICKEL)
4APLANETARY (IMPERIAL TRUFFLE)
4CPLANETARY (BRUSHED NICKEL)
4W10737004 Whirlpool Planetary Assembly
4BPLANETARY (IMPERIAL WHITE)
5BOWL SUPPORT-Imperial Black
5CBOWL SUPPORT AND PINS (BRUSHED NICKEL)
5ABOWL SUPPORT AND PINS (IMPERIAL TRUFFLE)
5BBOWL SUPPORT AND PINS (IMPERIAL WHITE)
6ACOLUMN AND PINS (IMPERIAL TRUFFLE)
6CWPW10112556 Whirlpool Column Assembly
6BWPL W10736993
6COLUMN-Imperial Black
7Base And Foot Assembly (Imperial Black)
7BWPL W10736995
7CBASE AND FOOT ASSEMBLY (BRUSHED NICKEL)
7ABASE AND FOOT ASSEMBLY (IMPERIAL TRUFFLE)
