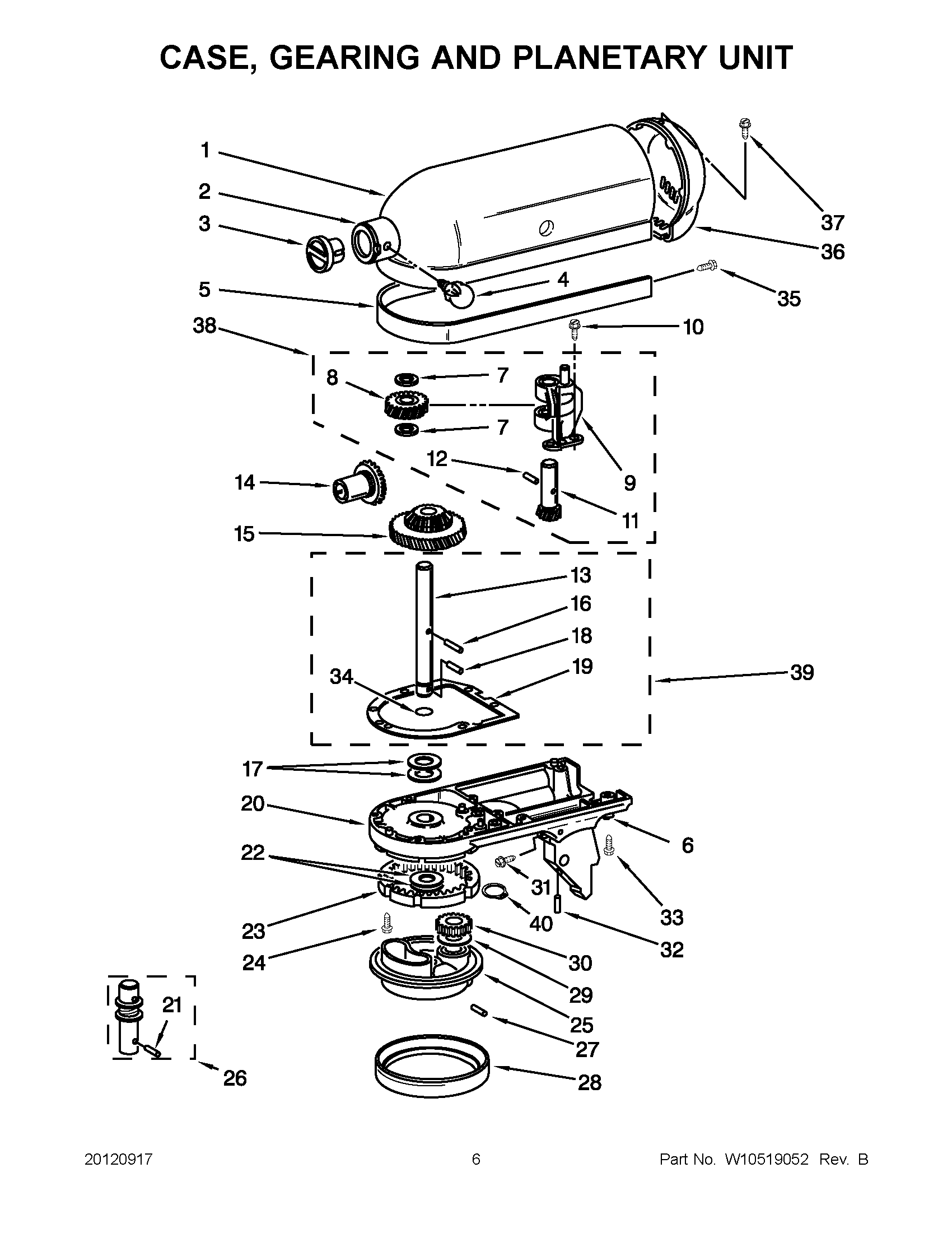

KSM75SL0 03 – CASE, GEARING AND PLANETARY UNIT

Products

Position	Product
2	WP16897 Whirlpool Bearing
3	Cap, Attachment Hub
4	WP9709194 Whirlpool Black Thumb Screw
6	WP8533914 Whirlpool Lock
7	WPW10323373 Whirlpool Washer
8	WPW10112253 Whirlpool Gear Assembly
9	W11082541 Whirlpool Bearing
10	W11097298 Whirlpool Dishwasher Screw
11	Shaft & Pinion
12	WP9705444 Whirlpool Pin Groove
13	WP240026 Whirlpool Control Shaft
14	W11192794 Whirlpool HUB Gear
17	WPW10323378 Whirlpool Washer
18	WP9705443 Whirlpool Pin Groove
19	WP4162324 Whirlpool Case Gasket
21	W11664709 Whirlpool Groove Pin
23	W11340106 Whirlpool Gear Assembly
24	Screw, Special (5)
26	WP243368 Whirlpool Agitator Shaft
27	Pin (Vertical Center Shaft)
28	WP240285 Whirlpool Drip Ring
29	WP9706090 Whirlpool Washer
30	W11133645 Whirlpool Pinion Gear
31	W11028216 Whirlpool Screw
32	WP3400203 Whirlpool Screw
33	WP3400025 Whirlpool Screw
34	O RING
35	WP313808 Whirlpool Screw
36	CABINET (NOT A SERVICEABLE PART)
37	WP241877 Whirlpool Screw
38	GEAR, WORM AND BRACKET
39	4160474 Whirlpool Control Shaft
40	WP9703438 Whirlpool Snap Retaining Ring
