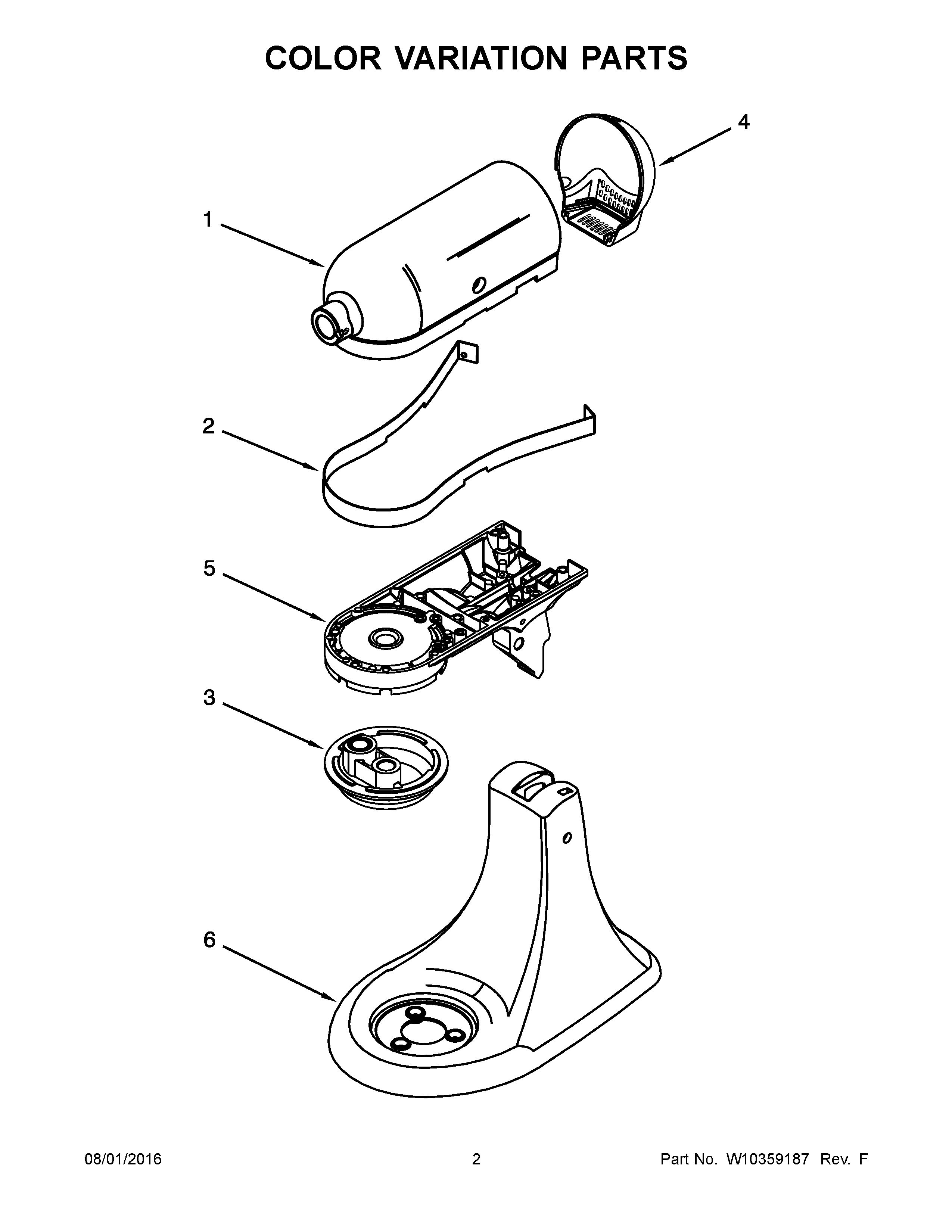

KSM85PBGC0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1CMotor Housing (Onyx Black)
1GMOTOR HOUSING (GREEN APPLE)
19704790 Whirlpool Housing
1DW10121193 Whirlpool Housing
1EMOTOR HOUSING (MAJESTIC YELLOW)
1BMOTOR HOUSING (EMPIRE RED)
1FMOTOR HOUSING (COBALT BLUE)
1H9709442 Whirlpool Housing
1AMOTOR HOUSING (SILVER)
1IMotor Housing (White)
1JMOTOR HOUSING (COPPER PEARL)
2W10348219 Whirlpool Trim Band
3H9709439 Whirlpool Planetary Gear
3G9709685 Whirlpool Planetary Assembly
3JPLANETARY (COPPER PEARL)
39704797 Whirlpool Planetary Mixing
3EPLANETARY (MAJESTIC YELLOW)
3BPLANETARY (EMPIRE RED)
3FPLANETARY (COBALT BLUE)
3IPLANETARY-White
3APLANETARY (SILVER)
3CPLANETARY-Onyx Black
3D9706670 Whirlpool Planetary
4JWPL W10512235
4DW10121188 Whirlpool Cover Assembly
4H9709437 Whirlpool Cover
49704805 Whirlpool Cover Assembly
4CEND COVER (ONYX BLACK)
4G9709683 Whirlpool Cover
4EEND COVER (MAJESTIC YELLOW)
4BEND COVER (EMPIRE RED)
4FEND COVER (COBALT BLUE)
4IEND COVER-White
4AEND COVER (SILVER)
5CLOWER GEARCASE (ONYX BLACK)
5JWPL W10513176
5HWPL 9709445
5DW10121196 Whirlpool Gearcase
5FWPL 24035031
5G9709691 Whirlpool Gearcase
5EWPL 24035082
5ILOWER GEARCASE-White
5LOWER GEARCASE (IMPERIAL BLACK)
5AW10349276 Whirlpool Gearcase
5BLOWER GEARCASE-Empire Red
69707100 Whirlpool Pedestal
6DW10121199 Whirlpool Pedestal
6HWPL 9709448
6JWPL W10512281
6BW11131262 Whirlpool Pedestal
6APEDESTAL WITH FEET (SILVER)
6GWPL 9709694
6EWPL 9702303
6I3179260 Whirlpool Pedestal
6CPedestal w/Feet (Onyx Black)
6FWPL 3179263
