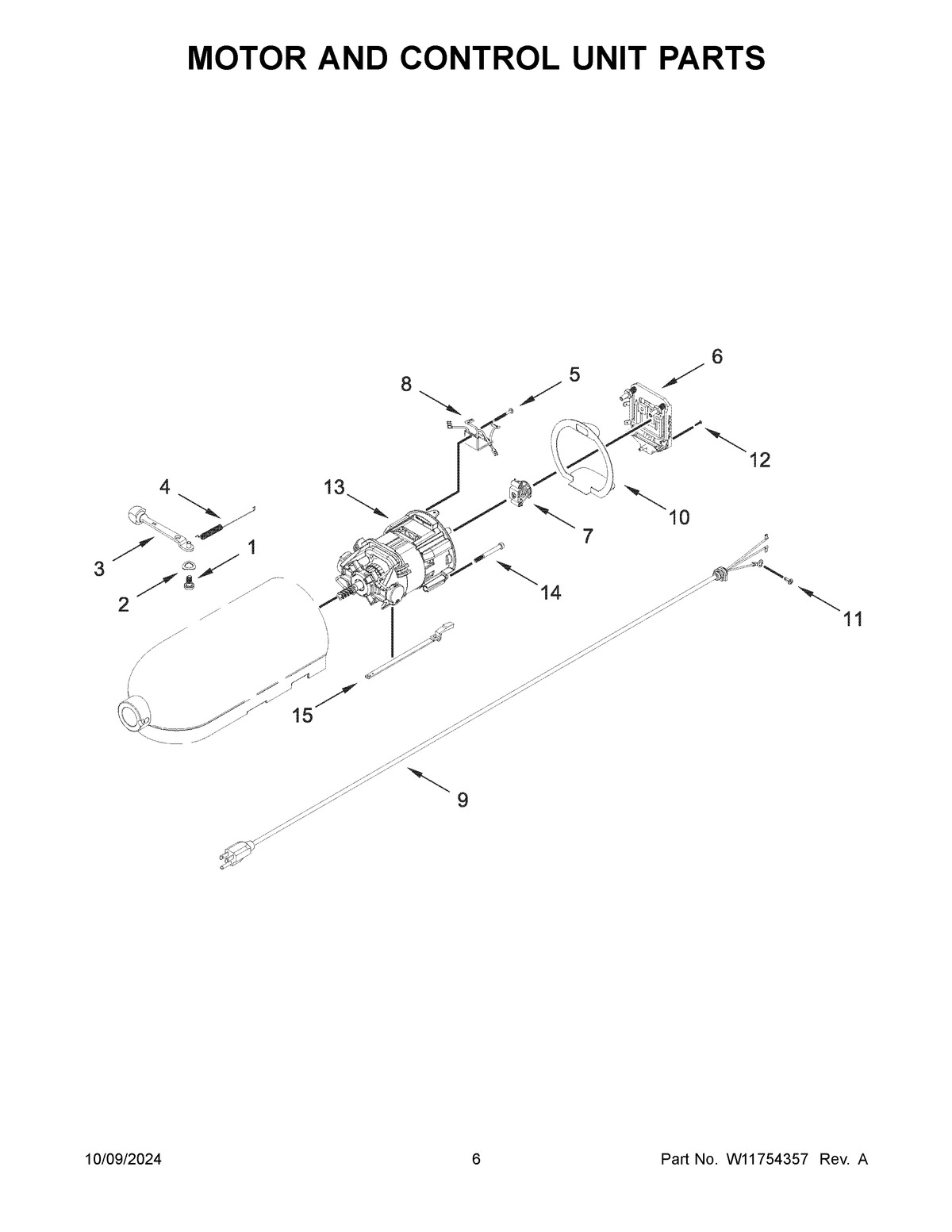

KSM85PSCWH5 04 – MOTOR AND CONTROL UNIT PARTS

KSM85PSCWH5 04 – MOTOR AND CONTROL UNIT PARTS

Written by

in

KSM85PSCWH5 04 – MOTOR AND CONTROL UNIT PARTS

Products

PositionProduct
1WP110679 Whirlpool Screw
2WP116241 Whirlpool Washer
3WP9709276 Whirlpool Speed Control Lever
4WP3183680 Whirlpool Spring
5W11084238 Whirlpool Screw Assembly
6WPW10119326 Whirlpool Speed Control
7WPW10330804 Whirlpool Speed Governor
8WPW10325124 Whirlpool Phase Board
9W11545825 Whirlpool Power Cord
9AW11396625 Whirlpool Power Cord
10SEAL, END
11W10914506 Whirlpool Screw
13ASSY, MOTOR
14SCREW, MOTOR MOUNTING
15W11557271 Whirlpool Link Speed
