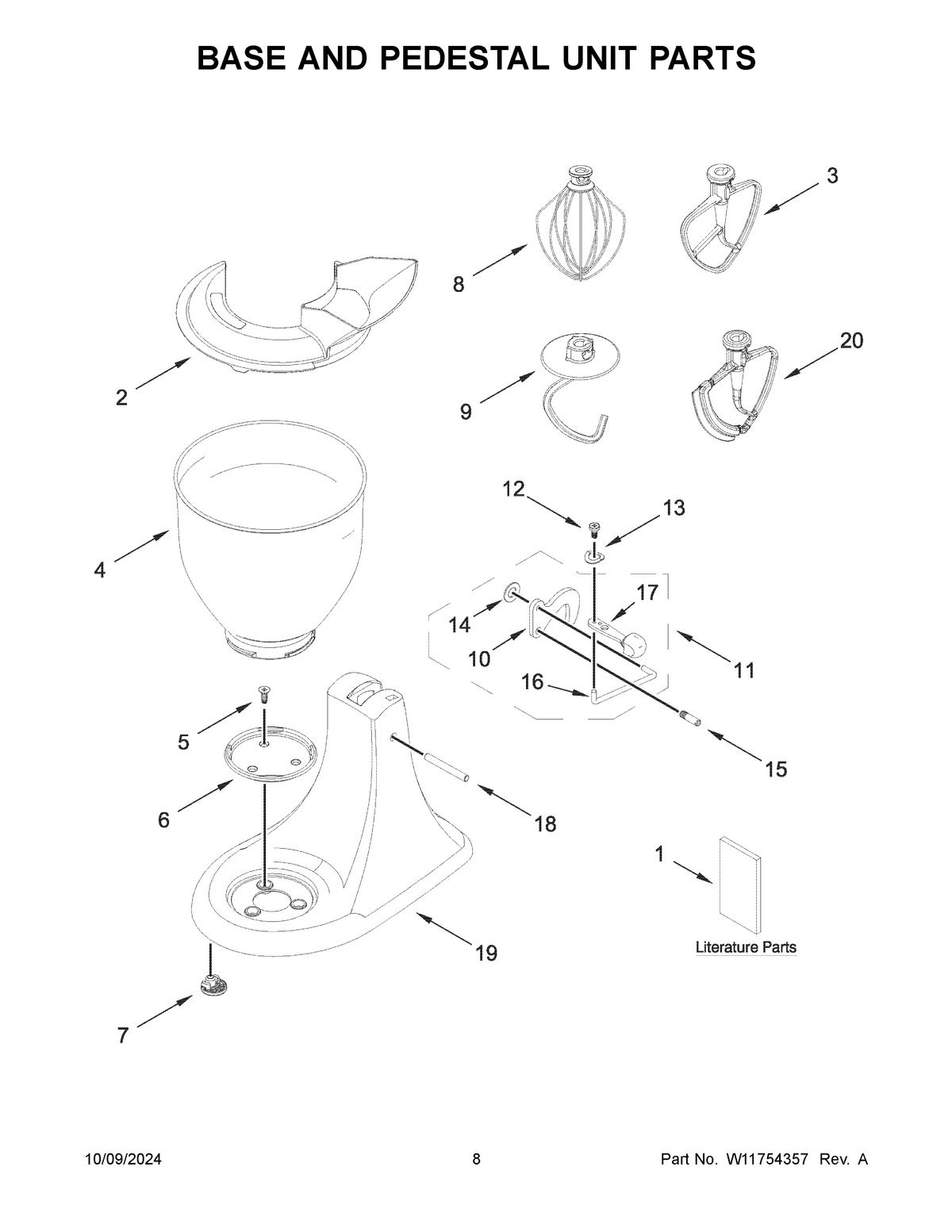

KSM85PSCWH5 05 – BASE AND PEDESTAL UNIT PARTS

KSM85PSCWH5 05 – BASE AND PEDESTAL UNIT PARTS

Written by

in

KSM85PSCWH5 05 – BASE AND PEDESTAL UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE
2W11573560 Whirlpool Pour Shelf
3WPW10672617 Whirlpool Stand Mixer Flat Beater
4W10802058 Whirlpool Mixer Bowl
5SCREW
6WPW10191926 Whirlpool Cap Screw
7FOOT
8WP9704329 Whirlpool Wire Whip
9WPW10674618 Whirlpool Dough Hook
10W11246352 Whirlpool Latch Mechanism
11WP24452 Whirlpool Latch Lever
12WP110679 Whirlpool Screw
13WP116241 Whirlpool Washer
14W11218705 Whirlpool Washer Assembly
15W10802060 Whirlpool Screw
16W11232016 Whirlpool Latch Link
17WP9709280 Whirlpool Latch Lever
18WP16910 Whirlpool Dowel Pin
19PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE)
20W10917788 Whirlpool Mixer Beater
