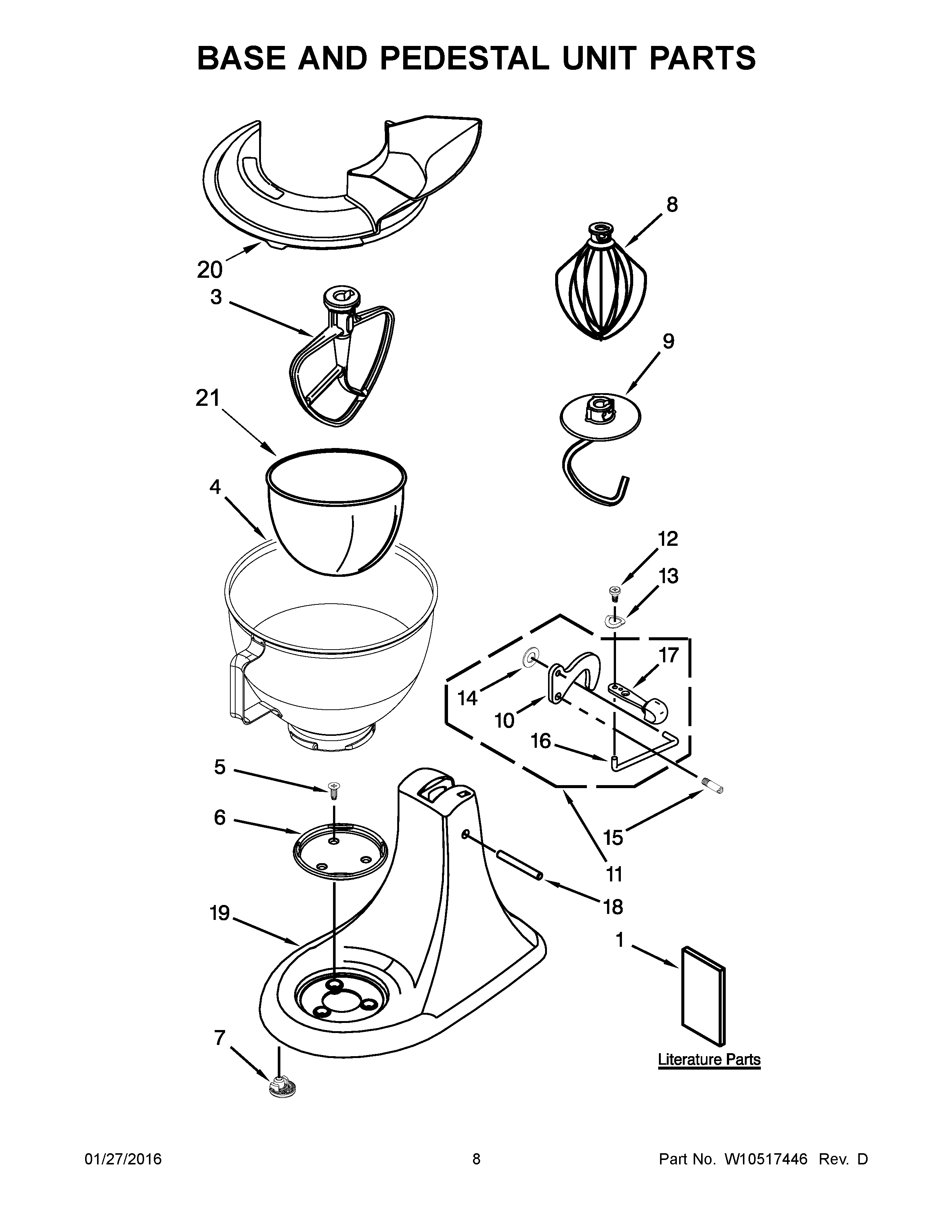

KSM88PSQ2GC0 05 – BASE AND PEDESTAL UNIT PARTS

KSM88PSQ2GC0 05 – BASE AND PEDESTAL UNIT PARTS

Written by

in

KSM88PSQ2GC0 05 – BASE AND PEDESTAL UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10917788 Whirlpool Mixer Beater
1Use & Care, Trilin
3W11672200 Whirlpool Mixer Beater
4W10802058 Whirlpool Mixer Bowl
5SCREW
6WPW10191926 Whirlpool Cap Screw
7WP9709707 Whirlpool Foot
8WP9704329 Whirlpool Wire Whip
9W11316221 Whirlpool Stand Mixer Dough Hook
10W11246352 Whirlpool Latch Mechanism
11WP24452 Whirlpool Latch Lever
12WP110679 Whirlpool Screw
13WP116241 Whirlpool Washer
14W11218705 Whirlpool Washer Assembly
15W10802060 Whirlpool Screw
16W11232016 Whirlpool Latch Link
17WP9709280 Whirlpool Latch Lever
18WP16910 Whirlpool Dowel Pin
20W11312468 Whirlpool Pour Shelf
21BOWL, 3 QT.
