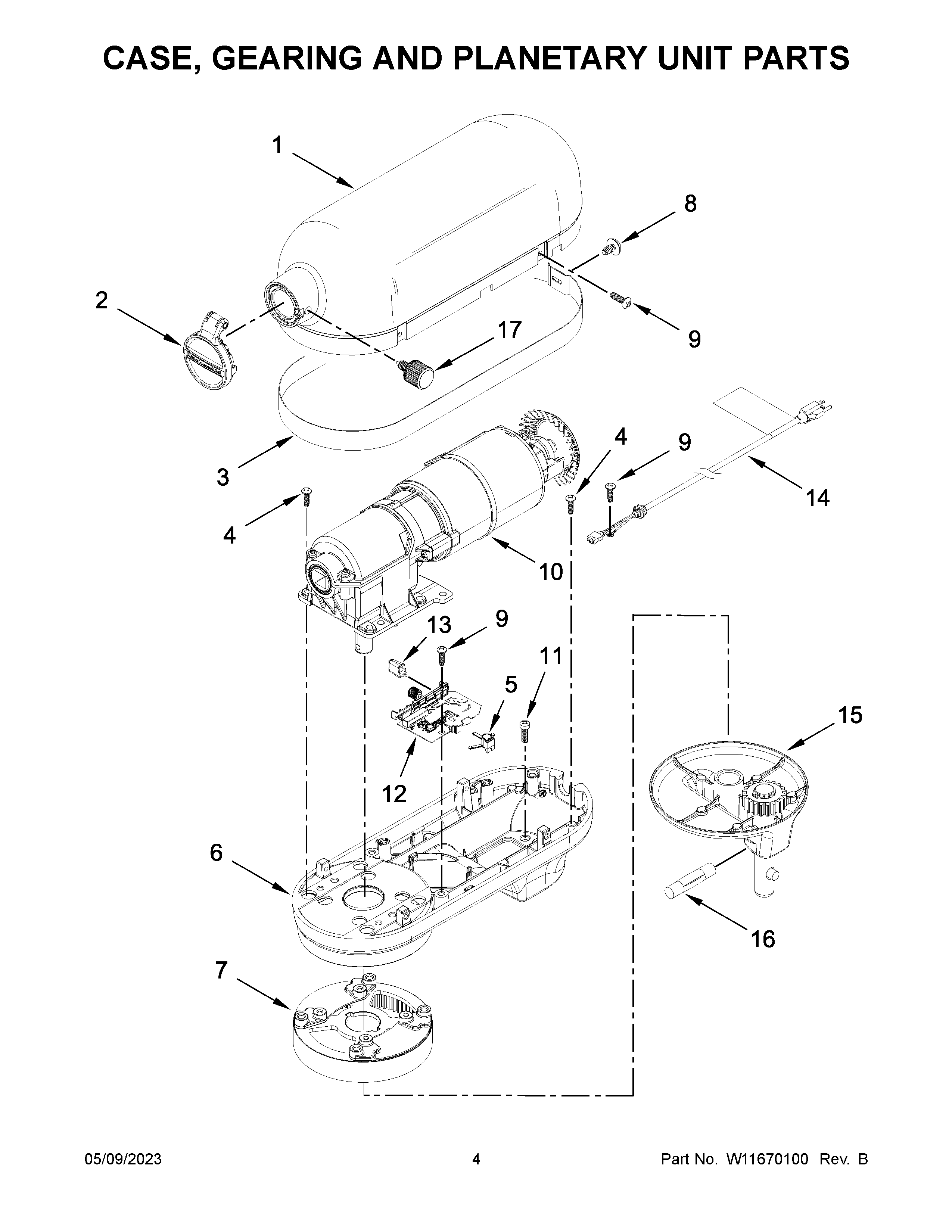

KSM8990CU1 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

PositionProduct
2W11123129 Whirlpool Hubcap
4W10914506 Whirlpool Screw
5WPW10305968 Whirlpool Holder
7ASSEMBLY, RING GEAR AND PLATE
8W10853069 Whirlpool Screw
9WP3400814 Whirlpool Screw
10WPW10517938 Whirlpool Motor Assembly
11W10913677 Whirlpool Screw
12WPW10487697 Whirlpool Speed Control
13W11736463 Whirlpool Guard Assembly
14W11199160 Whirlpool Stand Mixer Power Cord
15CABINET (NOT A SERVICEABLE PART)
16WPW10234531 Whirlpool Dishwasher Groove Pin
17WPW10360791 Whirlpool Screw
