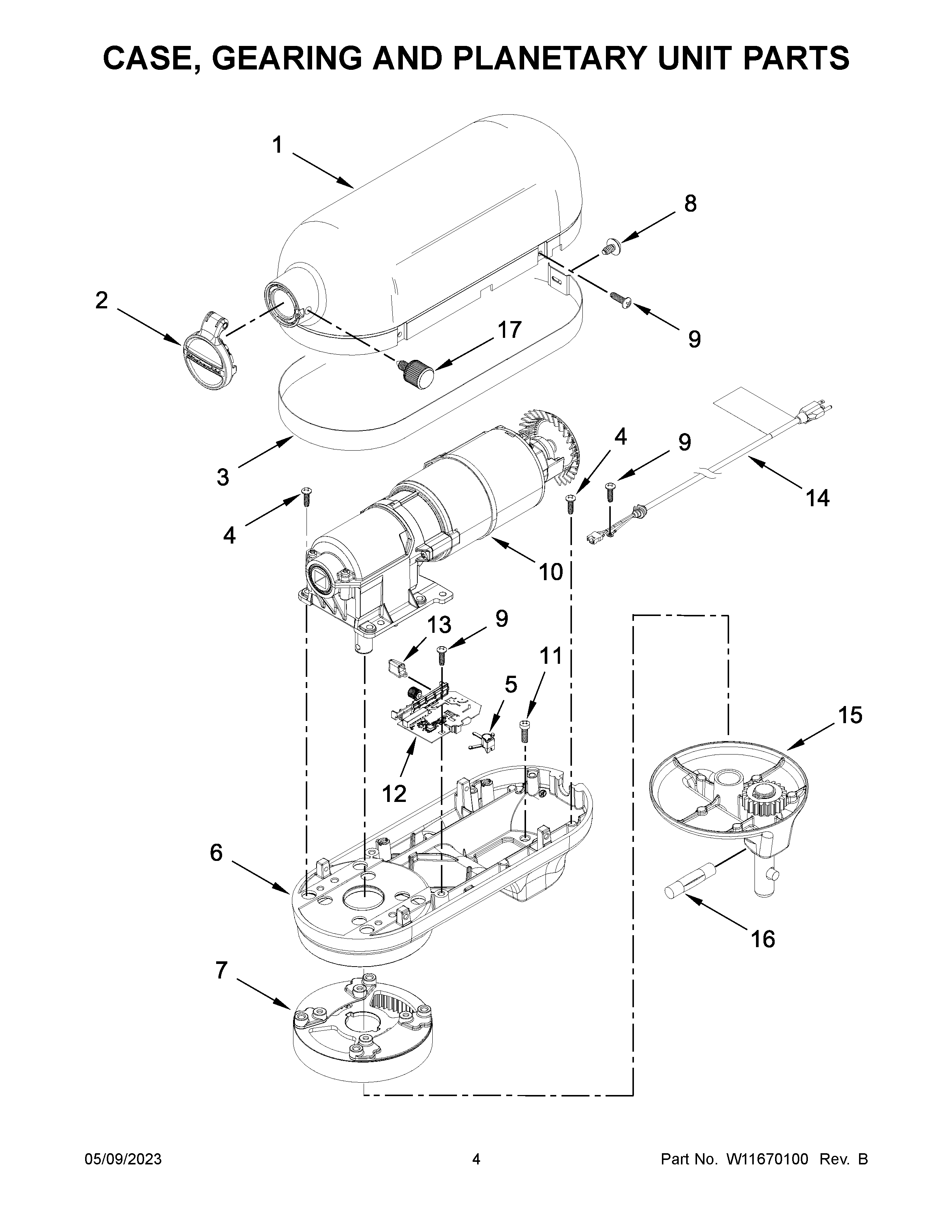

KSM8990ER1 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

Position	Product
2	W11123129 Whirlpool Hubcap
4	W10914506 Whirlpool Screw
5	WPW10305968 Whirlpool Holder
7	ASSEMBLY, RING GEAR AND PLATE
8	W10853069 Whirlpool Screw
9	WP3400814 Whirlpool Screw
10	WPW10517938 Whirlpool Motor Assembly
11	W10913677 Whirlpool Screw
12	WPW10487697 Whirlpool Speed Control
13	W11736463 Whirlpool Guard Assembly
14	W11199160 Whirlpool Stand Mixer Power Cord
15	CABINET (NOT A SERVICEABLE PART)
16	WPW10234531 Whirlpool Dishwasher Groove Pin
17	WPW10360791 Whirlpool Screw
