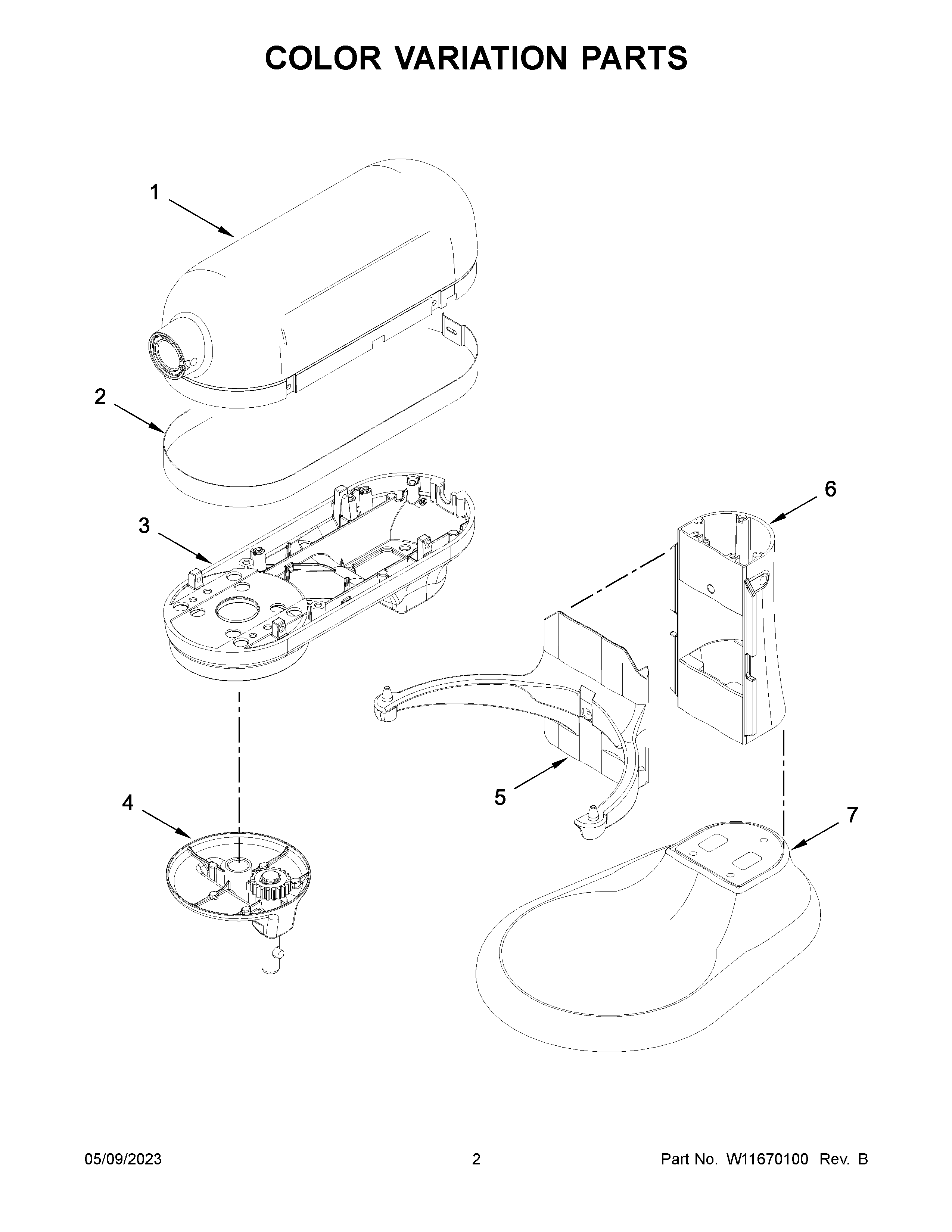

KSM8990OB1 02 – COLOR VARIATION PARTS

Products

Position	Product
1	W10327951 Whirlpool Housing
1B	9708749 Whirlpool Housing
1D	9703311 Whirlpool Housing Assembly
1C	9705296 Whirlpool Housing
1A	9705300 Whirlpool Housing Assembly
2	W10540366 Whirlpool Trim Band
3	LOWER GEARCASE (CONTOUR SILVER)
3A	LOWER GEARCASE (EMPIRE RED)
3B	LOWER GEARCASE (NICKEL PEARL)
3C	LOWER GEARCASE (ONYX BLACK)
3D	LOWER GEARCASE (WHITE)
4	PLANETARY (CHROME)
5A	9705360 Whirlpool Support Assembly
5	WPL W10327966
5C	9705356 Whirlpool Support
5B	9708760 Whirlpool Support
5D	9703674 Whirlpool Support
6D	9703673 Whirlpool Column
6B	COLUMN AND PINS (NICKEL PEARL)
6A	9705324 Whirlpool Column Assembly
6	W10328003 Whirlpool Column Assembly
6C	9705320 Whirlpool Column
7A	9705348 Whirlpool Base
7D	9703690 Whirlpool Base
7B	BASE & FOOT ASSEMBLY (NICKEL PEARL)
7	WPL W10328017
7C	9705344 Whirlpool Base
