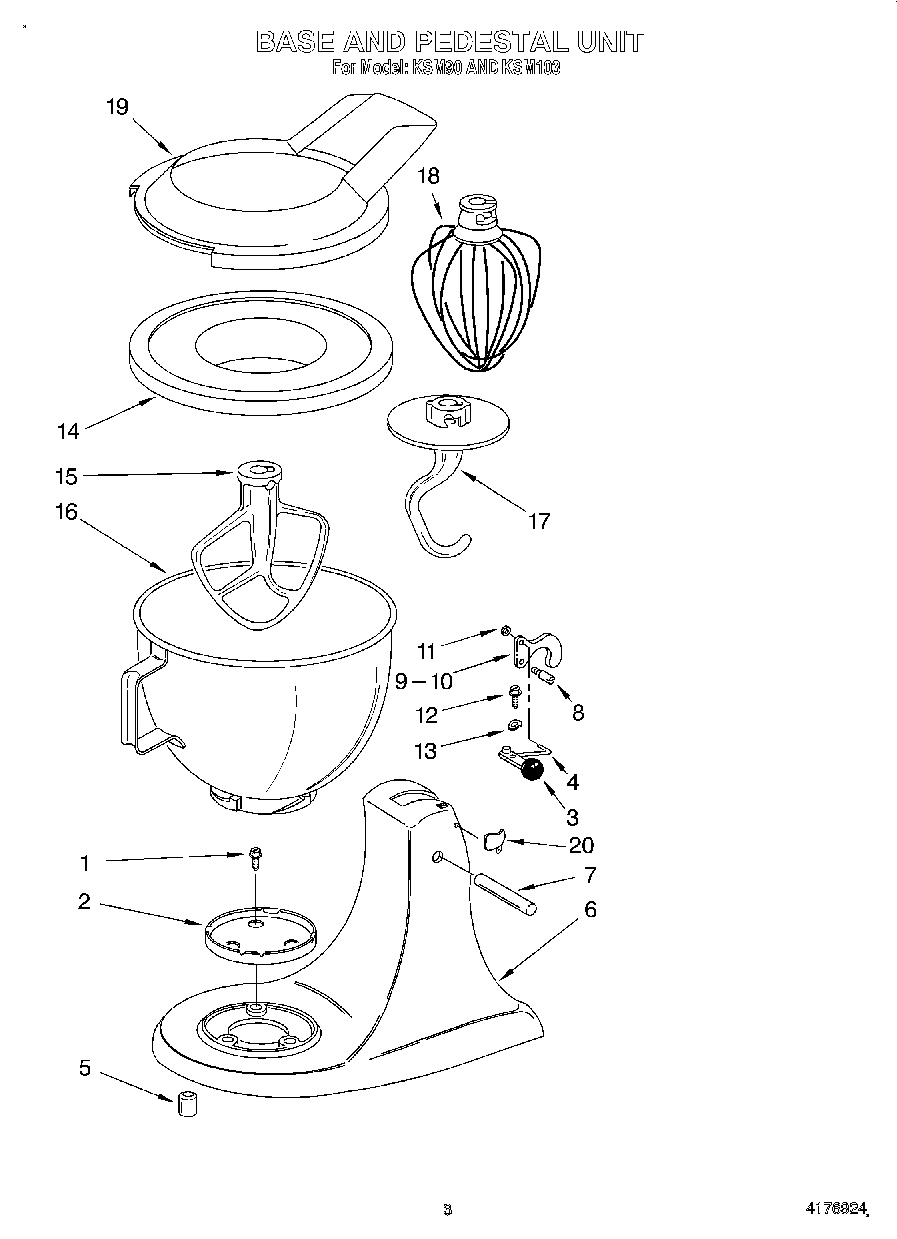

KSM90WH 03 – BASE AND PEDESTAL, LITERATURE

Products

Position	Product
	Literature Parts (Use And Care Guide)
	WPL LIT9705170
	Repair Parts List
1	SCREW
2	WPW10191926 Whirlpool Cap Screw
3	WP9709280 Whirlpool Latch Lever
3	242928-2 Whirlpool Lever Latch
4	W11232016 Whirlpool Latch Link
5	Foot, Base
6	PEDESTAL-Cobalt Blue
6	WPL 9706467
6	WPL 9705237
6	WPL 9704747
6	WPL 9706264
6	PEDESTAL-Empire Green
6	PEDESTAL-Royal Blue
6	PEDESTAL-Majestic Yellow
6	PEDESTAL-Biscuit
6	PEDESTAL-Imperial Gray
6	240151-13 Whirlpool Pedestal
6	WP240151-1 Whirlpool Pedestal
6	WP240151-15 Whirlpool Pedestal
6	WP240151-21 Whirlpool Pedestal
6	WPL 9704000
6	WPL 4176335
6	WPL 4176229
6	WP3184273 Whirlpool Pedestal
6	PEDESTAL & FOOT (ONYX BLACK)
6	W11131262 Whirlpool Pedestal
7	WP16910 Whirlpool Dowel Pin
8	W10802060 Whirlpool Screw
9	WP24452 Whirlpool Latch Lever
10	W11246352 Whirlpool Latch Mechanism
12	Screw, Pivot
13	Washer, Spring
14	Cover, Bowl
15	WPW10672617 Whirlpool Stand Mixer Flat Beater
16	W10802058 Whirlpool Mixer Bowl
17	WPW10674618 Whirlpool Dough Hook
18	WP9704329 Whirlpool Wire Whip
19	W11312468 Whirlpool Pour Shelf
20	WP3184264 Whirlpool Headlock Assembly
