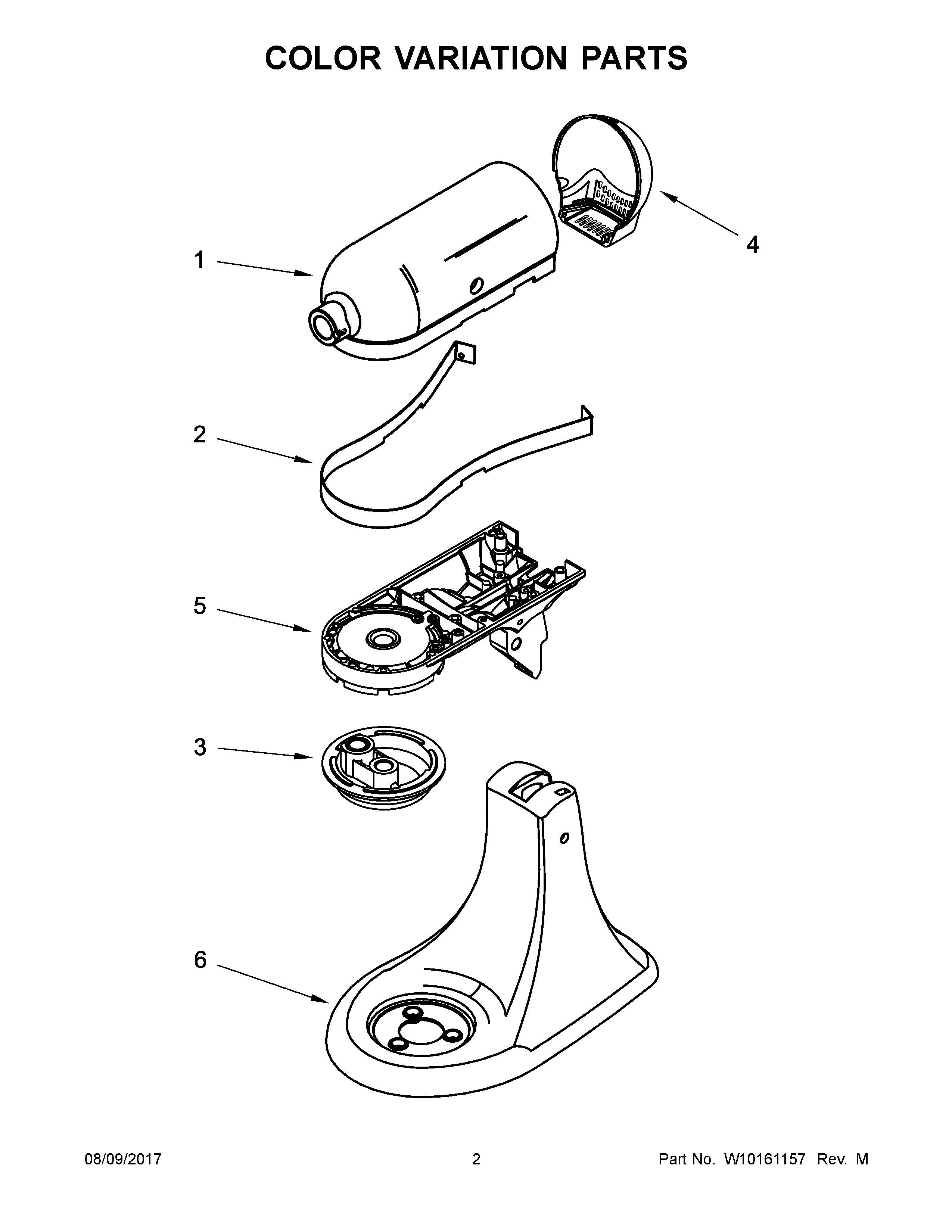

KSM95FEWH0 02 – COLOR VARIATION PARTS

Products

Position	Product
1H	W10350463 Whirlpool Housing
1A	MOTOR HOUSING (EMPIRE RED)
1L	MOTOR HOUSING (BOYSENBERRY)
1F	MOTOR HOUSING (TANGERINE)
1B	Motor Housing (Onyx Black)
1K	9707662 Whirlpool Housing
1N	MOTOR HOUSING (BLACK MATTE)
1G	MOTOR HOUSING (IMPERIAL GRAY)
1D	MOTOR HOUSING (GREEN APPLE)
1E	W10121193 Whirlpool Housing
1M	MOTOR HOUSING (TWLIGHT BLUE)
1I	Motor Housing (Almond Creme)
1	Motor Housing (White)
1J	MOTOR HOUSING (CRANBERRY/FLAMINGO)
1C	MOTOR HOUSING (COBALT BLUE)
2	9702645 Whirlpool Trim Band
2A	TRIM BAND (PINK)
3N	W11170306 Whirlpool Planetary Assembly
3J	WPL 9706799
3E	9709685 Whirlpool Planetary Assembly
3K	9707665 Whirlpool Planetary Mixer
3G	WPL 9706852
3D	PLANETARY (COBALT BLUE)
3H	W10350465 Whirlpool Planetary Mixer
3C	PLANETARY-Onyx Black
3M	PLANETARY (TWILIGHT BLUE)
3B	PLANETARY (IMPERIAL GRAY)
3A	PLANETARY (EMPIRE RED)
3L	PLANETARY (BOYSENBERRY)
3F	9706670 Whirlpool Planetary
3	PLANETARY-White
3I	Planetary (Almond Creme)
4L	W10140796 Whirlpool Cover
4B	END COVER (IMPERIAL GRAY)
4M	WPL W10788453
4K	9707667 Whirlpool Cover
4F	W10121188 Whirlpool Cover Assembly
4	END COVER-White
4E	9709683 Whirlpool Cover
4C	END COVER (ONYX BLACK)
4D	END COVER (COBALT BLUE)
4A	END COVER (EMPIRE RED)
4H	W10350456 Whirlpool Cover Assembly
4G	9706854 Whirlpool Cover
4I	End Cover (Almond Creme)
4N	WPL W10885707
4J	9706801 Whirlpool Cover
5M	WPL W10788457
5G	WPL 9706845
5I	LOWER GEARCASE (ALMOND CREME)
5	LOWER GEARCASE-White
5L	LOWER GEARCASE (BOYSENBERRY)
5C	LOWER GEARCASE (ONYX BLACK)
5K	LOWER GEARCASE (ICE)
5D	WPL 24035031
5F	W10121196 Whirlpool Gearcase
5B	WPL 24035086
5J	9706792 Whirlpool Gearcase
5E	9709691 Whirlpool Gearcase
5H	LOWER GEARCASE (CONTOUR SILVER)
5A	LOWER GEARCASE-Empire Red
5N	WPL W10885699
6N	WPL W10885695
6M	WPL W10788449
6C	Pedestal w/Feet (Onyx Black)
6	3179260 Whirlpool Pedestal
6K	9707656 Whirlpool Pedestal
6H	PEDESTAL W/FEET (CONTOUR SILVER)
6L	PEDESTAL W/FEET (BOYSENBERRY)
6I	PEDESTAL W/FEET (ALMOND CREME)
6A	W11131262 Whirlpool Pedestal
6E	WPL 9709694
6D	WPL 3179263
6F	W10121199 Whirlpool Pedestal
6G	WPL 9706843
6J	WPL 9706790
6B	9702305 Whirlpool Pedestal
