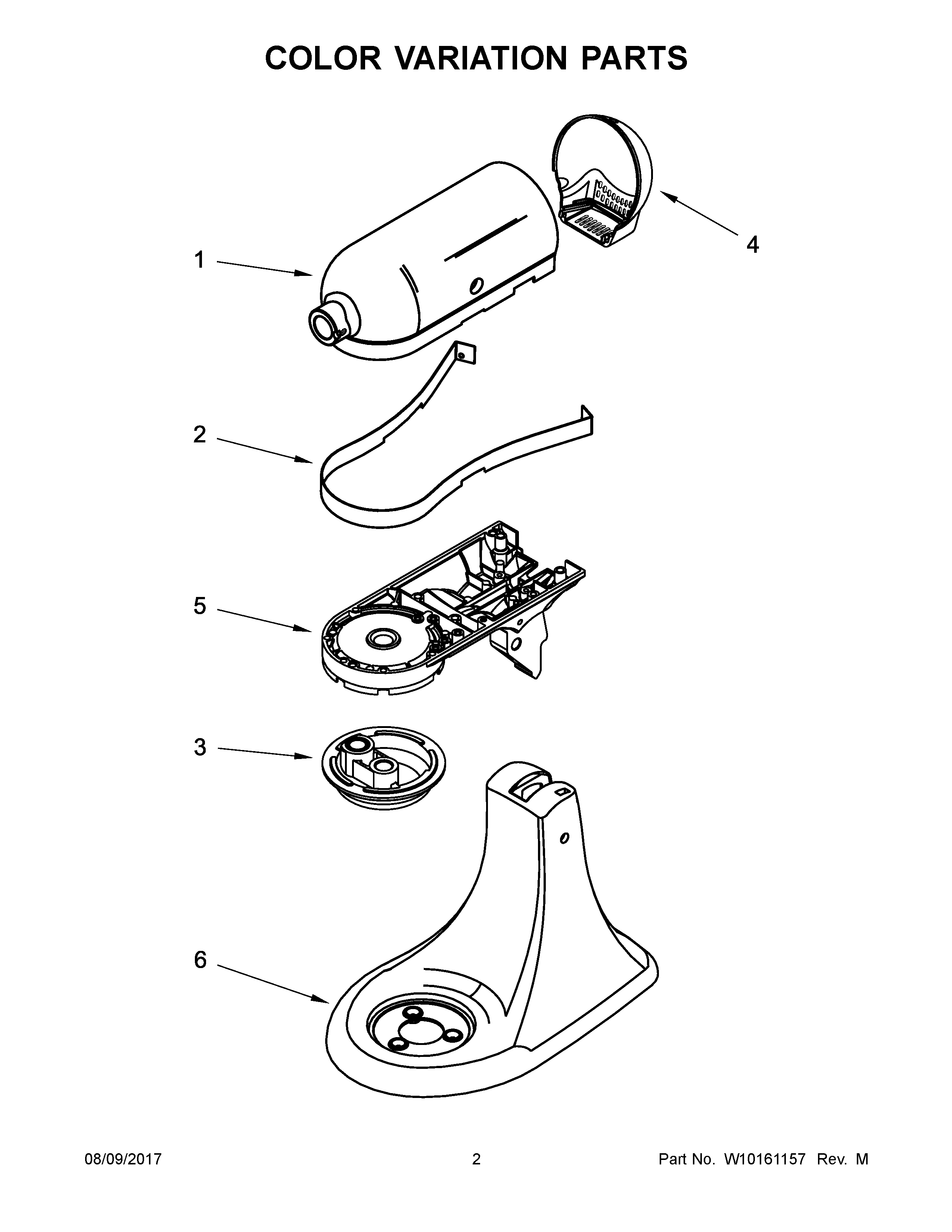

KSM95GR0 02 – COLOR VARIATION PARTS

KSM95GR0 02 – COLOR VARIATION PARTS

Written by

in

KSM95GR0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1HW10350463 Whirlpool Housing
1AMOTOR HOUSING (EMPIRE RED)
1LMOTOR HOUSING (BOYSENBERRY)
1FMOTOR HOUSING (TANGERINE)
1BMotor Housing (Onyx Black)
1K9707662 Whirlpool Housing
1NMOTOR HOUSING (BLACK MATTE)
1GMOTOR HOUSING (IMPERIAL GRAY)
1DMOTOR HOUSING (GREEN APPLE)
1EW10121193 Whirlpool Housing
1MMOTOR HOUSING (TWLIGHT BLUE)
1IMotor Housing (Almond Creme)
1Motor Housing (White)
1JMOTOR HOUSING (CRANBERRY/FLAMINGO)
1CMOTOR HOUSING (COBALT BLUE)
29702645 Whirlpool Trim Band
2ATRIM BAND (PINK)
3NW11170306 Whirlpool Planetary Assembly
3JWPL 9706799
3E9709685 Whirlpool Planetary Assembly
3K9707665 Whirlpool Planetary Mixer
3GWPL 9706852
3DPLANETARY (COBALT BLUE)
3HW10350465 Whirlpool Planetary Mixer
3CPLANETARY-Onyx Black
3MPLANETARY (TWILIGHT BLUE)
3BPLANETARY (IMPERIAL GRAY)
3APLANETARY (EMPIRE RED)
3LPLANETARY (BOYSENBERRY)
3F9706670 Whirlpool Planetary
3PLANETARY-White
3IPlanetary (Almond Creme)
4LW10140796 Whirlpool Cover
4BEND COVER (IMPERIAL GRAY)
4MWPL W10788453
4K9707667 Whirlpool Cover
4FW10121188 Whirlpool Cover Assembly
4END COVER-White
4E9709683 Whirlpool Cover
4CEND COVER (ONYX BLACK)
4DEND COVER (COBALT BLUE)
4AEND COVER (EMPIRE RED)
4HW10350456 Whirlpool Cover Assembly
4G9706854 Whirlpool Cover
4IEnd Cover (Almond Creme)
4NWPL W10885707
4J9706801 Whirlpool Cover
5MWPL W10788457
5GWPL 9706845
5ILOWER GEARCASE (ALMOND CREME)
5LOWER GEARCASE-White
5LLOWER GEARCASE (BOYSENBERRY)
5CLOWER GEARCASE (ONYX BLACK)
5KLOWER GEARCASE (ICE)
5DWPL 24035031
5FW10121196 Whirlpool Gearcase
5BWPL 24035086
5J9706792 Whirlpool Gearcase
5E9709691 Whirlpool Gearcase
5HLOWER GEARCASE (CONTOUR SILVER)
5ALOWER GEARCASE-Empire Red
5NWPL W10885699
6NWPL W10885695
6MWPL W10788449
6CPedestal w/Feet (Onyx Black)
63179260 Whirlpool Pedestal
6K9707656 Whirlpool Pedestal
6HPEDESTAL W/FEET (CONTOUR SILVER)
6LPEDESTAL W/FEET (BOYSENBERRY)
6IPEDESTAL W/FEET (ALMOND CREME)
6AW11131262 Whirlpool Pedestal
6EWPL 9709694
6DWPL 3179263
6FW10121199 Whirlpool Pedestal
6GWPL 9706843
6JWPL 9706790
6B9702305 Whirlpool Pedestal
