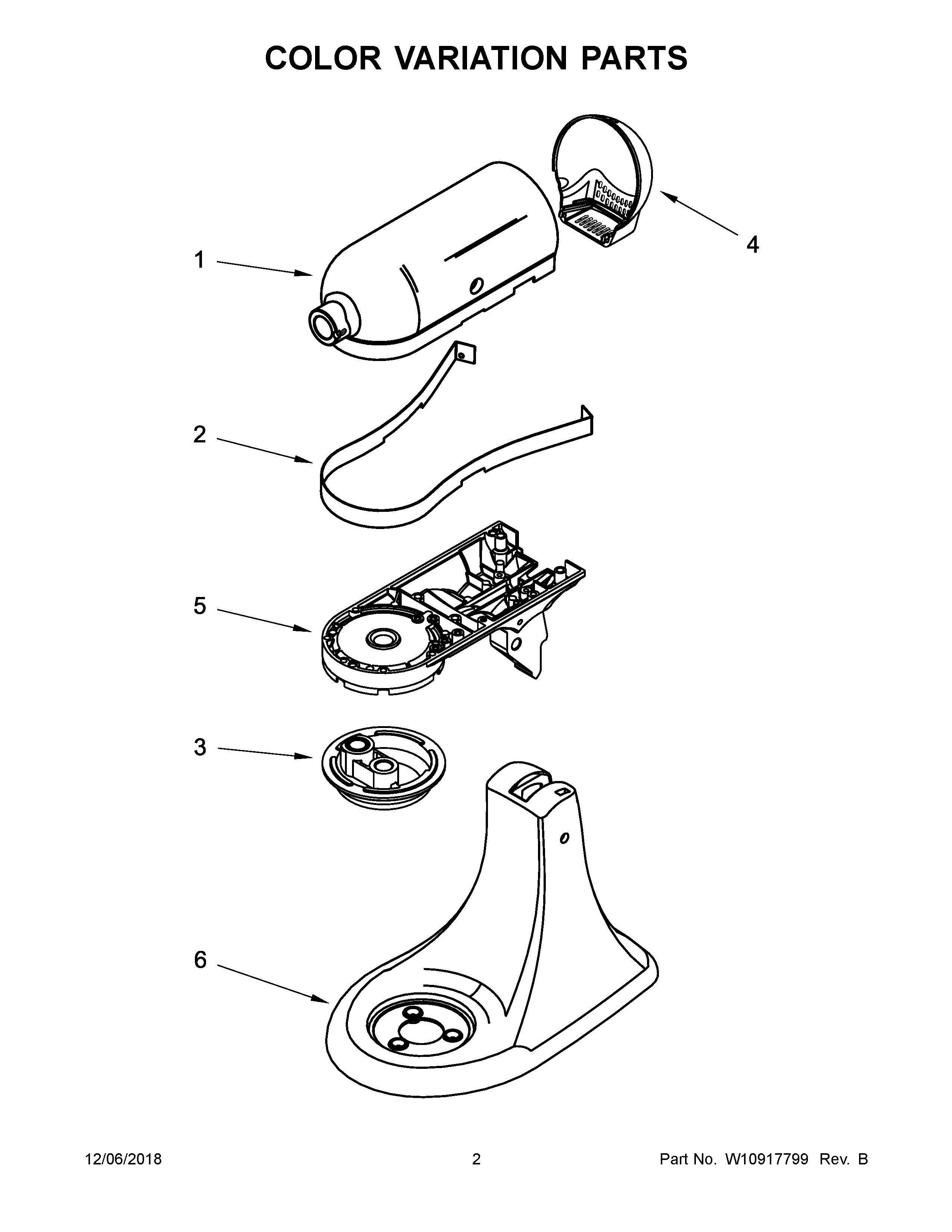

KSM96BU0 02 – COLOR VARIATION PARTS

Products

Position	Product
1	MOTOR HOUSING (COBALT BLUE)
1B	MOTOR HOUSING (EMPIRE RED)
1D	MOTOR HOUSING (MATTE FOG BLUE)
1E	MOTOR HOUSING (BLACK MATTE)
1C	9707662 Whirlpool Housing
1A	W10350463 Whirlpool Housing
2	TRIM BAND (DARK PLATINUM)
3A	W10350465 Whirlpool Planetary Mixer
3	PLANETARY (COBALT BLUE)
3D	PLANETARY (MATTE FOG BLUE)
3E	W11170306 Whirlpool Planetary Assembly
3B	PLANETARY (EMPIRE RED)
3C	9707665 Whirlpool Planetary Mixer
4	END COVER (COBALT BLUE)
4B	END COVER (EMPIRE RED)
4A	W10350456 Whirlpool Cover Assembly
4D	END COVER (MATTE FOG BLUE)
4E	WPL W10885707
4C	9707667 Whirlpool Cover
5A	LOWER GEARCASE (CONTOUR SILVER)
5D	LOWER GEARCASE (MATTE FOG BLUE)
5E	LOWER GEARCASE (BLACK MATTE)
5B	LOWER GEARCASE-Empire Red
5C	LOWER GEARCASE (ICE)
5	WPL 24035031
6D	PEDESTAL W/FEET (MATTE FOG BLUE)
6E	WPL W10885695
6C	9707656 Whirlpool Pedestal
6A	PEDESTAL W/FEET (CONTOUR SILVER)
6B	W11131262 Whirlpool Pedestal
6	WPL 3179263
