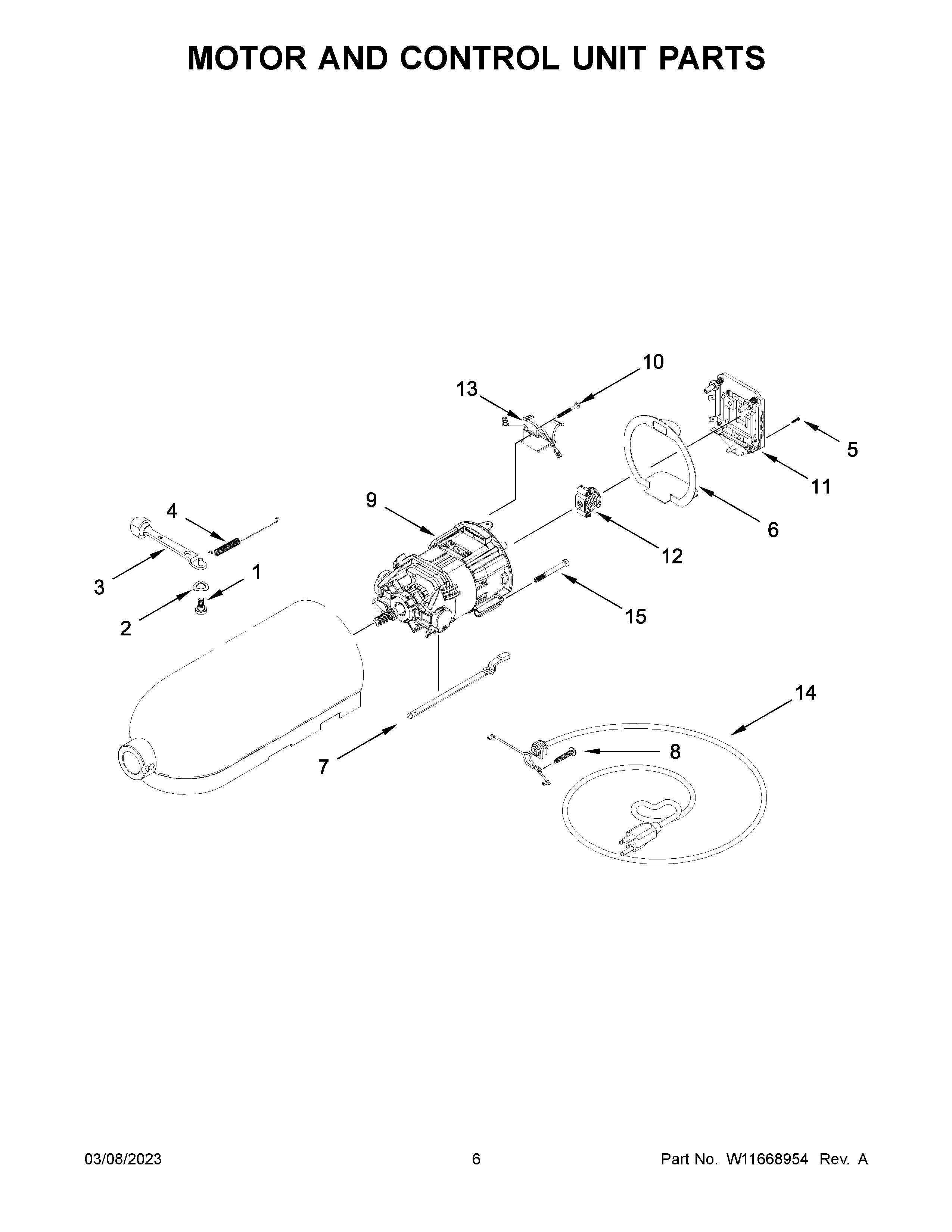

KSM97MI5 04 – MOTOR AND CONTROL UNIT PARTS

KSM97MI5 04 – MOTOR AND CONTROL UNIT PARTS

Written by

in

KSM97MI5 04 – MOTOR AND CONTROL UNIT PARTS

Products

PositionProduct
1WP110679 Whirlpool Screw
2WP116241 Whirlpool Washer
3WP9709276 Whirlpool Speed Control Lever
4WP3183680 Whirlpool Spring
6SEAL, END
7W11557271 Whirlpool Link Speed
8W10914506 Whirlpool Screw
9ASSY, MOTOR
10W11084238 Whirlpool Screw Assembly
11WPW10119326 Whirlpool Speed Control
12WPW10330804 Whirlpool Speed Governor
13WPW10325124 Whirlpool Phase Board
14W11545825 Whirlpool Power Cord
15SCREW, MOTOR MOUNTING
