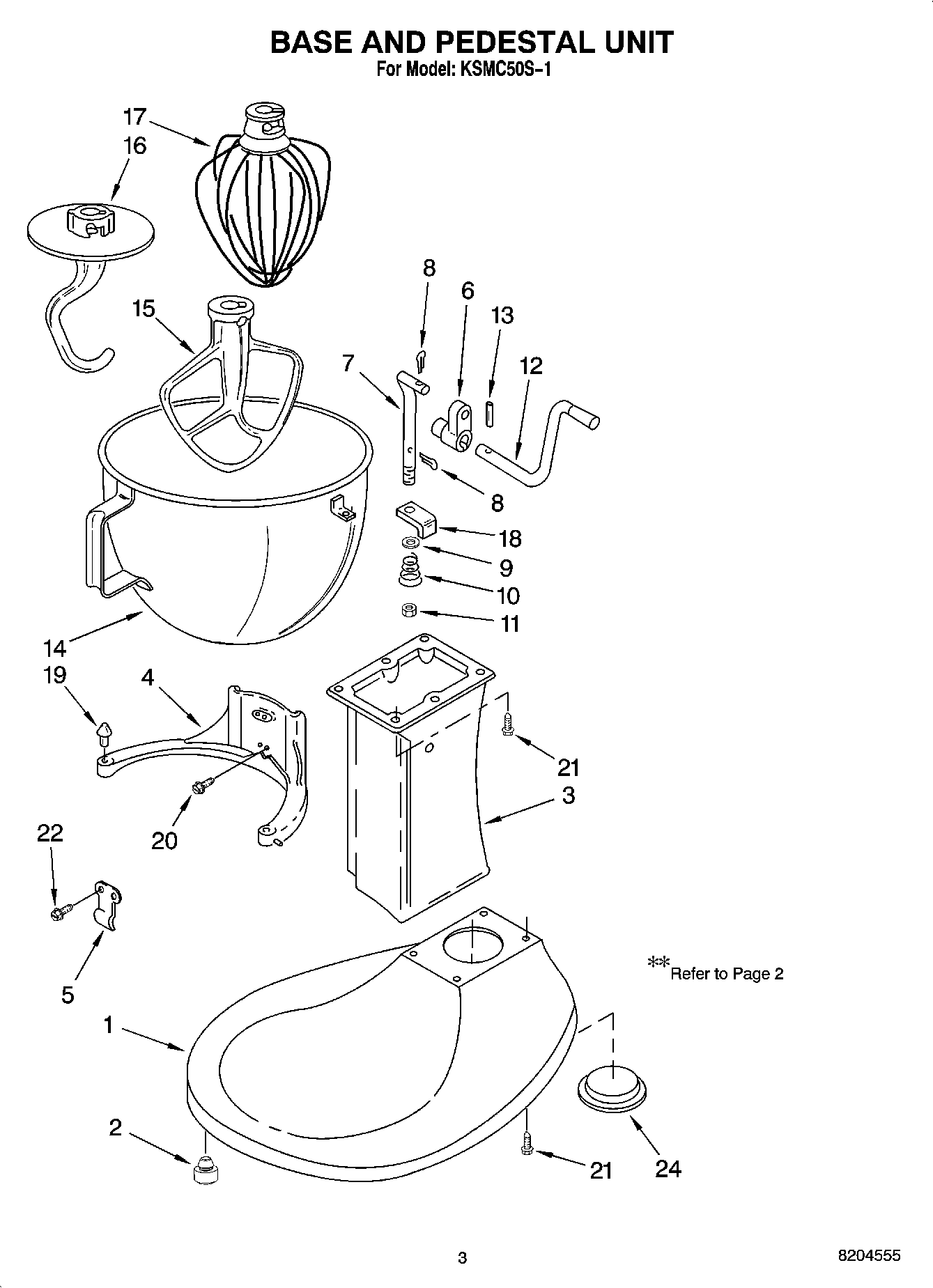

KSMC50S-1 02 – BASE AND PEDESTAL UNIT

Products

PositionProduct
Repair Parts List
Instruction Manual
1Base And Foot Supports
28211628 Whirlpool Foot Assembly
3Column Assembly
4Bowl Support
5WP3182857 Whirlpool Spring
6WP241764 Whirlpool Mixer Lift Arm Bowl
7W10598834 Whirlpool Lift Rod
8WP9704608 Whirlpool Cotter Pin
9W11708396 Whirlpool Washer
104159622 Whirlpool PP Spring
118533907 Whirlpool Dishwasher Nut
12W10598843 Whirlpool Handle Assembly
13WP9703442 Whirlpool Roll Pin
145 Qt. Bowl, Polished Stainless Steel
15W10807813 Whirlpool Mixer Beater
173177259 Whirlpool Wire Whip
18240169 Whirlpool Bracket
19WP240185 Whirlpool Bowl Retaining Pin
20W10861883 Whirlpool Screw
21WP4162403 Whirlpool Screw
22WP4159193 Whirlpool Screw
24WPL 4176184
