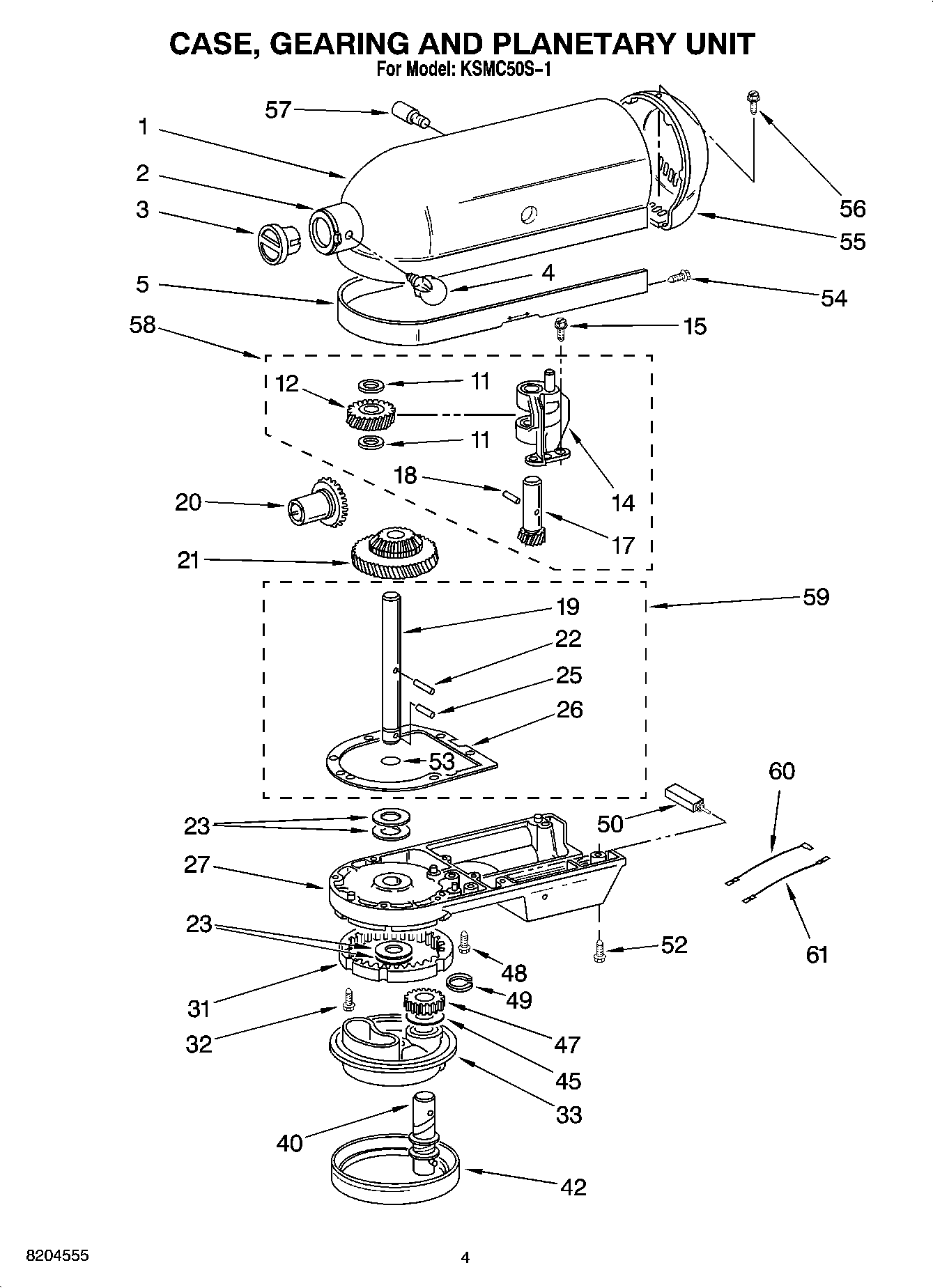

KSMC50S-1 03 – CASE, GEARING, AND PLANETARY UNIT

KSMC50S-1 03 – CASE, GEARING, AND PLANETARY UNIT

Written by

in

KSMC50S-1 03 – CASE, GEARING, AND PLANETARY UNIT

Products

PositionProduct
1Gearcase Motor Housing
24159709 Whirlpool Ring
3Cap, Attachment Hub
4WP9709194 Whirlpool Black Thumb Screw
5Band, Trim
11WPW10323373 Whirlpool Washer
12WPW10112253 Whirlpool Gear Assembly
14W11082541 Whirlpool Bearing
15W11097298 Whirlpool Dishwasher Screw
17Shaft & Pinion
18WP9705444 Whirlpool Pin Groove
19WP240026 Whirlpool Control Shaft
20Gear, Attachment Hub Bevel (23T)
21W11192794 Whirlpool HUB Gear
22Pin (Vertical Center Shaft)
23WPW10323378 Whirlpool Washer
25WP9705443 Whirlpool Pin Groove
26WP4162324 Whirlpool Case Gasket
27Lower Gear Case
31W11340106 Whirlpool Gear Assembly
32WPL 4160595
33Planetary
40WP243368 Whirlpool Agitator Shaft
42WP240285 Whirlpool Drip Ring
45Washer, Shim (.015“ Thk.) (.031“ Thk.)
47W11133645 Whirlpool Pinion Gear
48WP3400025 Whirlpool Screw
49Washer, Retaining
50241287-1 Whirlpool Breaker
52WP9708653 Whirlpool Screw
53WP67500-55 Whirlpool O-Ring
54WP313808 Whirlpool Screw
55Cover, End
56WP241877 Whirlpool Screw
57WPL 4176183
58GEAR, WORM AND BRACKET
594160474 Whirlpool Control Shaft
609701105 Whirlpool Wire
61Lead, Circuit Breaker to Motor
