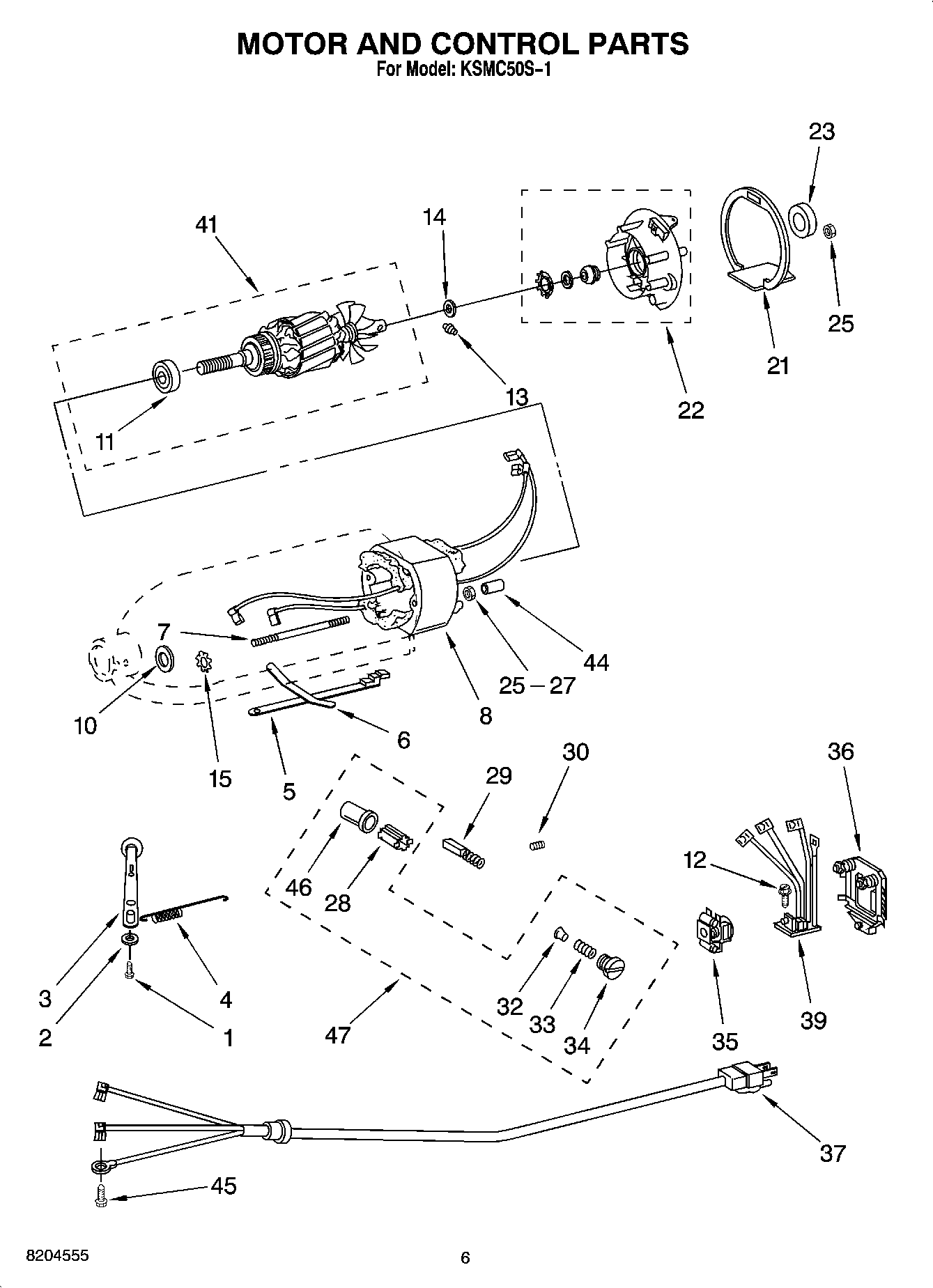

KSMC50S-1 04 – MOTOR AND CONTROL PARTS

Products

Position	Product
	5 Qt. Bowl, Polished Stainless Steel
	W11312468 Whirlpool Pour Shelf
	Speed Disc (Service Tool)
	W11200218 Whirlpool Grease Filter
1	WP110679 Whirlpool Screw
2	WP116241 Whirlpool Washer
3	WP9709276 Whirlpool Speed Control Lever
4	WP3183680 Whirlpool Spring
5	Speed Link & Cam
6	WP240205 Whirlpool Spring
7	W10851015 Whirlpool Stat Screw
8	W10870869 Whirlpool Field Assembly
10	WP9704324 Whirlpool Washer
11	Ball Bearing
12	W11084238 Whirlpool Screw Assembly
13	WP16998 Whirlpool Drive Stud
14	W11233557 Whirlpool Washer
15	W11170663 Whirlpool Washer
21	SEAL, END
22	WP3180526 Whirlpool Bearing Bracket
23	WASHER
25	8533905 Whirlpool Nut
27	Lock Washer No.10 Ext. Shake- proof
28	W11656718 Whirlpool Insert
29	WPW10380496 Whirlpool Stand Mixer Motor Brush
30	W11176201 Whirlpool Screw
32	WP116286 Whirlpool Spring Cap
33	WP116287 Whirlpool Spring Cap
34	WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
35	WPW10330804 Whirlpool Speed Governor
36	Control Plate Assembly
37	Cord & Plug (110 Volt) (KSMC50
39	WPW10325124 Whirlpool Phase Board
41	W11133634 Whirlpool Armature
44	W11210996 Whirlpool Sleeve
45	Screw
46	WP3179908 Whirlpool Brush Holder
47	4162546 Whirlpool Brush Holder
