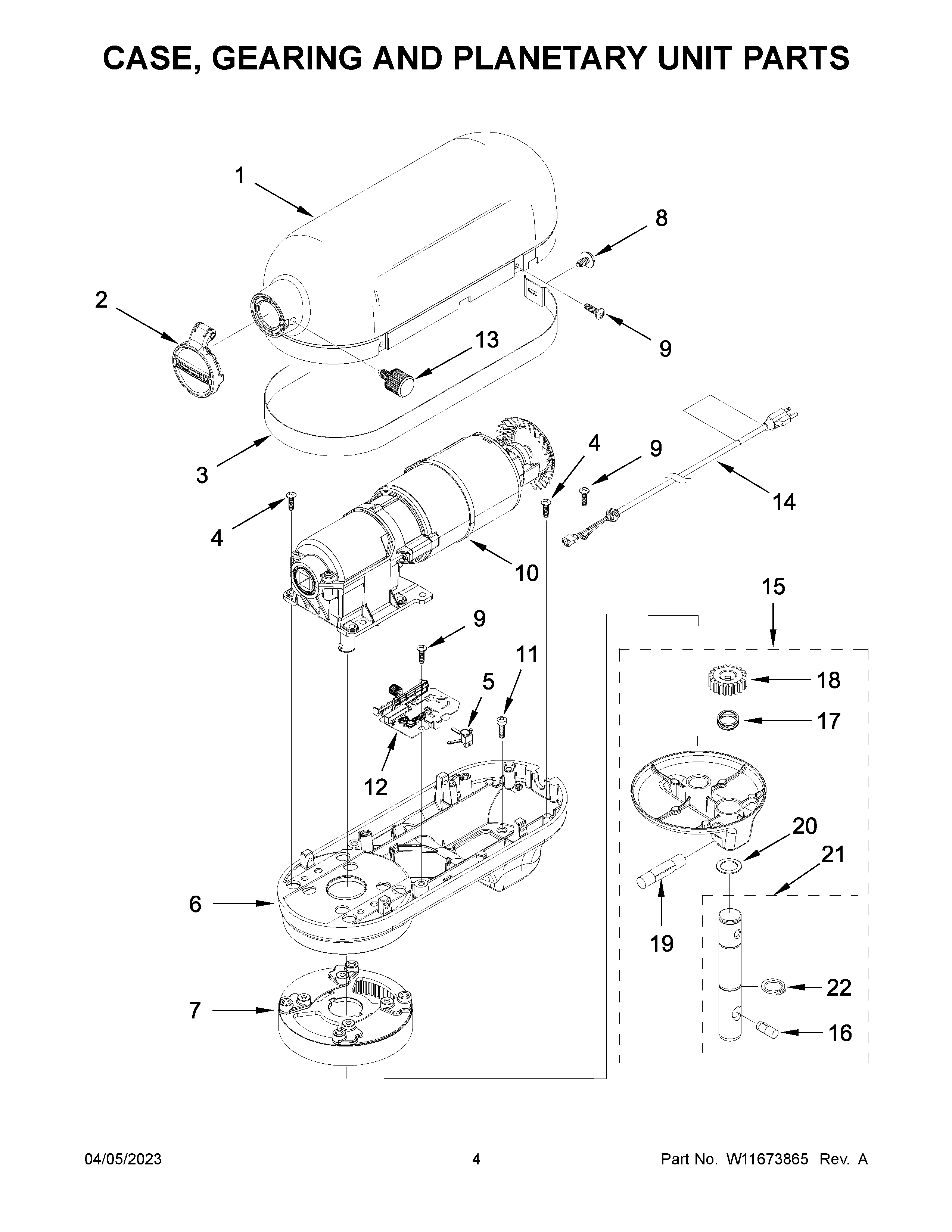

KSMC895ER1 03 – CASE, GEARING AND PLANETARY UNIT PARTS

KSMC895ER1 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Written by

in

KSMC895ER1 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

PositionProduct
2W11123129 Whirlpool Hubcap
4W10914506 Whirlpool Screw
5WPW10305968 Whirlpool Holder
7ASSEMBLY, RING GEAR AND PLATE
8W10853069 Whirlpool Screw
9WP3400814 Whirlpool Screw
10WPW10517938 Whirlpool Motor Assembly
11W10913677 Whirlpool Screw
12CONTROL, 120 VOLT
13WPW10360791 Whirlpool Screw
14W11199160 Whirlpool Stand Mixer Power Cord
15CABINET (NOT A SERVICEABLE PART)
16W11664709 Whirlpool Groove Pin
17W11649170 Whirlpool Washer
18GEAR, PINION
19WPW10234531 Whirlpool Dishwasher Groove Pin
20W10854966 Whirlpool Washer
21SHAFT, AGITATOR
22WP9703680 Whirlpool Retainer Ring
