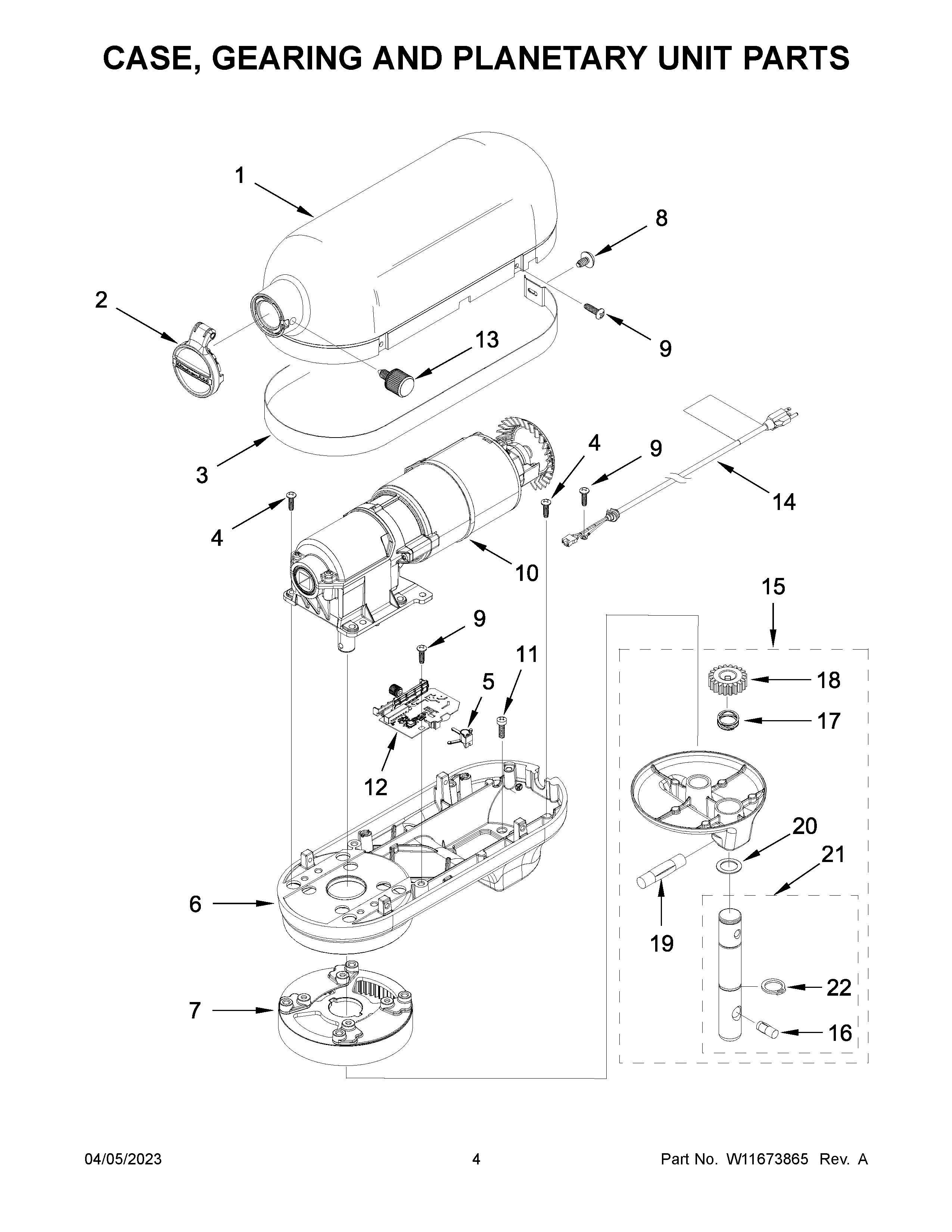

KSMC895NP1 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

Position	Product
2	W11123129 Whirlpool Hubcap
4	W10914506 Whirlpool Screw
5	WPW10305968 Whirlpool Holder
7	ASSEMBLY, RING GEAR AND PLATE
8	W10853069 Whirlpool Screw
9	WP3400814 Whirlpool Screw
10	WPW10517938 Whirlpool Motor Assembly
11	W10913677 Whirlpool Screw
12	CONTROL, 120 VOLT
13	WPW10360791 Whirlpool Screw
14	W11199160 Whirlpool Stand Mixer Power Cord
15	CABINET (NOT A SERVICEABLE PART)
16	W11664709 Whirlpool Groove Pin
17	W11649170 Whirlpool Washer
18	GEAR, PINION
19	WPW10234531 Whirlpool Dishwasher Groove Pin
20	W10854966 Whirlpool Washer
21	SHAFT, AGITATOR
22	WP9703680 Whirlpool Retainer Ring
