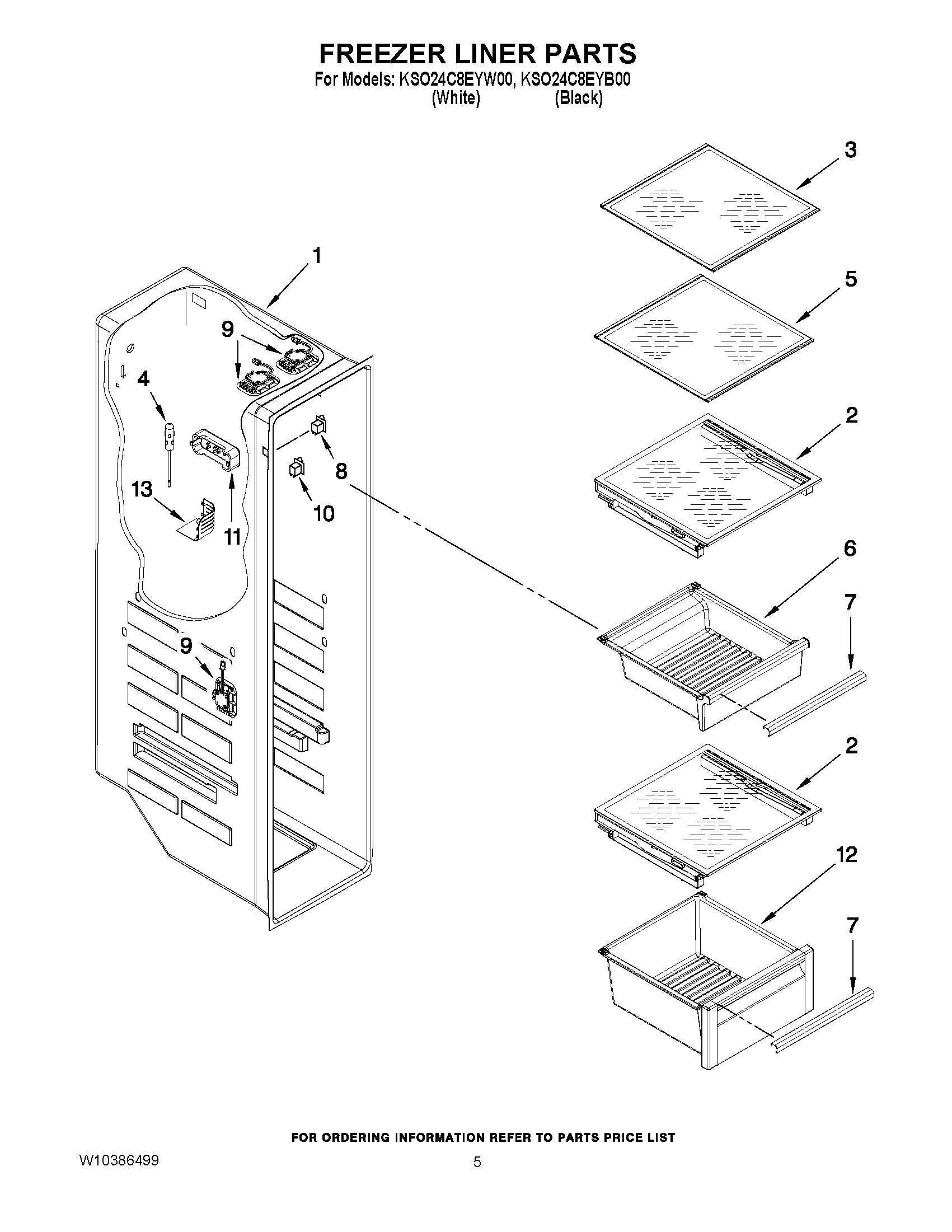

KSO24C8EYB00 04 – FREEZER LINER PARTS

KSO24C8EYB00 04 – FREEZER LINER PARTS

Written by

in

KSO24C8EYB00 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2COVER ASSY
3W11217335 Whirlpool Refrigerator Glass Shelf
4THERMISTOR
5W11217336 Whirlpool Refrigerator Glass Shelf
6PAN, FREEZER UPPER ALSO ORDER 7
7W10542018 Whirlpool Refrigerator Pan Trim
8W11123943 Whirlpool Refrigerator Switch
9MODULE
10W11457217 Whirlpool Refrigerator Rocker Switch Combination
11COVER, THERMISTOR
12PAN, FREEZER LOWER ALSO ORDER 7
13W10260382 Whirlpool Refrigerator Cover
