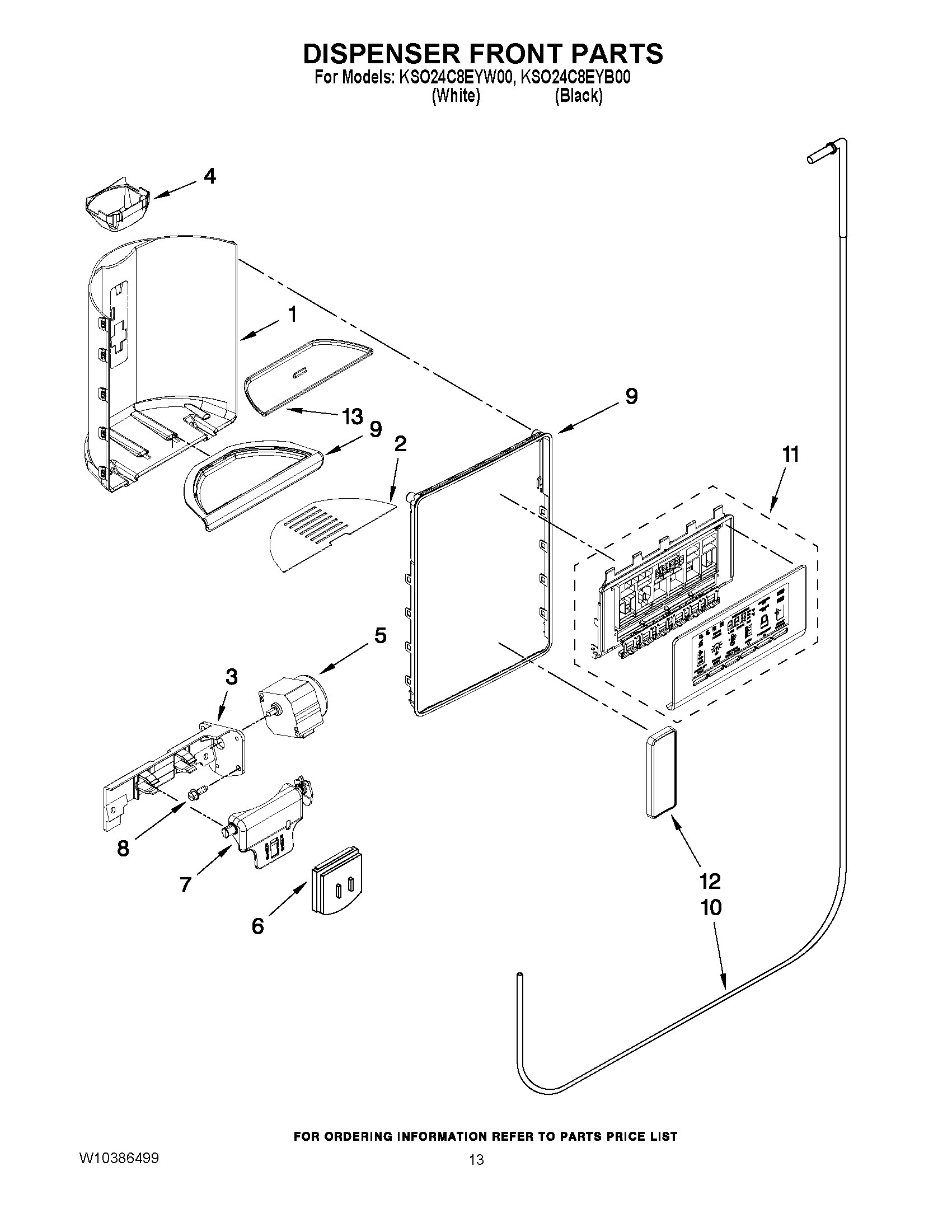

KSO24C8EYB00 08 – DISPENSER FRONT PARTS

KSO24C8EYB00 08 – DISPENSER FRONT PARTS

Written by

in

KSO24C8EYB00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10317270 Whirlpool Refrigerator Grille
3DOOR-ICE
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9W10317265 Whirlpool Refrigerator Drip Tray
9W10317264 Whirlpool Refrigerator Drip Tray
10WPW10279849 Whirlpool Refrigerator Water Tube
11WPW10393881-includeCORE Whirlpool WPW10393881 Refrigerator Electronic Control Board + Core
11ELECTRONIC CONTROL ASSY (BLACK)
12W11561037 Whirlpool Refrigerator Pad
12W10317250 Whirlpool Refrigerator Pad
13W10317274 Whirlpool Drip Tray
13W10317275 Whirlpool Refrigerator Drip Tray
