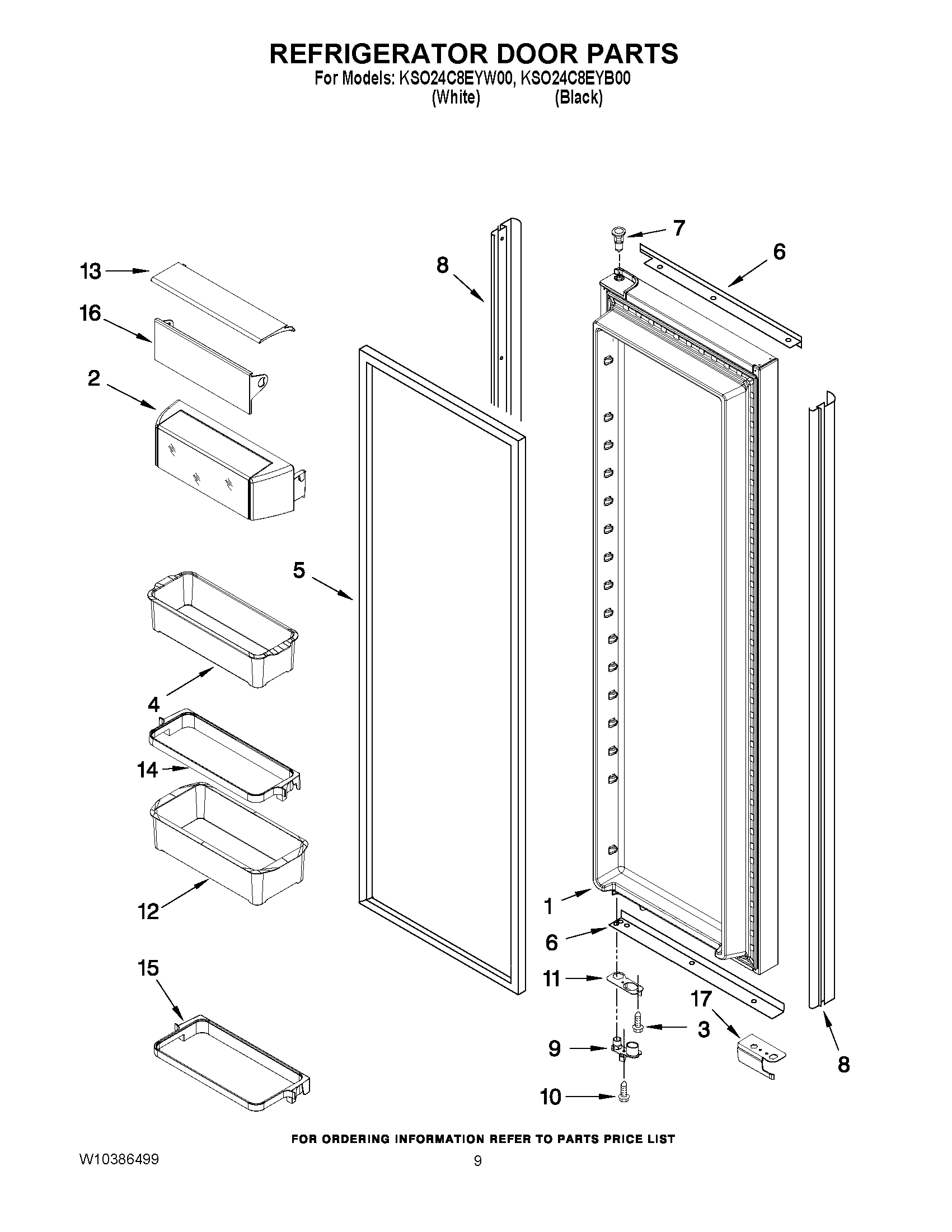

KSO24C8EYW00 06 – REFRIGERATOR DOOR PARTS

KSO24C8EYW00 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSO24C8EYW00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (WHITE)
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (BLACK)
2WPW10324760 Whirlpool Refrigerator Door Shelf Bin
3SCREW
4WPW10316461 Whirlpool Refrigerator Door Shelf Bin Clear
5WPW10249912 Whirlpool Refrigerator FIP Gasket
5WPW10247884 Whirlpool Refrigerator FIP Gasket
6TRIM-OVERLAY TOP & BOTTOM (WHITE)
6TRIM-OVERLAY TOP & BOTTOM (BLACK)
7WP2182181 Whirlpool Refrigerator Thimble
8TRIM-OVERLAY SIDES (BLACK)
8TRIM-OVERLAY SIDES (WHITE)
9WPW10257201 Whirlpool Door Closing Cam
9WPW10248011 Whirlpool Refrigerator Door Closing Cam White
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12WPW10316457 Whirlpool Refrigerator Gallon Door Bin
13WPW10316883 Whirlpool Refrigerator Door Compressor
14WPW10494333 Whirlpool Refrigerator Silver Door Bin Frame
15WPW10494334 Whirlpool Bin Frame
16WPW10316885 Whirlpool Refrigerator Compressor Door
17W10257216 Whirlpool Refrigerator Wire Cover
17W10789144 Whirlpool Refrigerator Wire Cover
