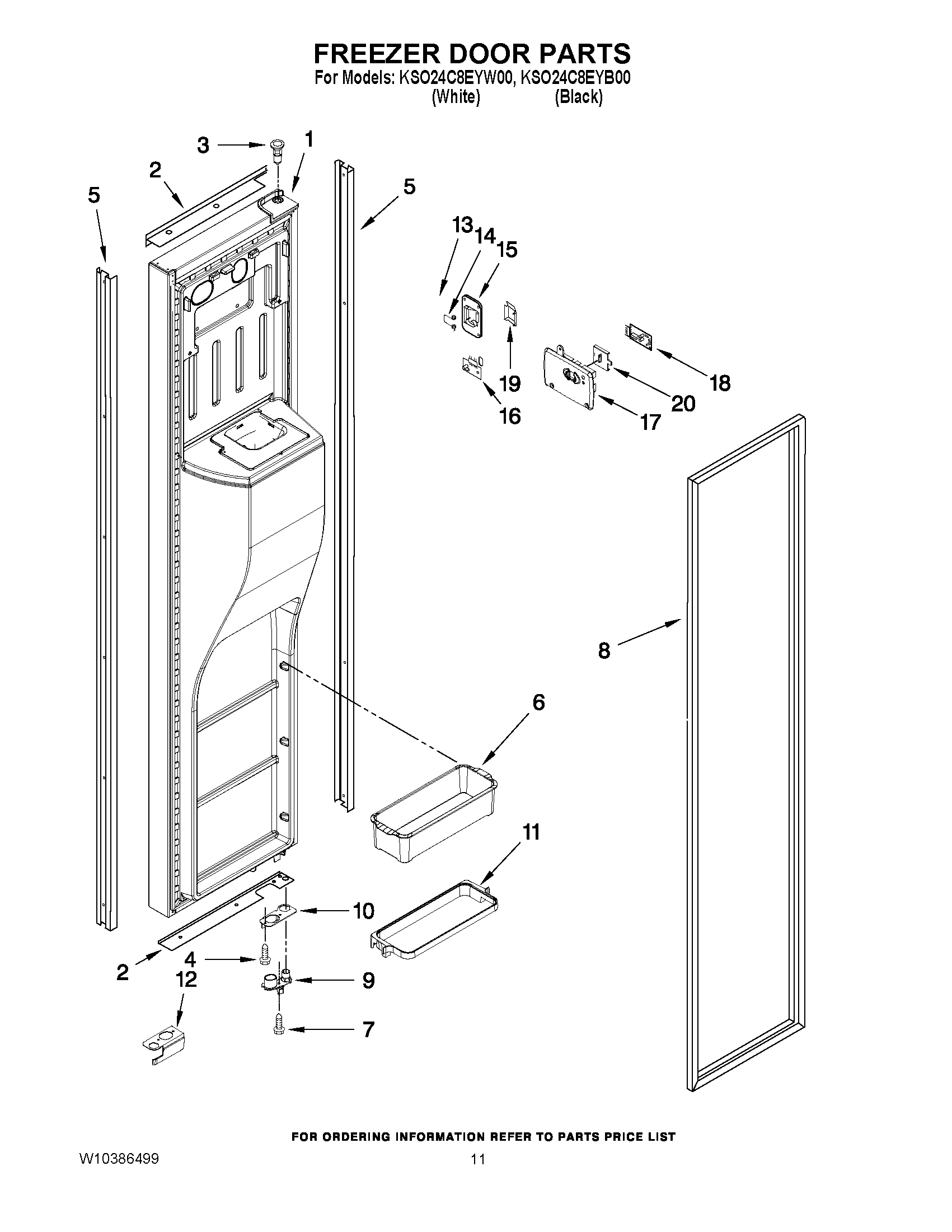

KSO24C8EYW00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
2TRIM-OVERLAY TOP & BOTTOM (BLACK)
2TRIM-OVERLAY TOP & BOTTOM (WHITE)
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5TRIM-OVERLAY SIDES (WHITE)
5TRIM-OVERLAY SIDES (BLACK)
6WPW10434529 Whirlpool Refrigerator Bin
7SCREW
8W11625001 Whirlpool Refrigerator FIP Gasket
8GASKET, DOOR (BLACK)
9W11607100 Whirlpool Refrigerator Thimble Cam
9WPW10248015 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11WPW10494336 Whirlpool Refrigerator Bin Frame
12W10632059 Whirlpool Refrigerator Wire Cover
12W10632060 Whirlpool Refrigerator Wire Cover
13WP2198634 Whirlpool Door Pin
14WP2198635 Whirlpool Refrigerator Spring
15W10258502 Whirlpool Refrigerator Cover
16W10870822 Whirlpool Refrigerator Electronic Control Board
17COVER, RECEIVER
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19FLIPPER
20W10258540 Whirlpool Refrigerator Slide
