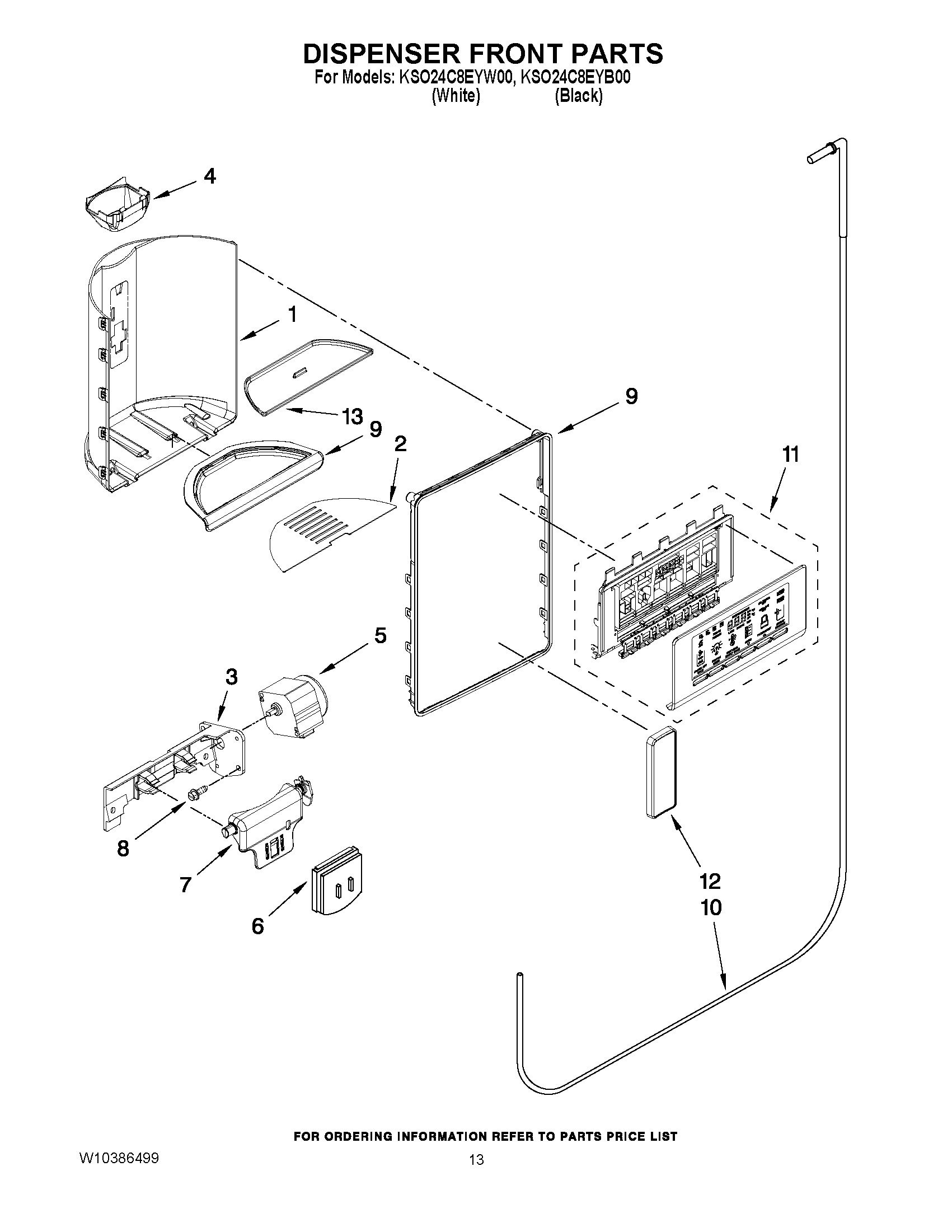

KSO24C8EYW00 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WPW10317270 Whirlpool Refrigerator Grille
3	DOOR-ICE
4	WPW10435760 Whirlpool Refrigerator Ice Guide
5	WPW10205978 Whirlpool Motor
7	WPW10346124 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	W10317265 Whirlpool Refrigerator Drip Tray
9	W10317264 Whirlpool Refrigerator Drip Tray
10	WPW10279849 Whirlpool Refrigerator Water Tube
11	WPW10393881-includeCORE Whirlpool WPW10393881 Refrigerator Electronic Control Board + Core
11	ELECTRONIC CONTROL ASSY (BLACK)
12	W11561037 Whirlpool Refrigerator Pad
12	W10317250 Whirlpool Refrigerator Pad
13	W10317274 Whirlpool Drip Tray
13	W10317275 Whirlpool Refrigerator Drip Tray
