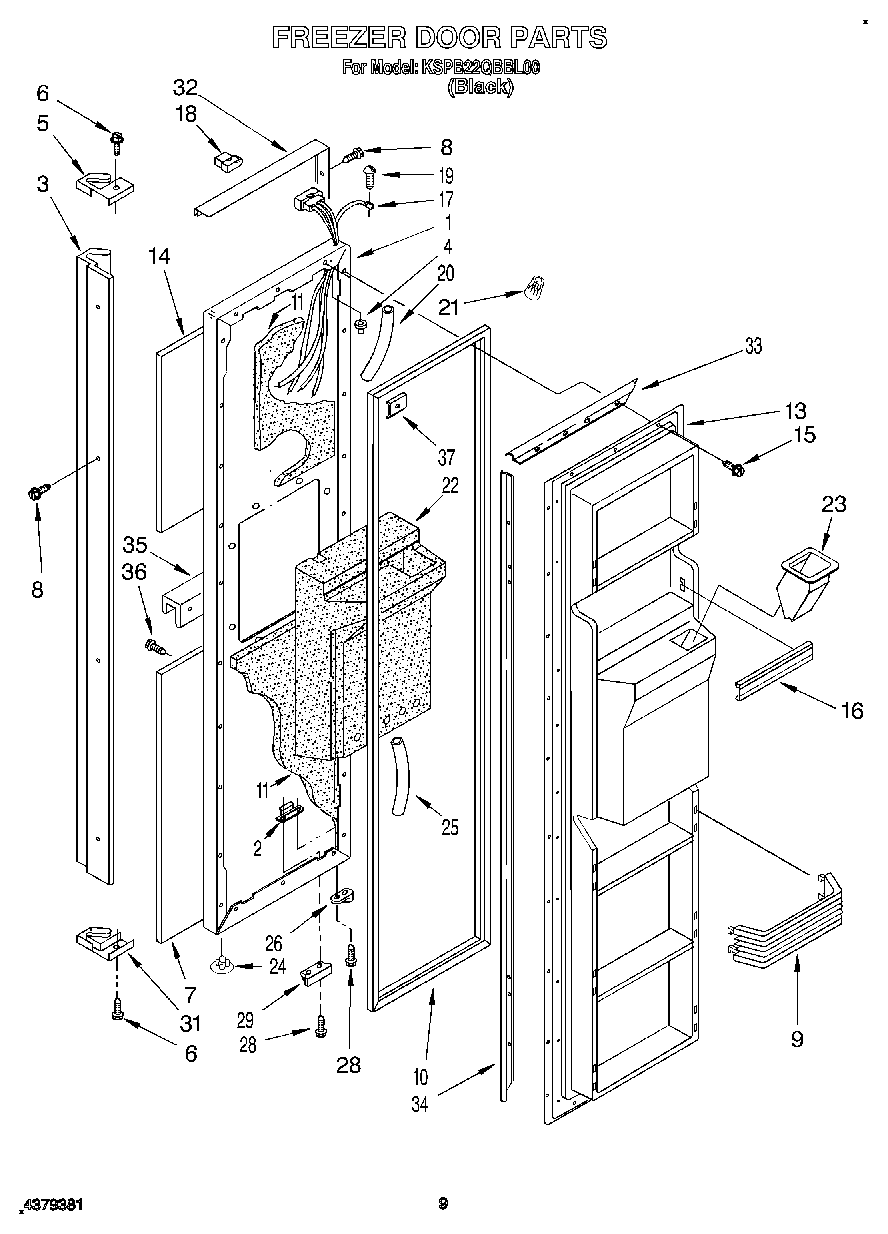

KSPB22QBBL00 06 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Also Order Item 11)
2Tap, Plate
3Handle
4Seal, Hinge Pin
5End Cap, Bottom
6Screw, 6-32 x 1/2
7Black Glass, Lower
8Screw (10)
9Shelf Bin (4)
102188405A Whirlpool Refrigerator Door Gasket
11WPL 876029
13Panel, Interior Door
14Black Glass, Upper
15WP489069 Whirlpool Compactor Screw
16Trim, Door Shelf
17Harness, Door (Includes Item 18)
18Connector, Plug
19WP488234 Whirlpool Air Conditioner Screw
20Tube, Door Wiring
21Wire Connector
22Insulation, Dispenser
23Chute, Ice
24Hole Plug (6) (Almond)
25Tube, Door Wiring
264318165 Whirlpool Refrigerator Door Closure Cam Kit
28WP999367 Whirlpool Refrigerator Screw
29Bracket, Door Stop (Black)
31End Cap, Top
32Trim, Door
33Retainer, Gasket
34Retainer, Gasket
35Trim, Dispenser
36Screw
37WP939101 Whirlpool Refrigerator Plate
