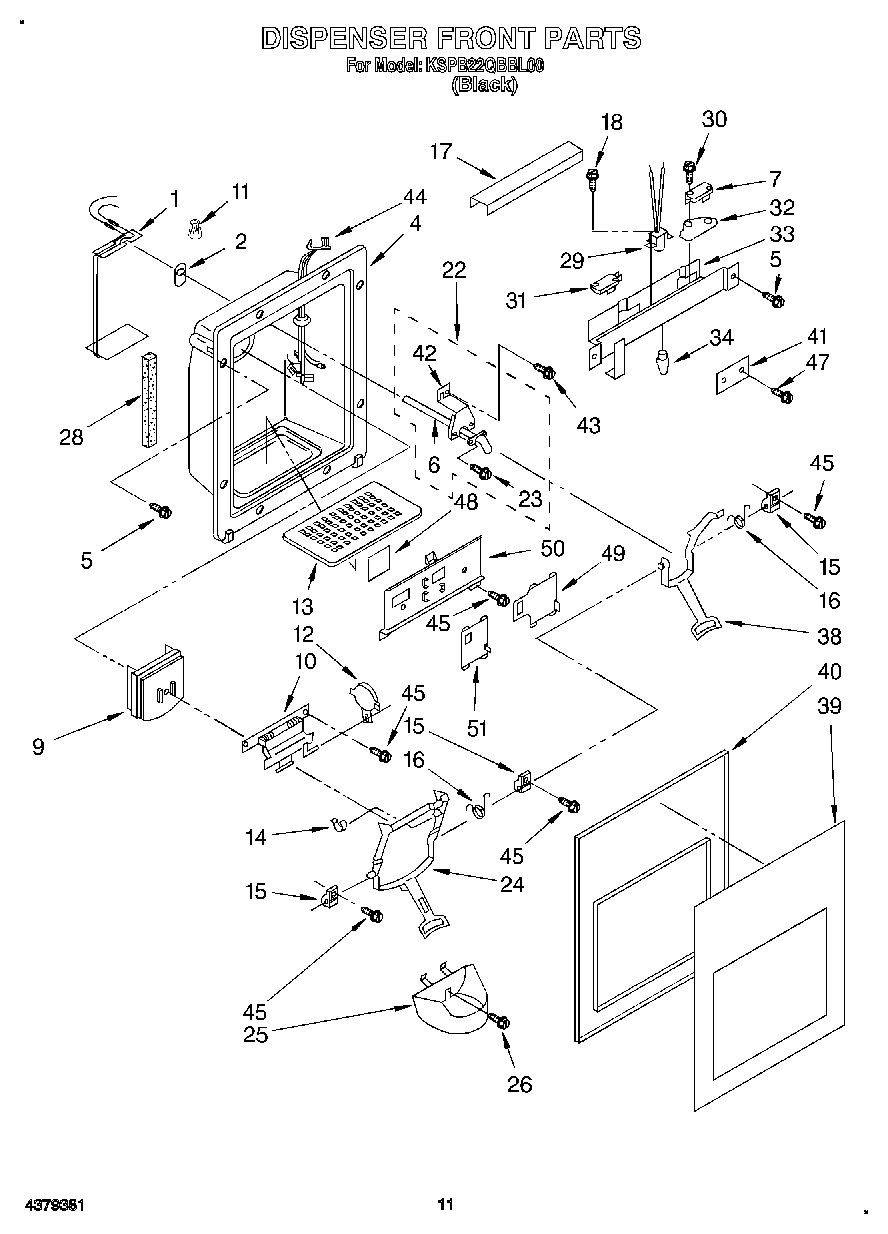

KSPB22QBBL00 07 – DISPENSER FRONT

Products

Position	Product
1	Heater, Dispenser
2	Grommet
4	Housing, Dispenser
5	W11693756 Whirlpool Screw Assembly
6	Tube, Water (See Item No.22)
7	WP2162361 Whirlpool Switch
9	Door, Ice
10	Door Mechanism Assembly (Includes Item 9)
11	Wire Connector
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
22	WP4388152 Whirlpool Refrigerator Fitting
23	WP965173 Whirlpool Dishwasher Screw
24	Lever Assembly, Ice Dispenser
25	Guide, Ice
26	Screw
28	Seal
29	Lamp Holder
30	Screw,
31	814037 Whirlpool Microwave Switch
32	Insulator, Control Bracket
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
38	Lever Assembly, Water Disp
39	WPL 1126178
40	WPL 1126172
41	Spacer, Switch (2)
42	Bracket, Water
43	Screw, 8-18 x 3/4
44	Wiring Harness, Door
45	WP3400906 Whirlpool Refrigerator Screw
47	Screw, 4-40 x 1
48	Heat Shield, Frame
49	Slide, Light Switch
50	Frame, Slides
51	Slide, Cube/Crush Switch
