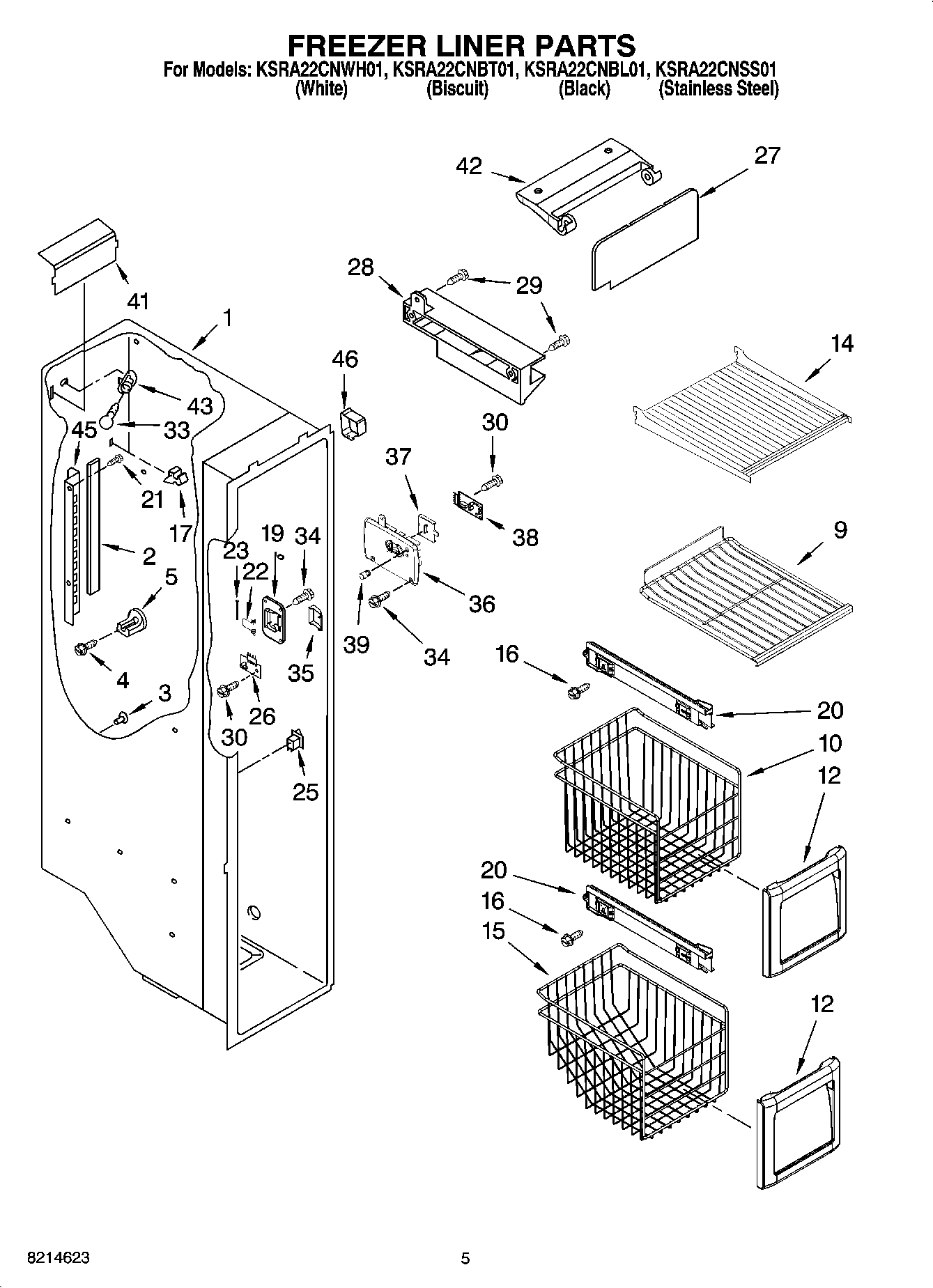

KSRA22CNSS01 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Gasket
3	Grommet
4	W10142289 Whirlpool Air Conditioner Screw
5	Stud, Rear
9	WP2174249K Whirlpool Refrigerator Wire Shelf
10	Basket, Deep
12	Basket Front
14	Shelf (2)
15	Basket, Sloped
16	Screw
17	2215823 Whirlpool Refrigerator Clip
19	WP2198587 Whirlpool Refrigerator Cover
20	Glide Assy, Basket (Right Side)
20	Glide Assy, Basket (Left Side)
22	WP2198635 Whirlpool Refrigerator Spring
23	WP2198634 Whirlpool Door Pin
25	W11457217 Whirlpool Refrigerator Rocker Switch Combination
26	W10757851-includeCORE Whirlpool Electronic Control+Core
27	Cover, Icemaker
28	Slide, Ice Maker
29	WP489478 Whirlpool Refrigerator Screw
30	2006254 Whirlpool Refrigerator Screw
33	RANGE ONLY 40W 120V APPL BULB
34	WPW10142283 Whirlpool Refrigerator Screw
35	WP2198633 Whirlpool Refrigerator Flipper
36	Cover, Receiver
37	Slide, Ice Maker Shut Off
39	WP2198643 Whirlpool Refrigerator Lens
41	2212376 Whirlpool Light Lens
42	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
43	SOCKET
45	Ladder (Left Side)
45	Ladder (Right Side)
46	Shield, Wiring
