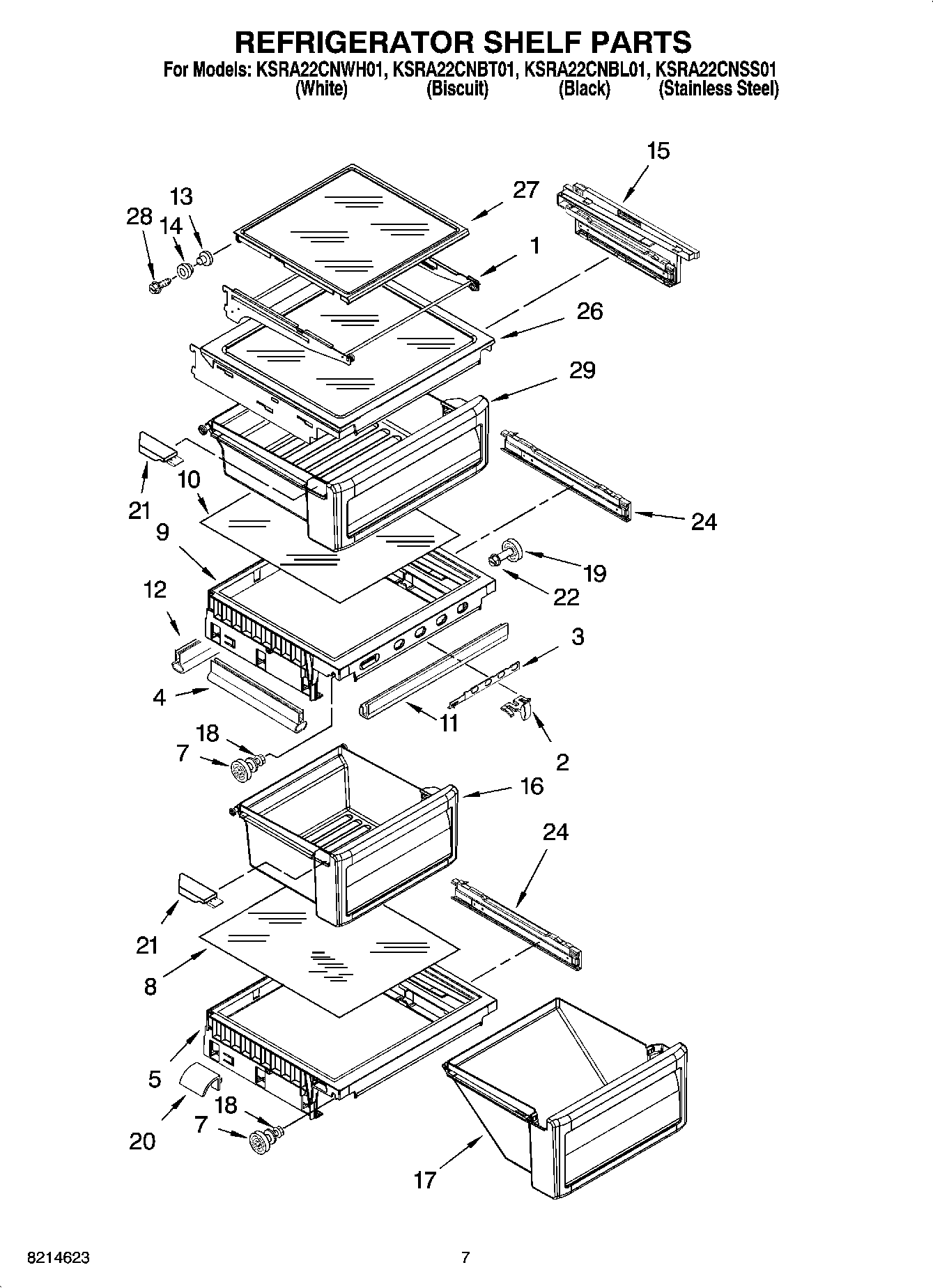

KSRA22CNSS01 05 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame Assembly
2	Knob, Humidity
3	2301026 Whirlpool Refrigerator Slide
4	2301117 Whirlpool Refrigerator Gasket
5	Cover, Meat Pan (Includes 20 & 24)
7	W11223328 Whirlpool Refrigerator Shelf Stud
8	Glass, Meat Pan Cover
9	Cover, Crisper (Includes 2, 3, 4,11,12 & 24)
10	Glass, Crisper Cover
11	WP1125528 Whirlpool Refrigerator Gasket
12	Gasket, Rear
13	Eyelet, Roller
14	Roller
15	Support Assembly (Left Side)
15	Support Assembly (Right Side)
16	W10916292 Whirlpool Refrigerator Crisper Pan
17	Meat Pan (Includes 21)
18	WP3-24004-109 Whirlpool Refrigerator Screw
19	WP2196483 Whirlpool Refrigerator Shelf Stud
20	Deflector
21	Cap, Crisper Pan (Left Side)
21	Cap, Crisper Pan (Right Side)
22	WP3400806 Whirlpool Screw
24	2301548 Whirlpool Refrigerator Glide
24	Glide Assm-Pan (Left Side)
26	Shelf Assembly
27	Shelf & Roller Assembly (2)
28	Screw
29	Snack Bin
