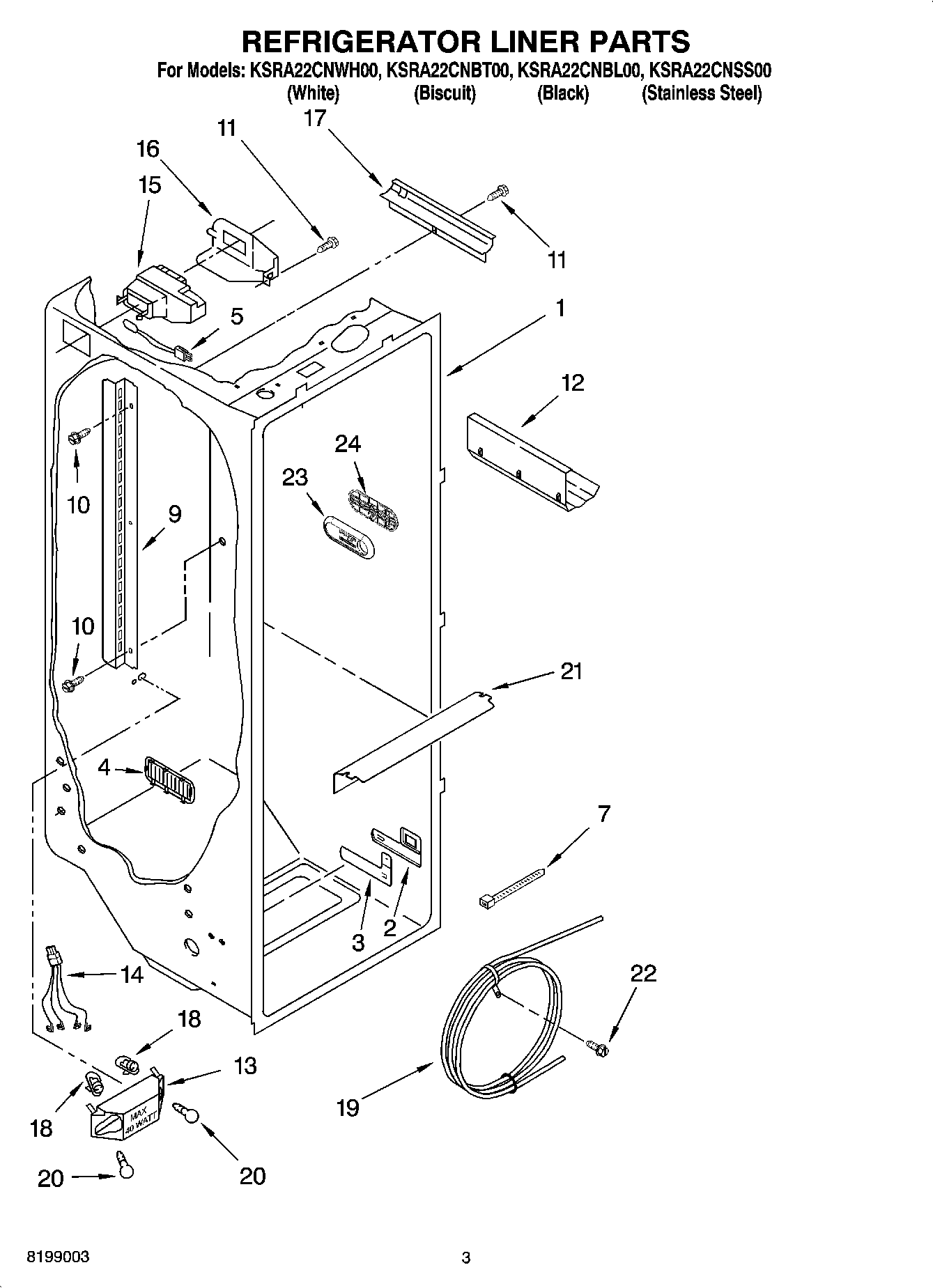

KSRA22CNWH00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	Slide Meat Pan Control
4	Louver
5	WP2188819 Whirlpool Thermistor
7	WPW10339879 Whirlpool Wire Tie
9	Shelf Ladder
10	WP488729 Whirlpool Refrigerator Door Screw
11	W10759522 Whirlpool Screw
12	W10777924 Whirlpool Refrigerator Wine Rack
13	Bracket, Dual Crisper Light
14	2311637 Whirlpool Refrigerator Wire Harness
15	WP2216112 Whirlpool Damper Control Assembly
16	WP2212240 Whirlpool Refrigerator Cover
17	2150331 Whirlpool Refrigerator Wire Cover
18	4387478 Whirlpool Refrigerator Light Socket
19	WP2256126 Whirlpool Refrigerator Reservoir
20	RANGE ONLY 40W 120V APPL BULB
21	Light Lens
22	Screw (2)
23	2301234 Whirlpool Refrigerator Control
24	Slide, Door Control
