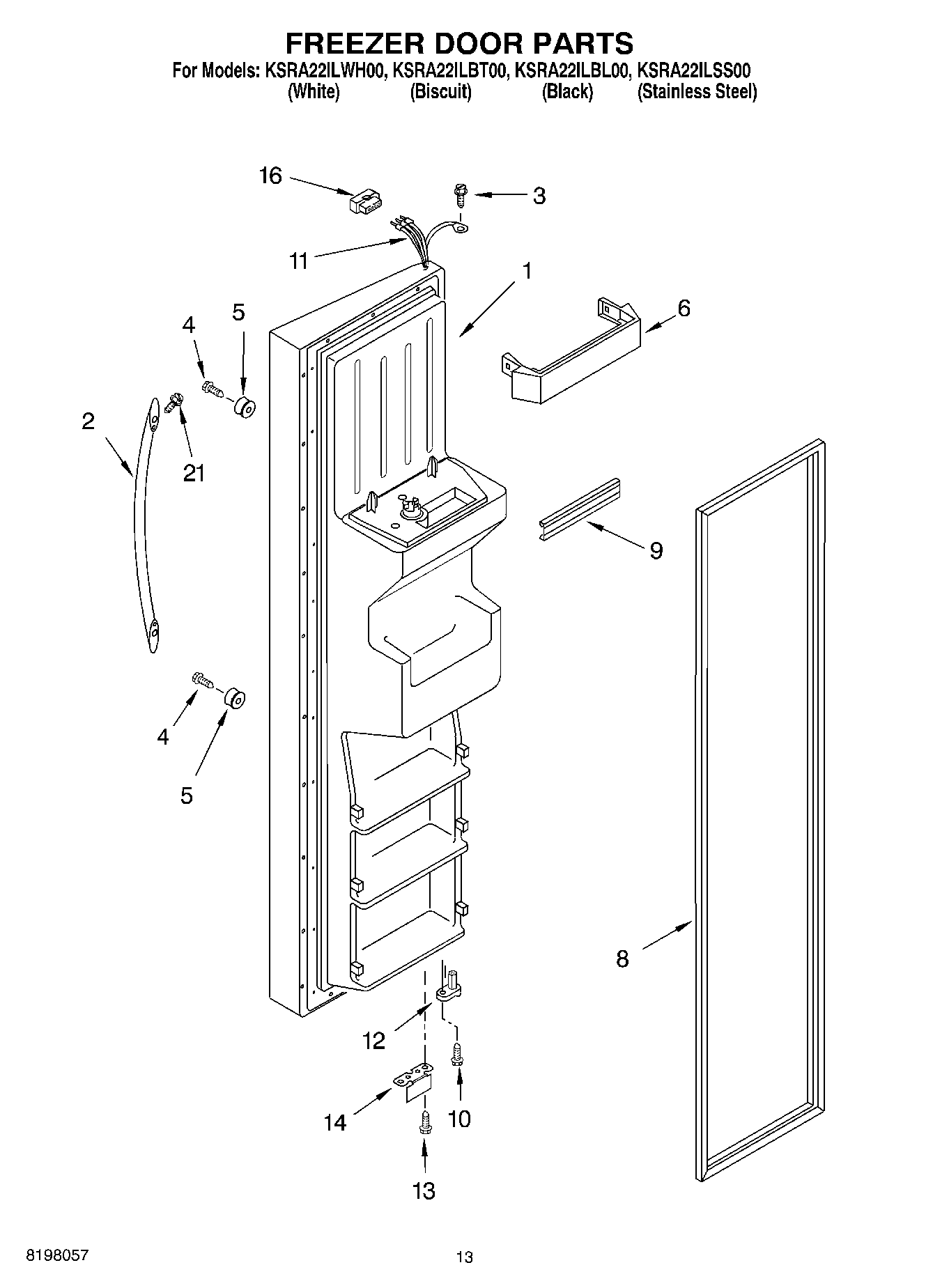

KSRA22ILSS00 08 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
2	Handle (Biscuit)
2	Handle (Stainless Steel)
2	Handle (Black)
2	Handle (White)
3	WP489128 Whirlpool Refrigerator Screw
4	WP489463 Whirlpool Refrigerator Screw
5	Stud, Handle
6	Trivet, Shelf (4)
8	2159080 Whirlpool Refrigerator Door Gasket
8	2159072 Whirlpool Refrigerator FIP Gasket
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP3400012 Whirlpool Refrigerator Screw
11	Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop
14	Bracket, Door Stop
16	WP2154473 Whirlpool Refrigerator Connector
21	Setscrew, 10-32
