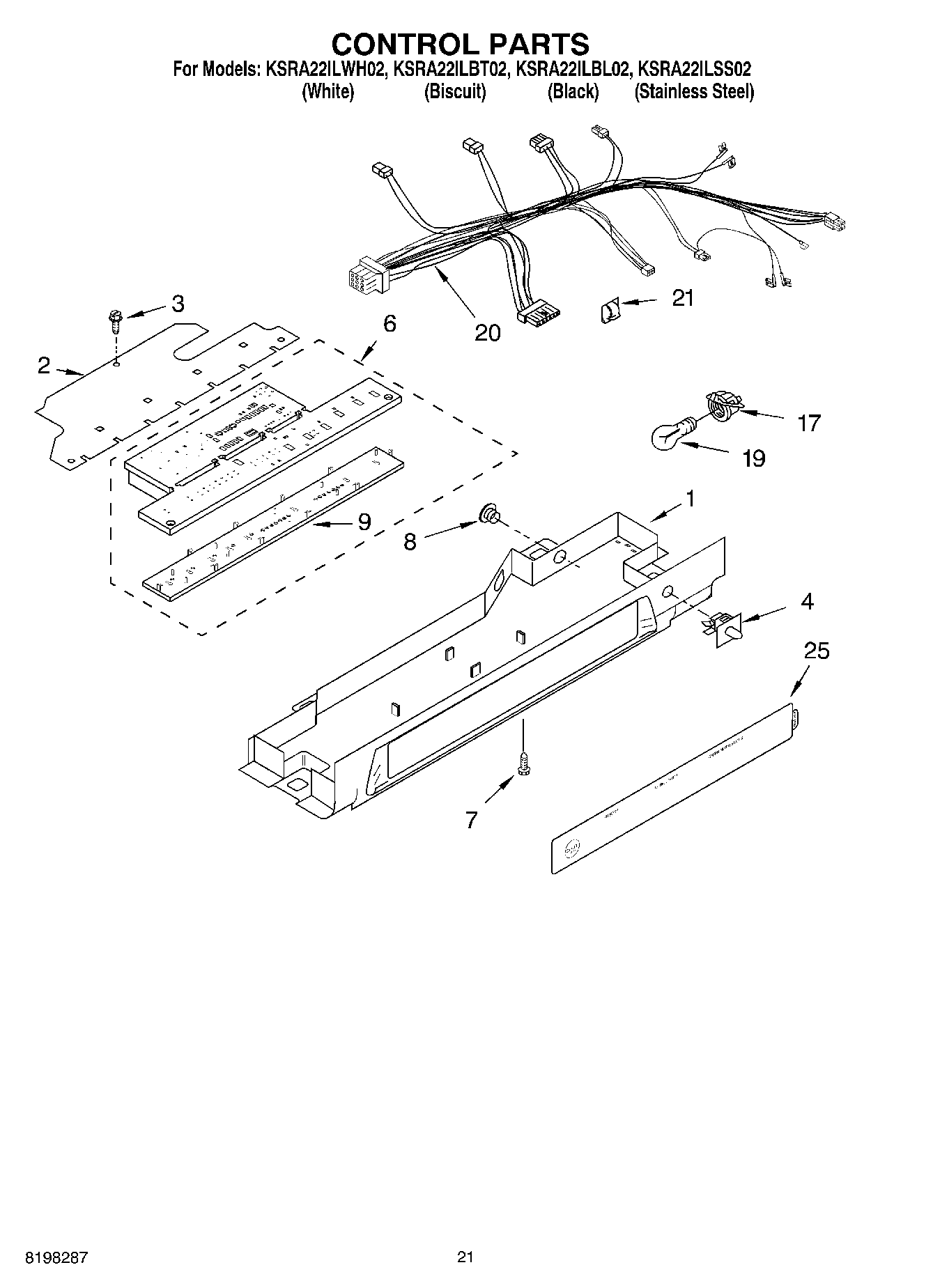

KSRA22ILSS02 12 – CONTROL PARTS, PARTS NOT ILLUSTRATED

Products

Position	Product
	WPL ARI92962A5
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	WPL 876029
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPW10312301 Whirlpool Refrigerator Ice Container
	Cleaner, Stainless Steel
	Ice Crusher Mechanism Assembly
	WPL ARI92963A8
	WPL ARI92959A3
	WPL ARI92960A9
	WPL ARI92961A1
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	WP505587 Whirlpool Refrigerator Sealer
	Almond (Uncut)
	212643 Whirlpool Refrigerator Permagum Sealer
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350956 Whirlpool Spray Assembly
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	876370 Whirlpool Refrigerator Insulation
	350930 Whirlpool White Spray Paint
	WP503695 Whirlpool Refrigerator Sealer
1	Control Box
2	Cover, Ctrl Box
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
6	Control Board
7	WP488488 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	Insert, Control Board
17	4387478 Whirlpool Refrigerator Light Socket
19	RANGE ONLY 40W 120V APPL BULB
20	Harness, Control Box
21	WP1115374 Whirlpool Refrigerator Clip
25	Overlay, Control Box
