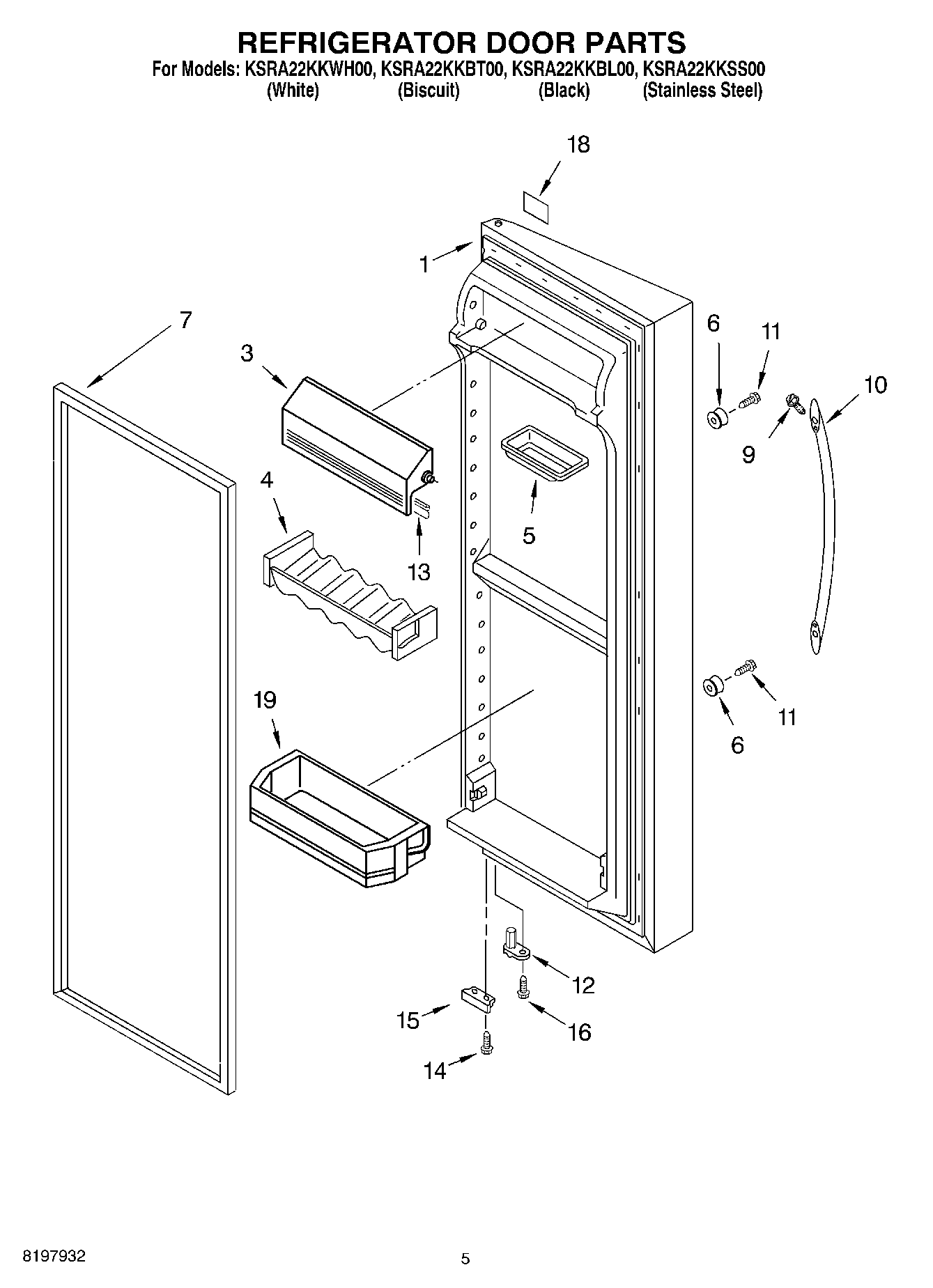

KSRA22KKBL00 04 – REFRIGERATOR DOOR

KSRA22KKBL00 04 – REFRIGERATOR DOOR

Written by

in

KSRA22KKBL00 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item 8) (White)
1Refrigerator Door (Includes Item 8) (Biscuit)
1Refrigerator Door (Includes Item 8) (Stainless)
1Refrigerator Door (Includes Item 8) (Black)
3WP2313637 Whirlpool Cutting Grid Assembly
4Beverage Holder
5Butter Tray
6Stud, Handle
72159073 Whirlpool Refrigerator Door Gasket
72159081 Whirlpool Refrigerator Door Gasket
9Setscrew, 10-32
10Handle (Stainless Steel)
10Handle (Black)
10Handle (Biscuit)
10Handle (White)
11WP489463 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13Gasket, Door Compartment
14WP489483 Whirlpool Screw
15Bracket, Door Stop
15Bracket, Door Stop
16WP3400012 Whirlpool Refrigerator Screw
18Nameplate (Biscuit)
18Nameplate (White)
18Nameplate (Black)
19Shelf Bin (3)
