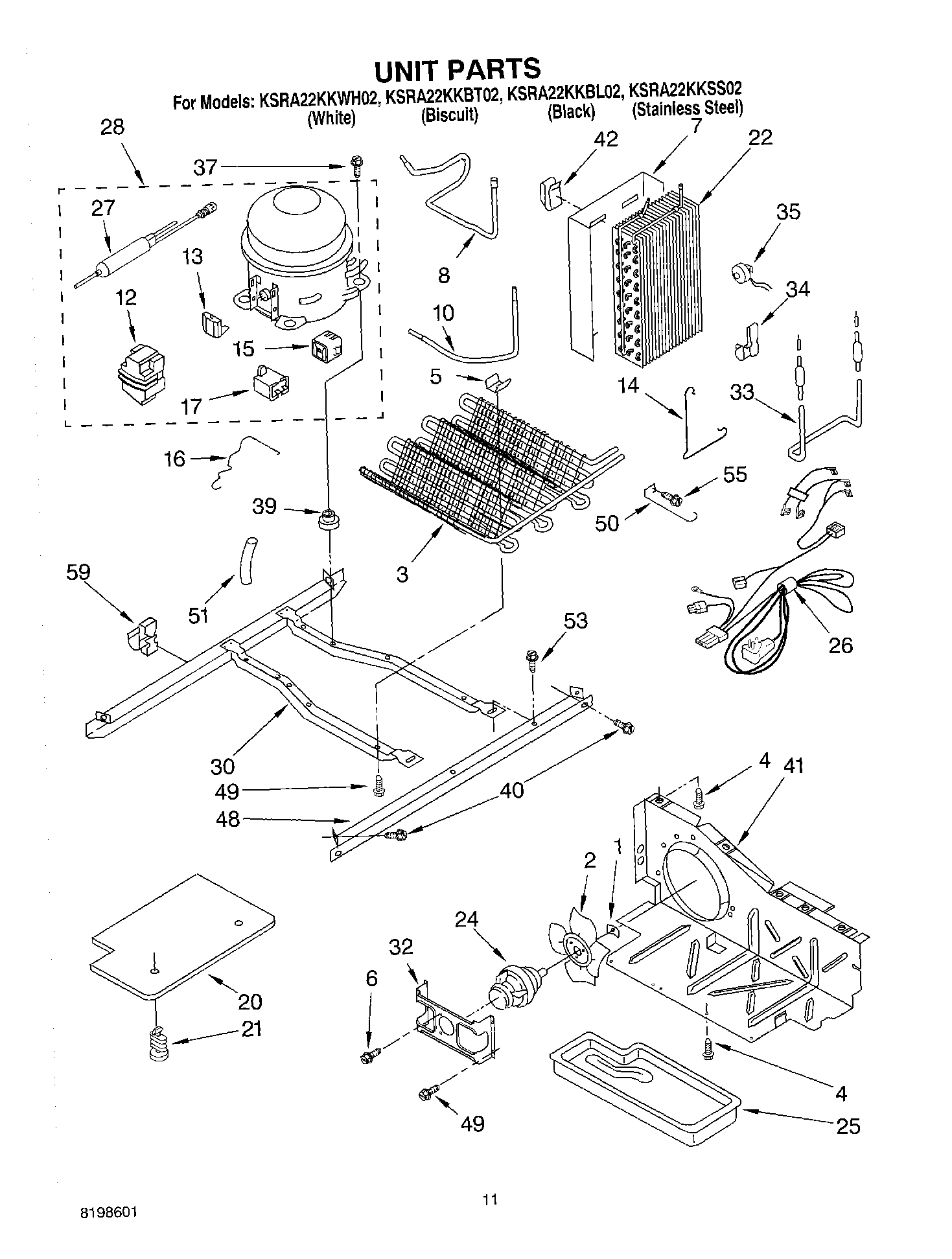

KSRA22KKBL02 08 – UNIT PARTSadmin2025-04-26T11:28:23+00:00KSRA22KKBL02 08 – UNIT PARTS ProductsPositionProduct1WP486692 Whirlpool Refrigerator Nut2Blade, Fan3Condenser Assembly4WP489464 Whirlpool Refrigerator Screw5W10683556 Whirlpool Refrigerator Clip6681390 Whirlpool Refrigerator Screw7Heat Shield And Drain Pan82205764 Whirlpool Refrigerator Tube10Tube, Condenser to Heat Loop12WP2162358 Whirlpool Refrigerator Terminal Cover13OVERLOAD14Clamp158201786 Whirlpool Relay and Overload Start Kit162223314 Whirlpool Refrigerator Clip17WP4387764 Whirlpool Run Capacitor17WPW10662129 Whirlpool Refrigerator Run Capacitor20Unit Cover, Bottom21489396 Whirlpool Refrigerator Clip22WP2188822 Whirlpool Refrigerator Evaporator24W10822259 Whirlpool Refrigerator Condenser Fan Motor25WPW10614158 Whirlpool Refrigerator Evaporator Tray264389202 Whirlpool Wire Harness27W10843121 Whirlpool Refrigerator Tube28W10309990 Whirlpool Refrigerator Compressor302304903 Whirlpool Refrigerator Frame32WP2181929 Whirlpool Refrigerator Bracket33WP2323197 Whirlpool Refrigerator Heater34Clip35WPW10225581 Whirlpool Refrigerator Defrost Thermostat39WP4387558 Whirlpool Refrigerator Compressor Grommet39876811 Whirlpool Grommet40489340 Whirlpool Refrigerator Screw41W10896764 Whirlpool Refrigerator Air Baffle42Clip, Heat Shield48Unit Mounting Rail49W11544659 Whirlpool Refrigerator Screw501105612 Whirlpool Fan Guard51SLEEVE53WP489427 Whirlpool Refrigerator Screw55WP489478 Whirlpool Refrigerator Screw59VALVE, ACCESS (1/2``)59and Optional Parts Not Included59FOLLOWING PARTS NOT ILLUSTRATED59978030 Whirlpool Refrigerator Valve59VALVE, ACCESS (5/8``)59WP978025 Whirlpool Refrigerator Valve59978027 Whirlpool Refrigerator Primary Valve59Clip, Wire & Tube59876764 Whirlpool Refrigerator Primary Valve59978026 Whirlpool Refrigerator Primary Valve59REFRIGERANT CHARGE 5.0 oz. (R-134A)
