KSRA22KKSS01 09 – CONTROL, OPTIONAL

KSRA22KKSS01 09 – CONTROL, OPTIONAL

Written by

in

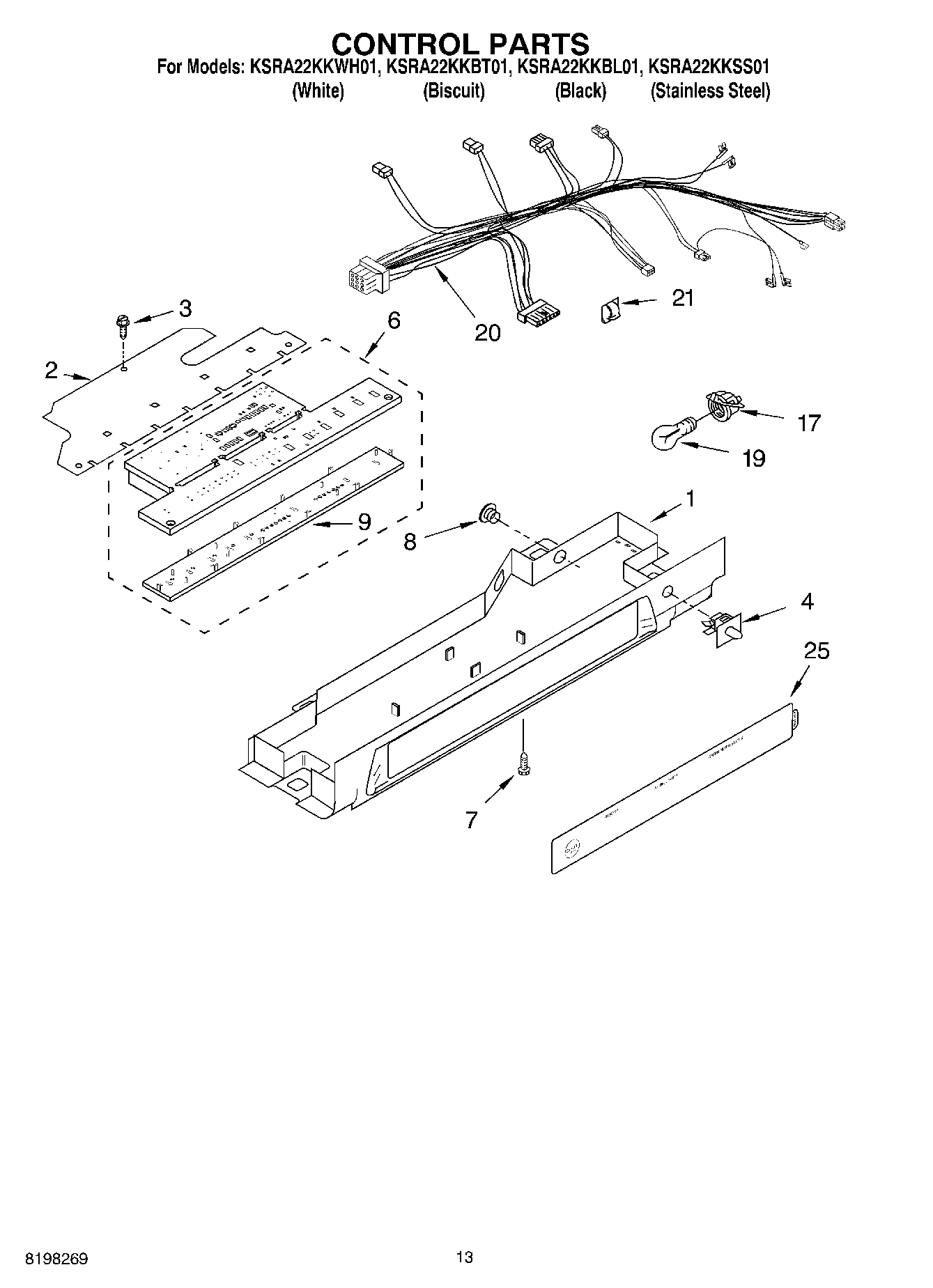

KSRA22KKSS01 09 – CONTROL, OPTIONAL

Products

PositionProduct
1Control Box
2Cover, Ctrl Box
3WP3196557 Whirlpool Screw
4WP2149705 Whirlpool Refrigerator Door Switch
6Control Board
7WP488488 Whirlpool Refrigerator Screw
8940014 Whirlpool Refrigerator Primary Button Plug
9Insert, Control Board
174387478 Whirlpool Refrigerator Light Socket
19RANGE ONLY 40W 120V APPL BULB
20Harness, Control Box
21WP1115374 Whirlpool Refrigerator Clip
25WPL 799833
25WPL 876029
25W11729596 Whirlpool Ice Maker Field Install Kit
25285006 Whirlpool Spray
2572032 Whirlpool Touch Up Paint Black
25350930 Whirlpool White Spray Paint
25Enamel, Black (1 Qt. Uncut)
25CEMENT, ALUMILASTIC (1 1/4 OZ.)
25TAPE, VINYL (3/4 X 108“)
25350956 Whirlpool Spray Assembly
2572017 Whirlpool Appliance Touch-Up Paint White
25799344 Whirlpool Refrigerator Paint
25WP72107 Whirlpool Touchup
25Almond (Uncut)
25212643 Whirlpool Refrigerator Permagum Sealer
25350942 Whirlpool Spray Paint
25511873 Whirlpool Refrigerator Paint
25606755 Whirlpool Refrigerator Bag
25833938 Whirlpool Refrigerator Terminal
25876370 Whirlpool Refrigerator Insulation
25WP503695 Whirlpool Refrigerator Sealer
25WP505587 Whirlpool Refrigerator Sealer
25WP542638 Whirlpool Refrigerator Grease
25Torx Key
25Overlay, Control Box
