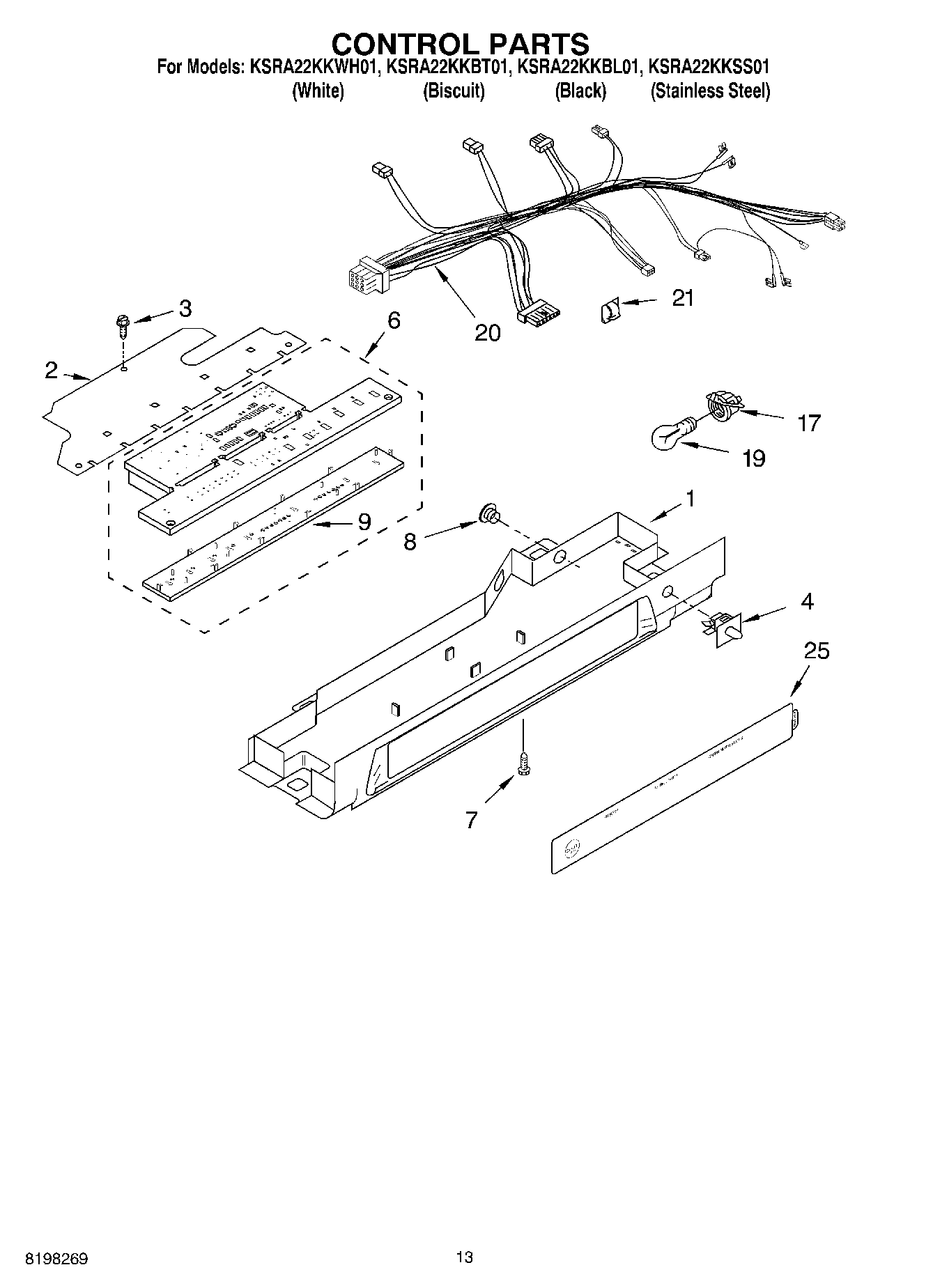

KSRA22KKWH01 09 – CONTROL, OPTIONAL

Products

Position	Product
1	Control Box
2	Cover, Ctrl Box
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
6	Control Board
7	WP488488 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	Insert, Control Board
17	4387478 Whirlpool Refrigerator Light Socket
19	RANGE ONLY 40W 120V APPL BULB
20	Harness, Control Box
21	WP1115374 Whirlpool Refrigerator Clip
25	WPL 799833
25	WPL 876029
25	W11729596 Whirlpool Ice Maker Field Install Kit
25	285006 Whirlpool Spray
25	72032 Whirlpool Touch Up Paint Black
25	350930 Whirlpool White Spray Paint
25	Enamel, Black (1 Qt. Uncut)
25	CEMENT, ALUMILASTIC (1 1/4 OZ.)
25	TAPE, VINYL (3/4 X 108``)
25	350956 Whirlpool Spray Assembly
25	72017 Whirlpool Appliance Touch-Up Paint White
25	799344 Whirlpool Refrigerator Paint
25	WP72107 Whirlpool Touchup
25	Almond (Uncut)
25	212643 Whirlpool Refrigerator Permagum Sealer
25	350942 Whirlpool Spray Paint
25	511873 Whirlpool Refrigerator Paint
25	606755 Whirlpool Refrigerator Bag
25	833938 Whirlpool Refrigerator Terminal
25	876370 Whirlpool Refrigerator Insulation
25	WP503695 Whirlpool Refrigerator Sealer
25	WP505587 Whirlpool Refrigerator Sealer
25	WP542638 Whirlpool Refrigerator Grease
25	Torx Key
25	Overlay, Control Box
